Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 8, 2019, 08:30 AM

  • Section#2_A 0523_A 0522__182019__I0084.mp4

Date
01/08/2019
W/O
0743424
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00315
PipeID
P20205
Time
12:30 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0084
Sewer Name
A JOA-1A DISTRICT 5 INTERCEPTOR
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
20
Purpose
Capital Improvement Program Assesment
Project
20190108MDM_JOA_1A_DISTRICT_5_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Rectangular
Height
0 in.
Upstream MH
A 0523
Downstream MH
A 0522
Dir. of Survey
Downstream
Length Surveyed
9.8 ft.
Total Length
9.8 ft.
Structural Index
4
Structural Quick
4500
Structural Rating
20
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
4
Overall Quick
—
Overall Rating
25
Pipe schematic from manhole A 0523 to A 0522
MH: A 0523MH: A 0522downstream0 ft. AMH - Upstream Manhole, Survey Begins - 1:00AM0 ft. MWL - Water Level, 80 %of cross sectional area0 ft. MWM - Water Mark, 80 %of cross sectional area2 ft. SAM - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG4.1 ft. SAM - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG4.2 ft. SAM - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG8 ft. SAM - Surface Aggregate Missing, from 12 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG9.3 ft. SAM - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG9.8 ft. AMH - Downstream Manhole, Survey Ends - 1:10AM

Observation photos (4)

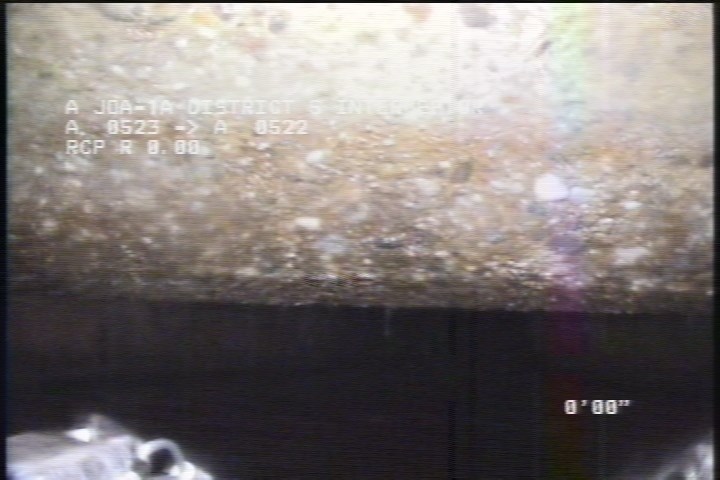

  • Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

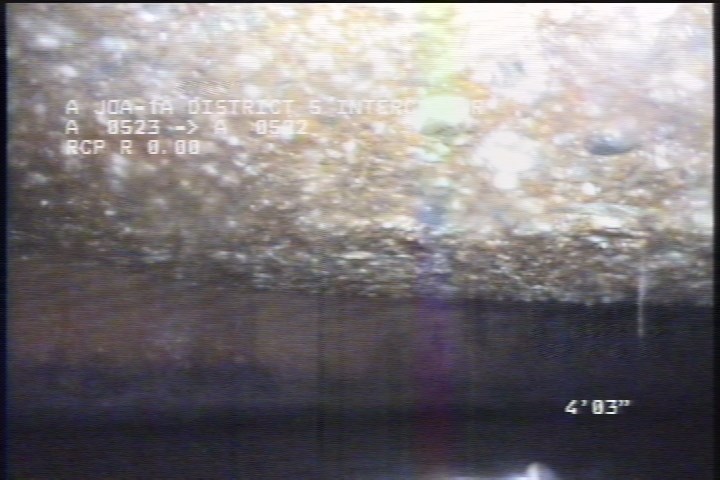

  • Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG

    4.1 ft. - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG

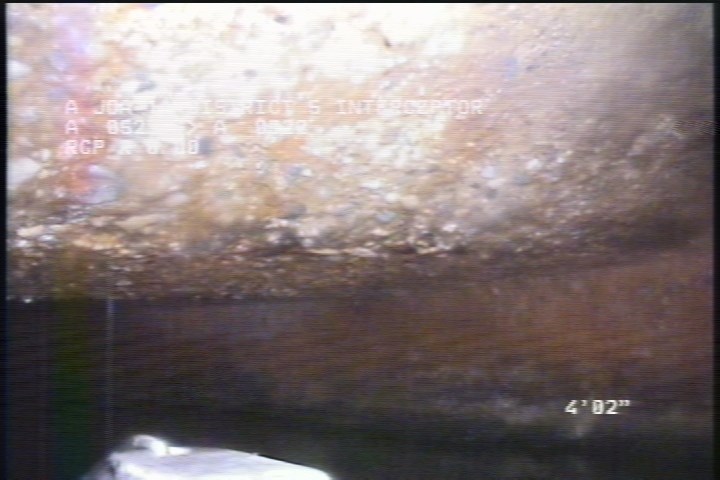

  • Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG

    4.2 ft. - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG

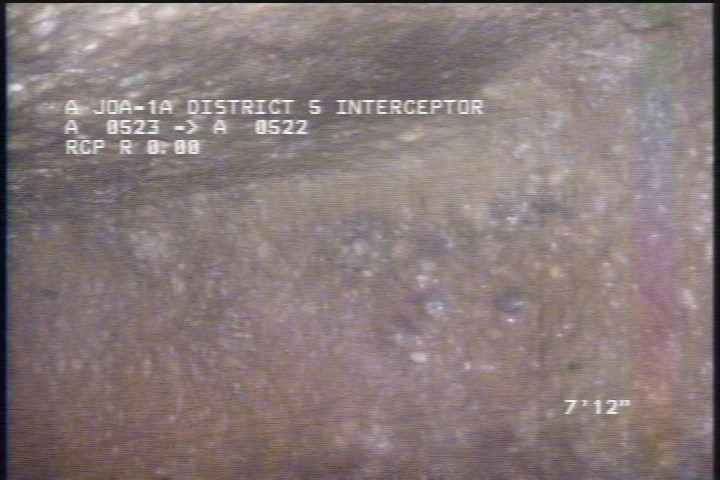

  • Surface Aggregate Missing, from 12 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG

    8 ft. - Surface Aggregate Missing, from 12 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG

All inspections of P20205Work order 0743424

Observations (9)

DistanceCodeObservation
9.3SAMSEVERE AGG
8SAMSEVERE AGG
4.2SAMSEVERE AGG
2SAMSEVERE AGG
4.1SAMSEVERE AGG
0AMH1:00AM
0MWL—
0MWM—
9.8AMH1:10AM

Properties (4)

custom_field_three
SEVERE AGG MISSING
custom_field_two
3
customer
LACSD
datetime
2019-01-08T00:30:07-08:00
