Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 8, 2019, 08:21 AM

  • Section#1_A 0525_A 0524__182019__I0084.mp4

Date
01/08/2019
W/O
0743424
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00315
PipeID
P20206
Time
12:21 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0084
Sewer Name
A JOA-1A DISTRICT 5 INTERCEPTOR
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
20
Purpose
Capital Improvement Program Assesment
Project
20190108MDM_JOA_1A_DISTRICT_5_INTERCEPTOR
Material
Reinforced Concrete Pipe
Shape
Rectangular
Height
0 in.
Upstream MH
A 0525
Downstream MH
A 0524
Dir. of Survey
Downstream
Length Surveyed
10.6 ft.
Total Length
10.6 ft.
Structural Index
4
Structural Quick
4400
Structural Rating
16
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
4
Overall Quick
—
Overall Rating
21
Pipe schematic from manhole A 0525 to A 0524
MH: A 0525MH: A 0524downstream0 ft. MWM - Water Mark, 80 %of cross sectional area0 ft. MWL - Water Level, 80 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:30AM2 ft. SAM - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG4 ft. SAM - Surface Aggregate Missing, from 12 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG4 ft. SAM - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG10.1 ft. SAM - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG10.6 ft. AMH - Downstream Manhole, Survey Begins - 12:40AM

Observation photos (3)

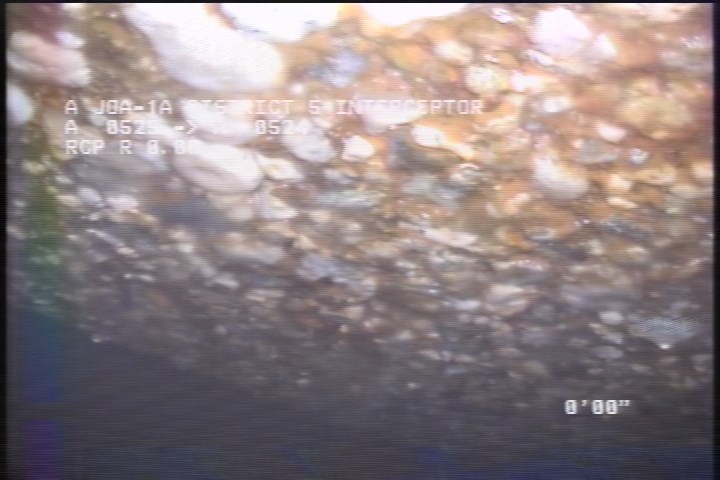

  • Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

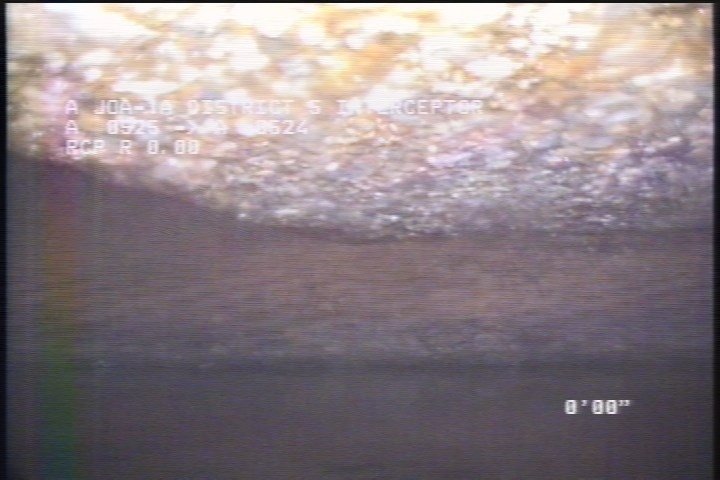

  • Surface Aggregate Missing, from 12 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG

    4 ft. - Surface Aggregate Missing, from 12 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG

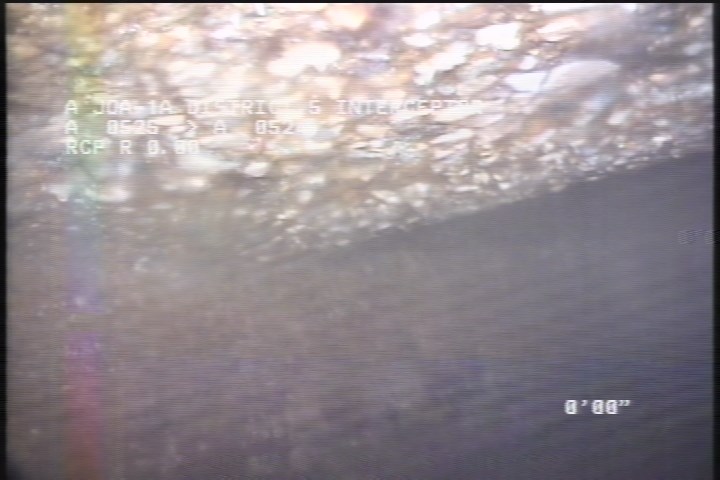

  • Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG

    4 ft. - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG

All inspections of P20206Work order 0743424

Observations (8)

DistanceCodeObservation
2SAMSEVERE AGG
10.6AMH12:40AM
4SAMSEVERE AGG
10.1SAMSEVERE AGG
4SAMSEVERE AGG
0MWM—
0MWL—
0AMH12:30AM

Properties (4)

custom_field_three
SEVERE AGG MISSING
custom_field_two
3
customer
LACSD
datetime
2019-01-08T00:21:06-08:00
