Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 5, 2019, 02:20 PM

  • C 0166_C 0165_152019_063841.mp4

Date
01/05/2019
W/O
0738705
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00129
PipeID
P09679
Time
6:20 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7887
Sewer Name
C JOINT OUTFALL C - UNIT 5B
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
10
Purpose
Maintenance Related
Project
20190105DF_JOINT_OUTFALL_C_UNIT_5B
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Upstream MH
C 0165
Downstream MH
C 0166
Dir. of Survey
Upstream
Length Surveyed
408.9 ft.
Total Length
408.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole C 0165 to C 0166
MH: C 0165MH: C 0166upstream0 ft. MGP - General Photograph15.6 ft. MGP - General Photograph89.9 ft. MGP - General Photograph149.6 ft. MGP - General Photograph408.9 ft. AMH - Upstream Manhole, Survey Begins - 6:28 AM

Observation photos (4)

  • General Photograph

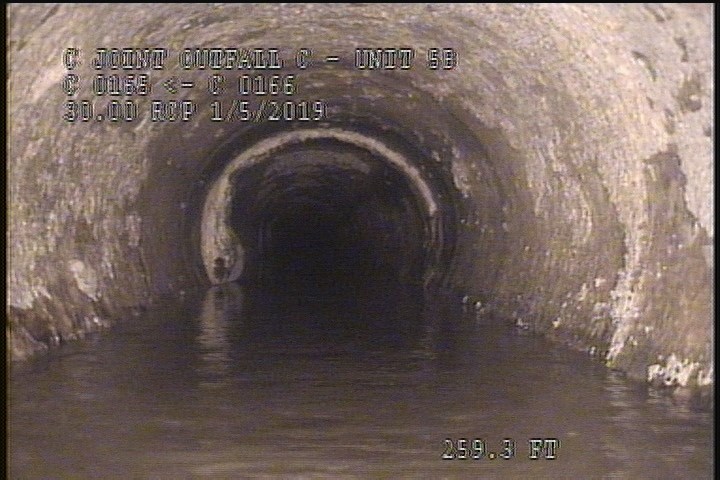

    259.3 ft. - General Photograph

  • General Photograph

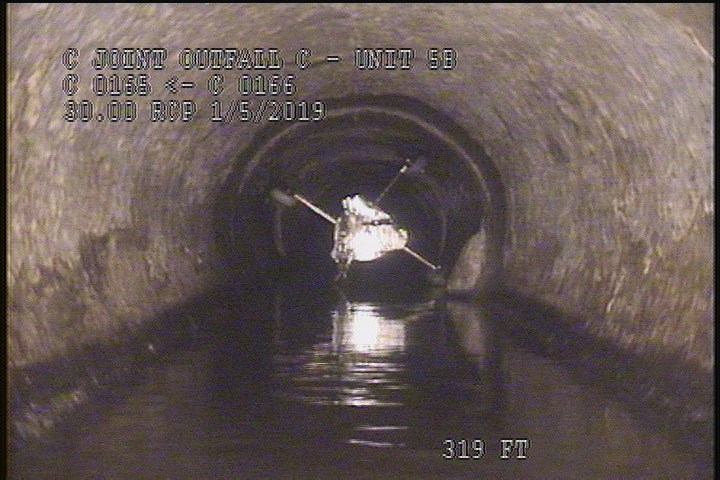

    319 ft. - General Photograph

  • General Photograph

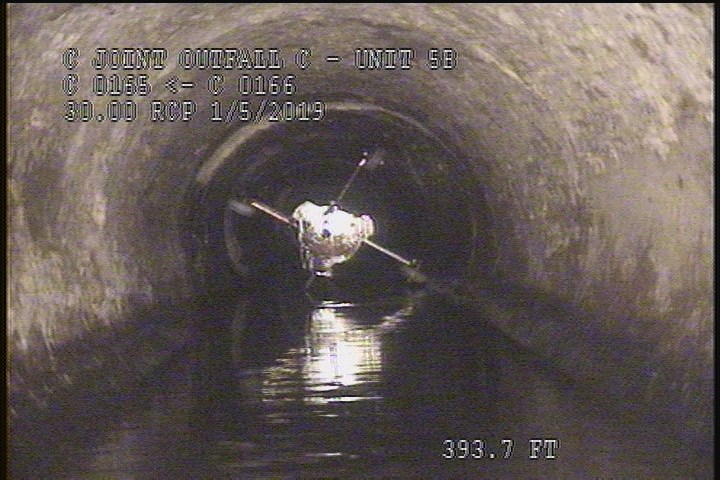

    393.3 ft. - General Photograph

  • General Photograph

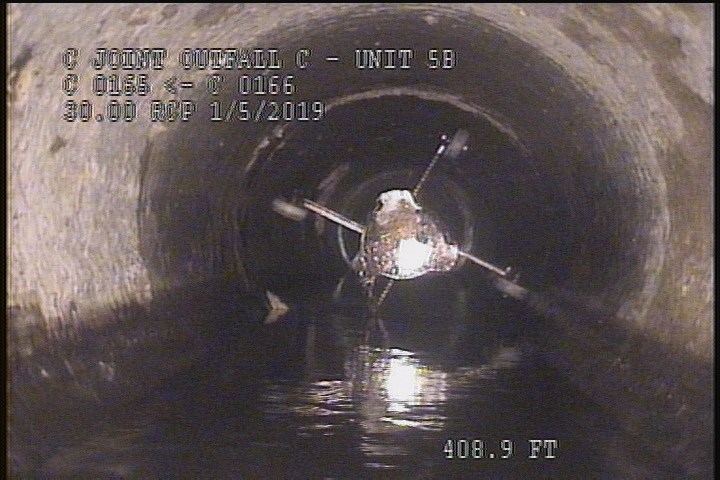

    408.9 ft. - General Photograph

All inspections of P09679Work order 0738705

Observations (5)

DistanceCodeObservation
319MGP—
393.3MGP—
259.3MGP—
0AMH6:28 AM
408.9MGP—

Properties (2)

customer
LACSD
datetime
2019-01-05T06:20:58-08:00
