Wastewater/Activity/PacpInspection/1.0Jan 3, 2019, 06:54 PM
05 2666_05 2665_132019_105736.mp4
- Date
- 01/03/2019
- W/O
- 0737993
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00495
- PipeID
- P26292
- Time
- 10:54 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7886
- Sewer Name
- 05 NORTH TORRANCE TRUNK
- City
- TORRANCE
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 26
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190103DF_NORTH_TORRANCE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 05 2666
- Downstream MH
- 05 2665
- Dir. of Survey
- Downstream
- Length Surveyed
- 319 ft.
- Total Length
- 319 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (6)

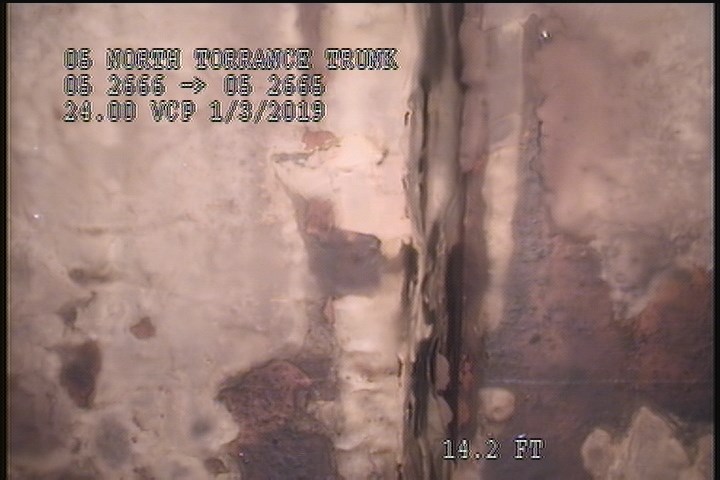

0 ft. - General Observation - Conn. @ Mh, 5 O' Clock. Active

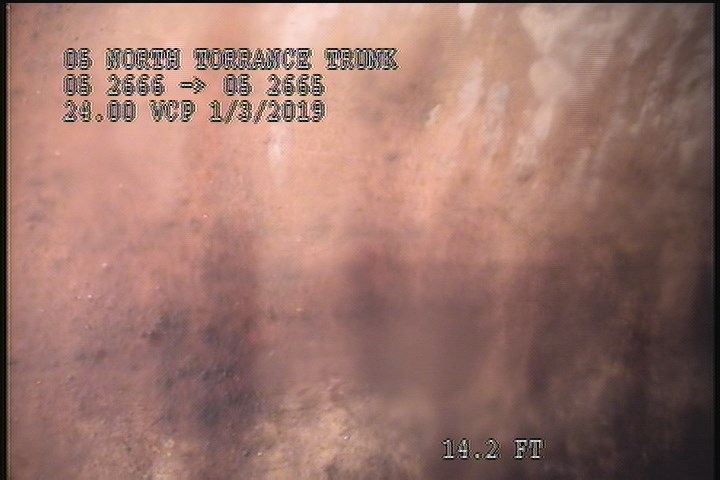

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

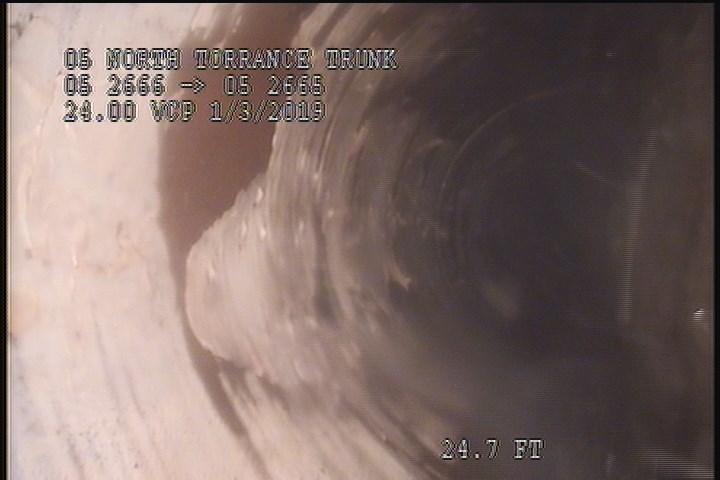

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG

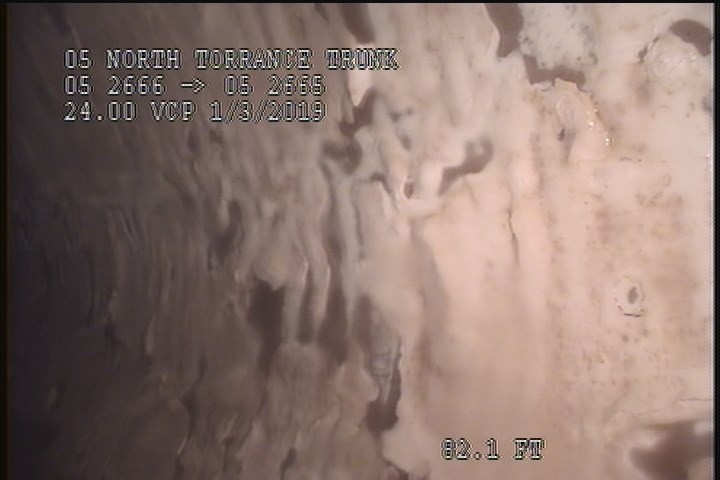

82.1 ft. - General Photograph

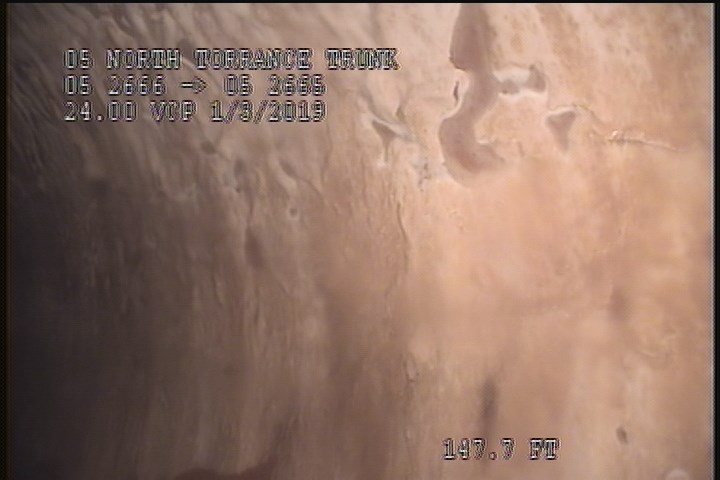

147.7 ft. - General Photograph

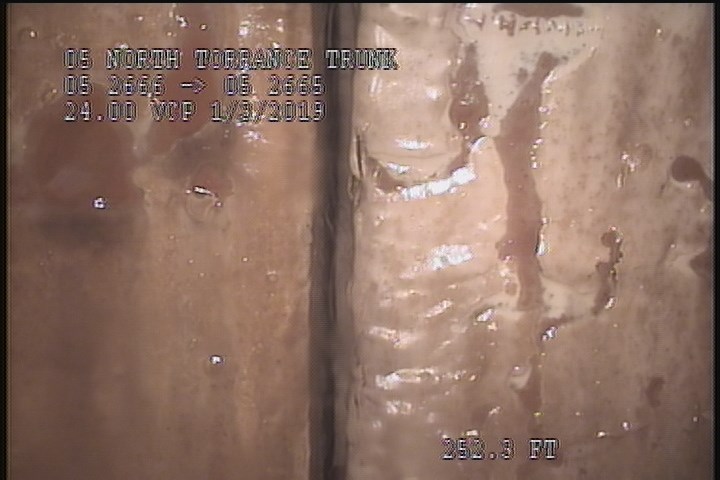

252.3 ft. - General Photograph
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MGO | Conn. @ Mh, 5 O' Clock. Active |
| 252.3 | MGP | — |
| 2 | SSS | — |
| 2 | SZ | 65% MAG |
| 318.4 | SSS | — |
| 318.4 | SZ | 65% MAG |
| 147.7 | MGP | — |
| 319 | AMH | 11:35 AM |
| 0 | AMH | 10:55 AM |
| 0 | MWM | — |
| 82.1 | MGP | — |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-01-03T10:54:22-08:00
