Wastewater/Activity/PacpInspection/1.0Jan 3, 2019, 05:31 PM
05 2668_05 2667_132019_094916.mp4
05 2668_05 2667_132019_101919.mp4
05 2668_05 2667_132019_103349.mp4
- Date
- 01/03/2019
- W/O
- 0737993
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00495
- PipeID
- P26294
- Time
- 9:31 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7886
- Sewer Name
- 05 NORTH TORRANCE TRUNK
- City
- TORRANCE
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 26
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190103DF_NORTH_TORRANCE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 05 2668
- Downstream MH
- 05 2667
- Dir. of Survey
- Downstream
- Length Surveyed
- 71.2 ft.
- Total Length
- 71.2 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (4)

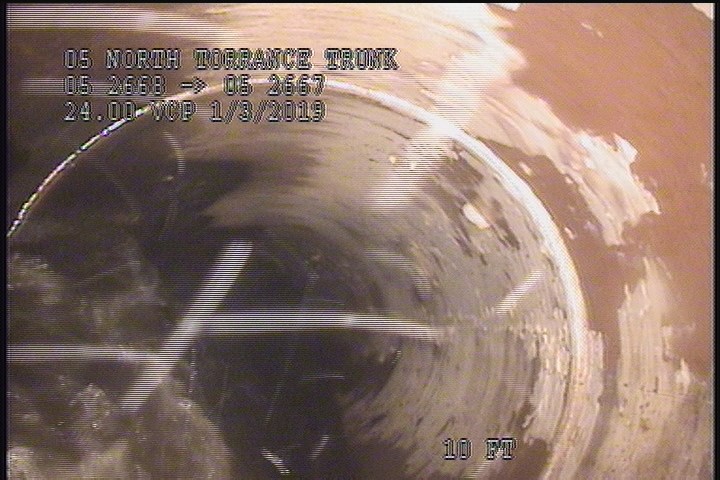

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 65% MAG

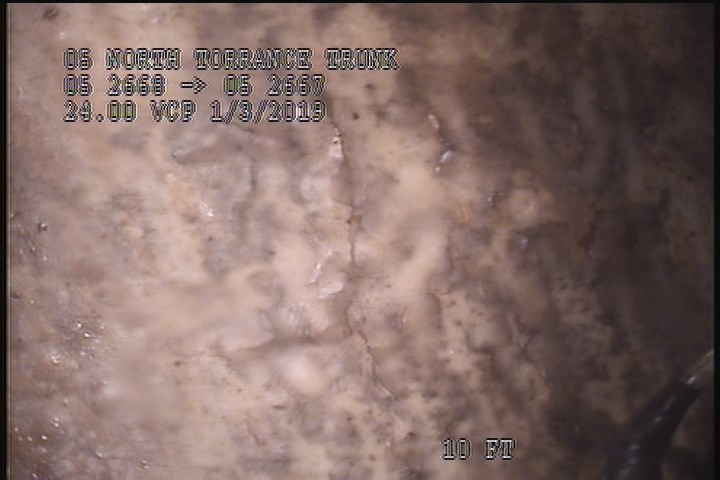

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

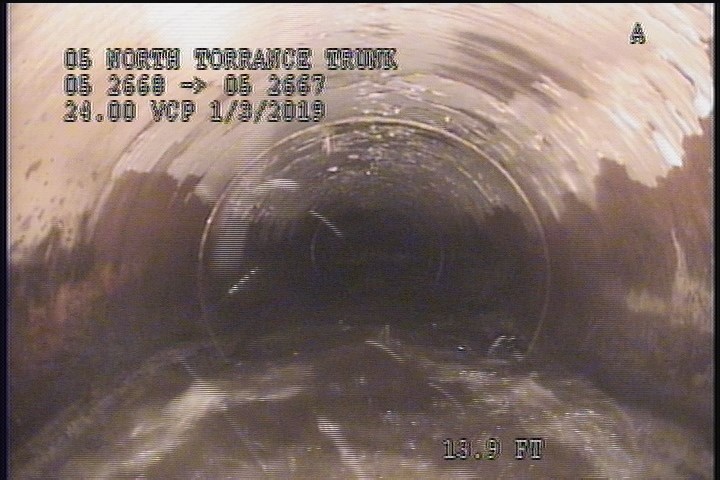

13.9 ft. - General Photograph

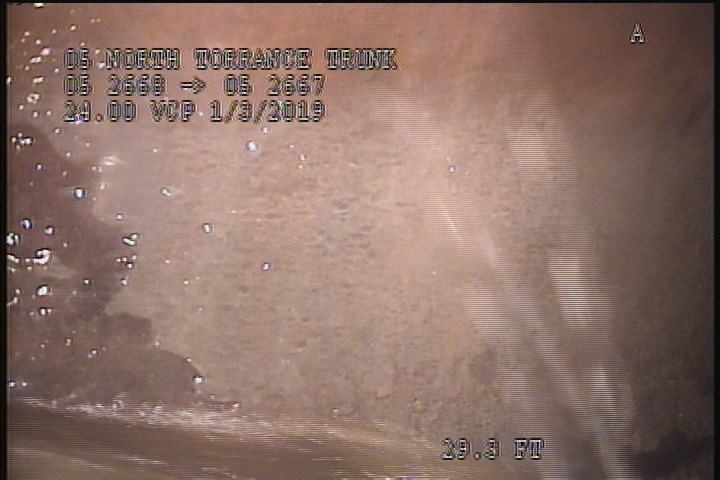

29.3 ft. - General Photograph
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 71.2 | MGO | Peeling & Flaking Throughout The Reach |
| 0 | AMH | 9:38 AM |
| 67.9 | SZ | 65% MAG |
| 2 | SZ | 65% MAG |
| 29.3 | MGP | — |
| 0 | MWL | — |
| 13.9 | MGP | — |
| 0 | MWM | — |
| 71.2 | AMH | 10:38 AM |
| 71.2 | MGO | Grease Throughout The Reach (5%) |
| 67.9 | SSS | — |
| 2 | SSS | — |
Properties (4)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-01-03T09:31:36-08:00
- year_laid
- 20100409
