Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 14, 2018, 10:38 AM

  • B 0711_B 0710 _14092018_033857.mp4

Date
09/14/2018
W/O
724243
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00110
PipeID
P09384
Time
3:38 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6106
Sewer Name
B JOINT OUTFALL B - UNIT 8G
City
DUARTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
08
Purpose
Routine Assessment
Project
WO_724243_TV15057_SEP2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
B 0711
Downstream MH
B 0710
Dir. of Survey
Downstream
Length Surveyed
274.4 ft.
Total Length
274.4 ft.
Structural Index
3
Structural Quick
3J00
Structural Rating
162
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
163
Pipe schematic from manhole B 0711 to B 0710
MH: B 0711MH: B 0710downstream0 ft. AMH - Upstream Manhole, Survey Begins - B 07110 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWM - Water Mark, 20 %of cross sectional area2.5 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start2.5 ft. MGO - General Observation - MAG COAT29.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"78.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"85.5 ft. RFJ - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YES93.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"141.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"195.4 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"268.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"274.4 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish274.4 ft. AMH - Downstream Manhole, Survey Ends - B 0710274.4 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK

Observation photos (2)

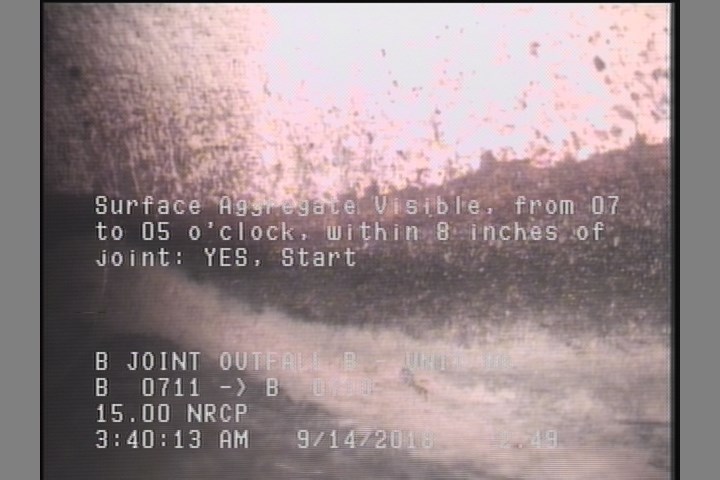

  • Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    2.5 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

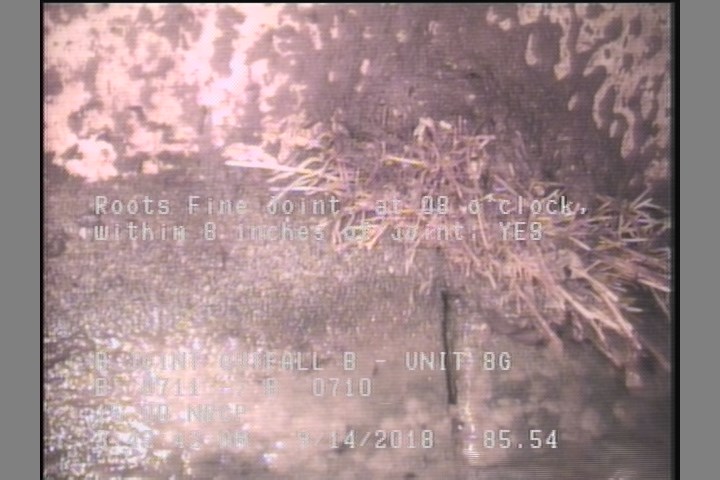

  • Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YES

    85.5 ft. - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YES

All inspections of P09384Work order 724243

Observations (16)

DistanceCodeObservation
141.5TF—
195.4TF—
0AMHB 0711
2.5SAV—
93.4TFC—
29.7TFC—
0MWL—
0MGOCONNECTION AT MH 3 O'CLOCK
2.5MGOMAG COAT
78.2TF—
274.4SAV—
274.4AMHB 0710
268.5TF—
85.5RFJ—
0MWM—
274.4MGOCONNECTION AT MH 3 O'CLOCK

Properties (4)

additional_info
SC364822
custom_field_two
4
customer
LACSD
datetime
2018-09-14T03:38:32-07:00
