Wastewater/Activity/PacpInspection/1.0Sep 6, 2018, 07:04 AM
14 0179_14 0178A_09062018_000421.mp4
- Date
- 09/06/2018
- W/O
- 723913
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00584
- PipeID
- P18218
- Time
- 12:04 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6023
- Sewer Name
- 14 WEST SIDE TRUNK
- City
- LANCASTER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_723913_TV14035_SEP2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 14 0179
- Downstream MH
- 14 0178A
- Dir. of Survey
- Downstream
- Length Surveyed
- 189.4 ft.
- Total Length
- 189.4 ft.
- Structural Index
- 3
- Structural Quick
- 3F2E
- Structural Rating
- 167
- O&M Index
- 2
- O&M Quick
- 2F00
- O&M Rating
- 74
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 241
Observation photos (4)

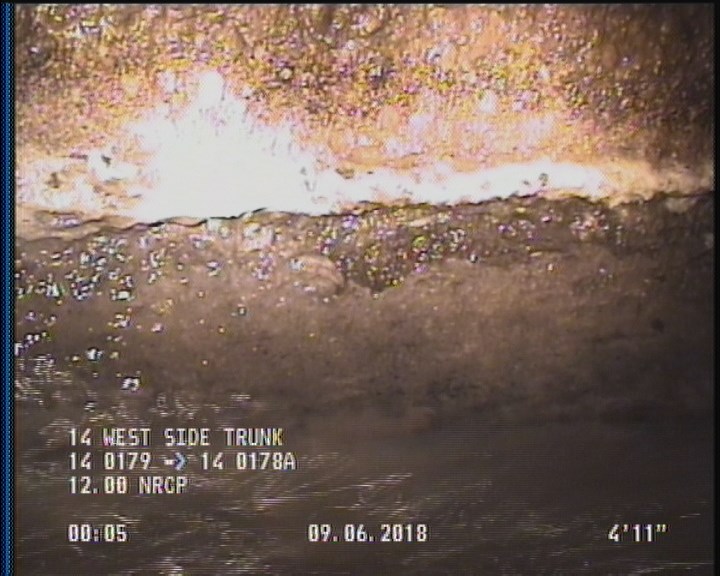

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

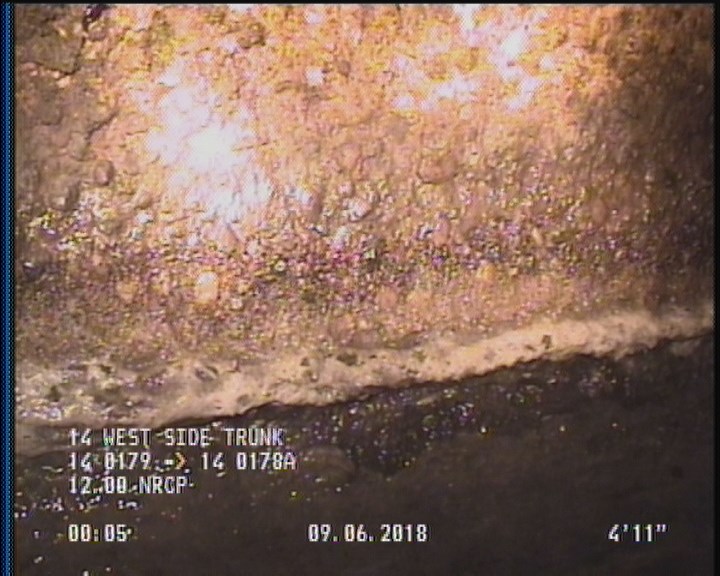

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

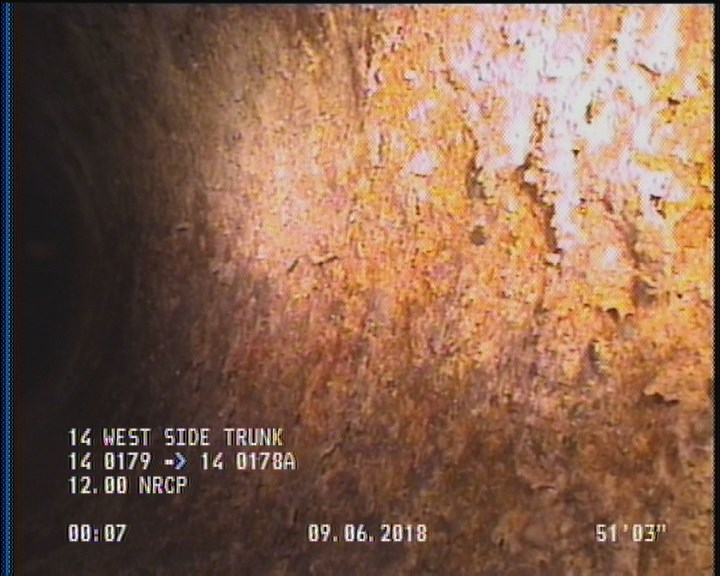

47.4 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

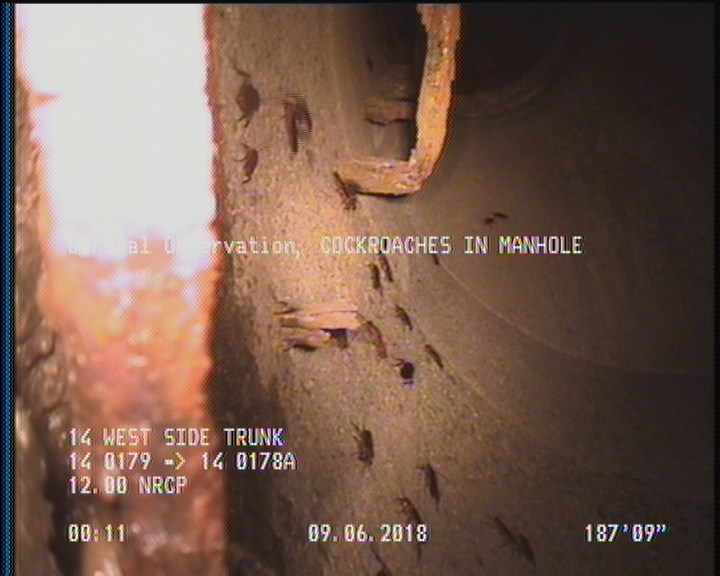

187.7 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 187.7 | SAP | — |
| 0 | MWL | — |
| 0 | AMH | 14 0179 |
| 2 | DAGS | — |
| 187.7 | DAGS | — |
| 189.4 | AMH | 14 0178A |
| 103.3 | TFC | — |
| 189.4 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 187.7 | MGO | COCKROACHES IN MANHOLE |
| 187.7 | SSS | — |
| 0 | MWM | — |
| 47.4 | SSS | — |
| 2 | SAP | — |
Properties (4)
- additional_info
- SC364787
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-06T00:04:25-07:00
