Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 6, 2018, 07:13 AM

  • 14 0178A_14 0178_09062018_001343.mp4

Date
09/06/2018
W/O
723913
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00584
PipeID
P18217
Time
12:13 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6023
Sewer Name
14 WEST SIDE TRUNK
City
LANCASTER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
18
Purpose
Routine Assessment
Project
WO_723913_TV14035_SEP2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
14 0178A
Downstream MH
14 0178
Dir. of Survey
Downstream
Length Surveyed
10.5 ft.
Total Length
10.5 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 14 0178A to 14 0178
MH: 14 0178AMH: 14 0178downstream0 ft. AMH - Upstream Manhole, Survey Begins - 14 0178A0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start7.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish7.5 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish7.5 ft. MGO - General Observation - COCKROACHES IN MANHOLE10.5 ft. AMH - Downstream Manhole, Survey Ends - 14 0178

Observation photos (4)

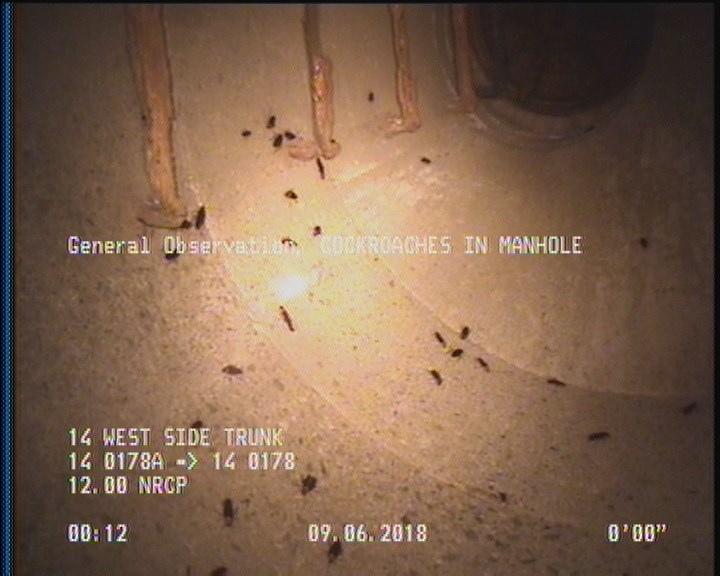

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

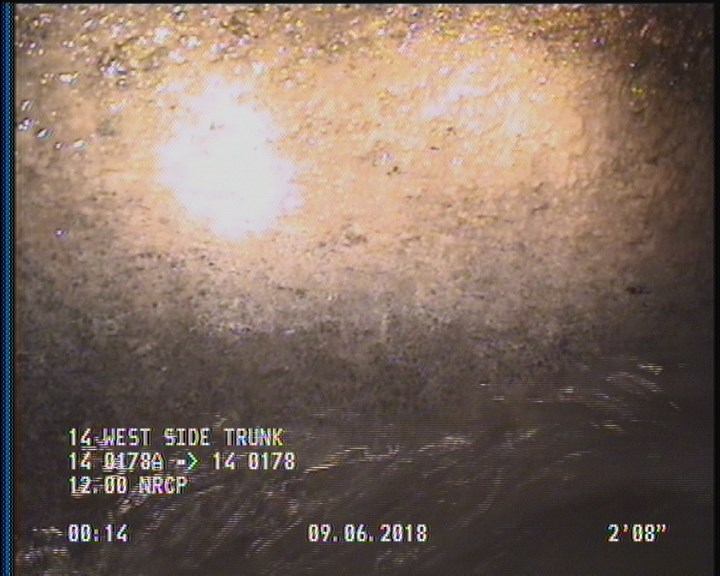

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

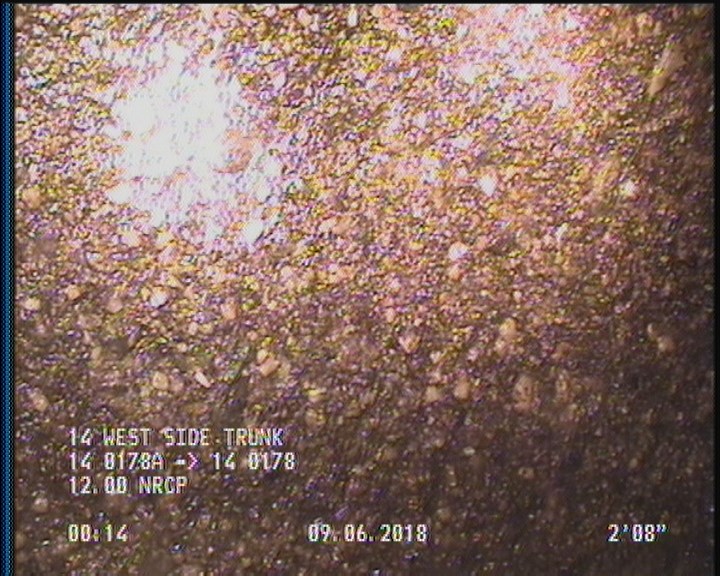

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

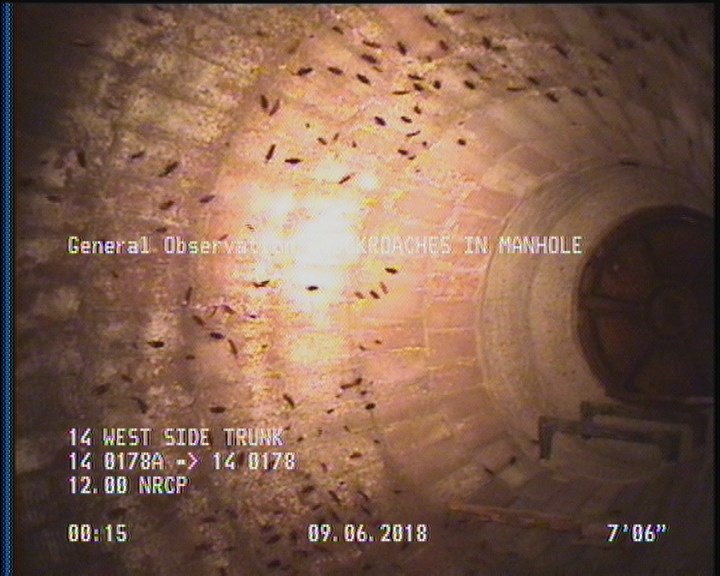

  • General Observation - COCKROACHES IN MANHOLE

    7.5 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P18217Work order 723913

Observations (11)

DistanceCodeObservation
7.5DAGS—
0AMH14 0178A
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
2DAGS—
7.5SAP—
7.5MGOCOCKROACHES IN MANHOLE
0MGOCOCKROACHES IN MANHOLE
10.5AMH14 0178
0MWL—
2SAP—
0MWM—

Properties (4)

additional_info
SC364787
custom_field_two
2
customer
LACSD
datetime
2018-09-06T00:13:26-07:00
