Wastewater/Activity/PacpInspection/1.0Aug 23, 2018, 09:18 AM
14 0163_14 0162B_08232018_021840.mp4
- Date
- 08/23/2018
- W/O
- 723913
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00584
- PipeID
- P18201
- Time
- 2:18 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6009
- Sewer Name
- 14 WEST SIDE TRUNK
- City
- LANCASTER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_723913_TV14035_SEP2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 0163
- Downstream MH
- 14 0162B
- Dir. of Survey
- Downstream
- Length Surveyed
- 177.9 ft.
- Total Length
- 177.9 ft.
- Structural Index
- 3
- Structural Quick
- 3F2C
- Structural Rating
- 147
- O&M Index
- 2
- O&M Quick
- 412F
- O&M Rating
- 74
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 221
Observation photos (3)

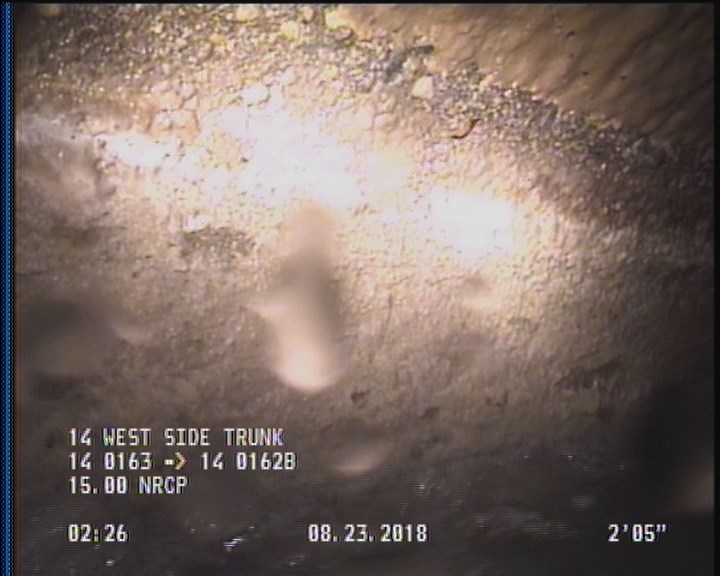

0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

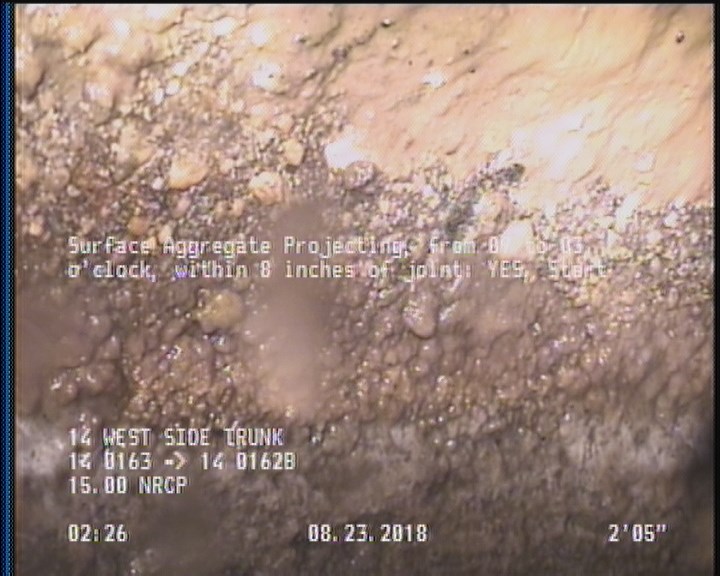

2.4 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

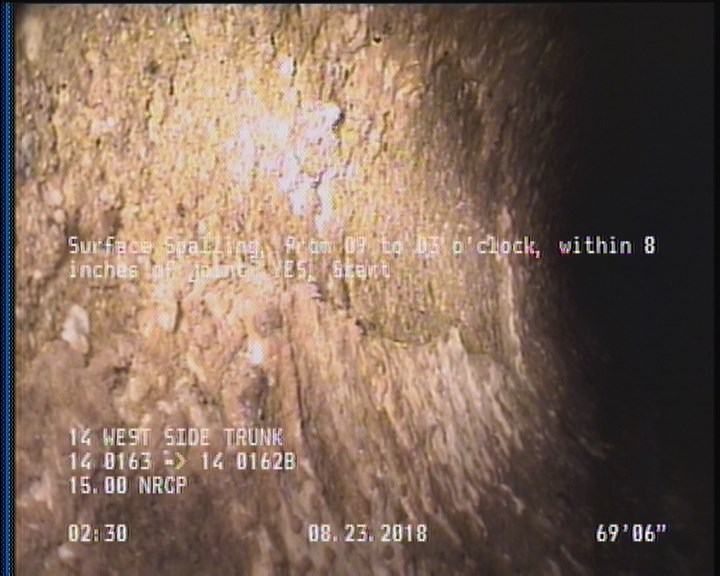

69.5 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 69.5 | SSS | — |
| 177.9 | AMH | 14 0162B |
| 0 | MWM | — |
| 69.5 | TFC | — |
| 67.6 | TFC | — |
| 0 | DAGS | — |
| 2.4 | SAP | — |
| 169.3 | TFC | — |
| 177.9 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 166 | TFC | — |
| 176.6 | SAP | — |
| 176.6 | DAGS | — |
| 21.1 | TFC | — |
| 0 | AMH | 14 0163 |
| 176.6 | SSS | — |
| 17.7 | TFC | — |
| 0 | MWL | — |
| 120.9 | TFC | — |
| 117.4 | TFC | — |
Properties (4)
- additional_info
- SC364779
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-08-23T02:18:36-07:00
