Wastewater/Activity/PacpInspection/1.0Sep 6, 2018, 09:58 AM
14 0209_14 0208 _09062018_025832.mp4
- Date
- 09/06/2018
- W/O
- 723913
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00584
- PipeID
- P18248
- Time
- 2:58 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6023
- Sewer Name
- 14 WEST SIDE TRUNK
- City
- LANCASTER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_723913_TV14035_SEP2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 14 0209
- Downstream MH
- 14 0208
- Dir. of Survey
- Downstream
- Length Surveyed
- 231.4 ft.
- Total Length
- 231.4 ft.
- Structural Index
- 3
- Structural Quick
- 3G00
- Structural Rating
- 126
- O&M Index
- 2
- O&M Quick
- 2H00
- O&M Rating
- 90
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 216
Observation photos (3)

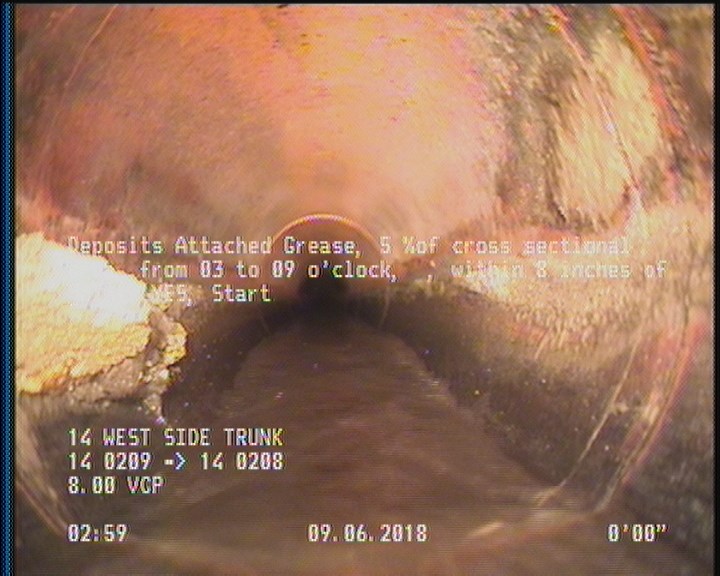

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

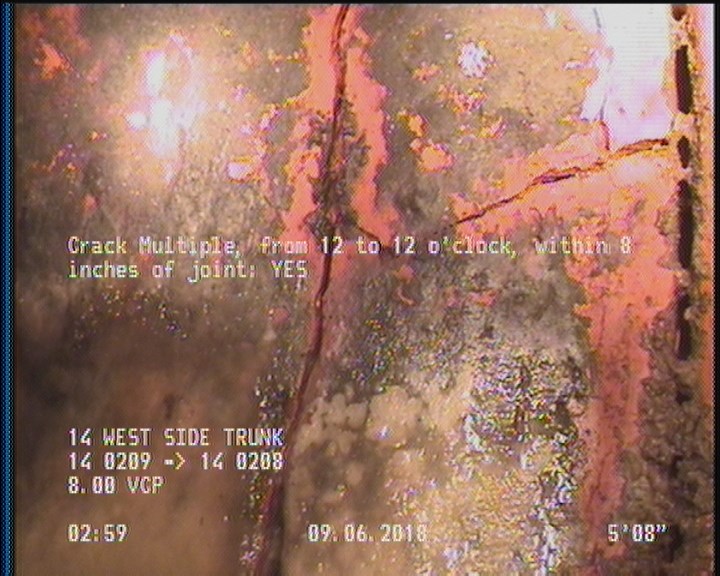

5.7 ft. - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

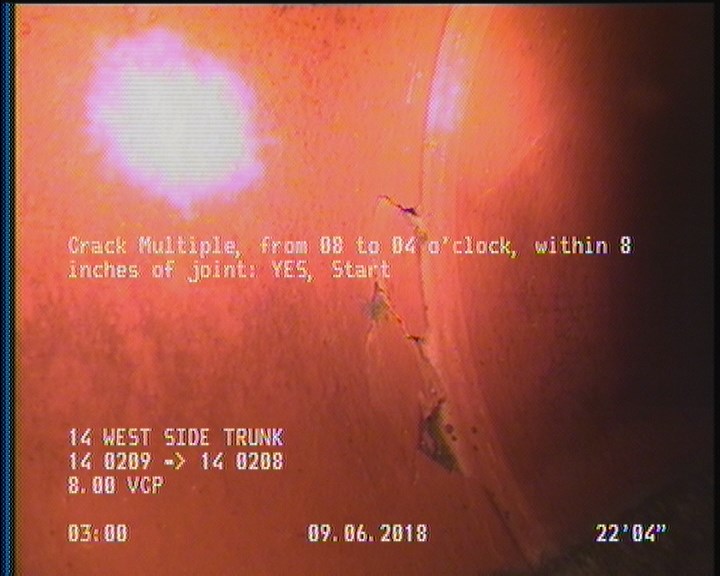

22.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 127.5 | TFA | — |
| 71.3 | TFA | — |
| 130.6 | TFA | — |
| 5.7 | CM | — |
| 231.4 | AMH | 14 0208 |
| 190.1 | TFA | — |
| 229.3 | CM | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 AND 3 O'CLOCK |
| 2 | DAGS | — |
| 188 | TFA | — |
| 77.3 | TFA | — |
| 22.3 | CM | — |
| 0 | MWL | — |
| 229.3 | DAGS | — |
| 0 | AMH | 14 0209 |
Properties (4)
- additional_info
- SC364787
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-06T02:58:17-07:00
