Wastewater/Activity/PacpInspection/1.0Aug 23, 2018, 09:45 AM
14 0162A_14 0162_08232018_024537.mp4
- Date
- 08/23/2018
- W/O
- 723913
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00584
- PipeID
- P18199
- Time
- 2:45 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6009
- Sewer Name
- 14 WEST SIDE TRUNK
- City
- LANCASTER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- WO_723913_TV14035_SEP2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 14 0162A
- Downstream MH
- 14 0162
- Dir. of Survey
- Downstream
- Length Surveyed
- 24.5 ft.
- Total Length
- 24.5 ft.
- Structural Index
- 3
- Structural Quick
- 3424
- Structural Rating
- 20
- O&M Index
- 2
- O&M Quick
- 4124
- O&M Rating
- 12
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 32
Observation photos (3)

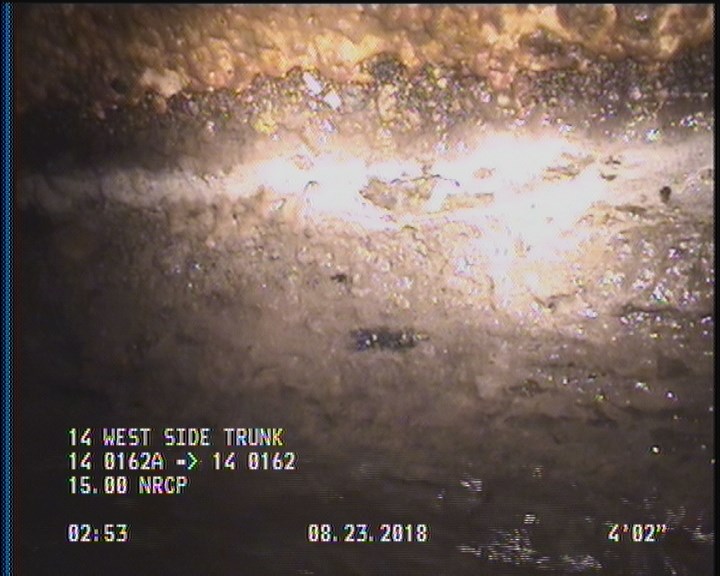

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

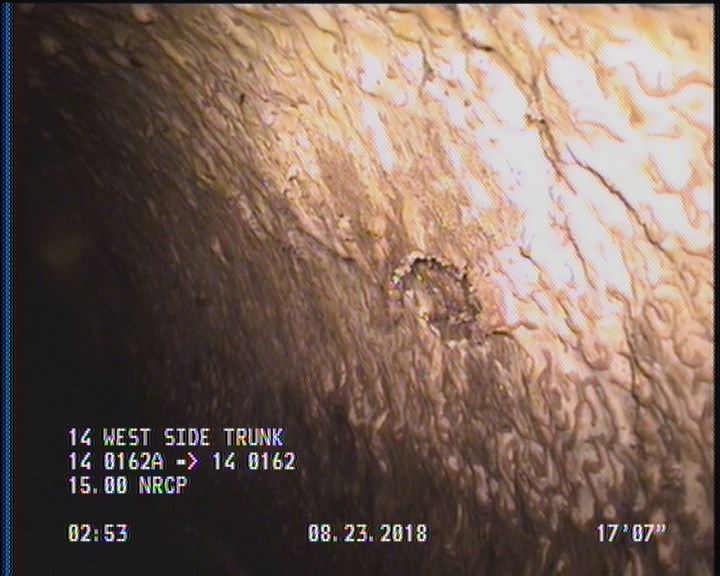

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

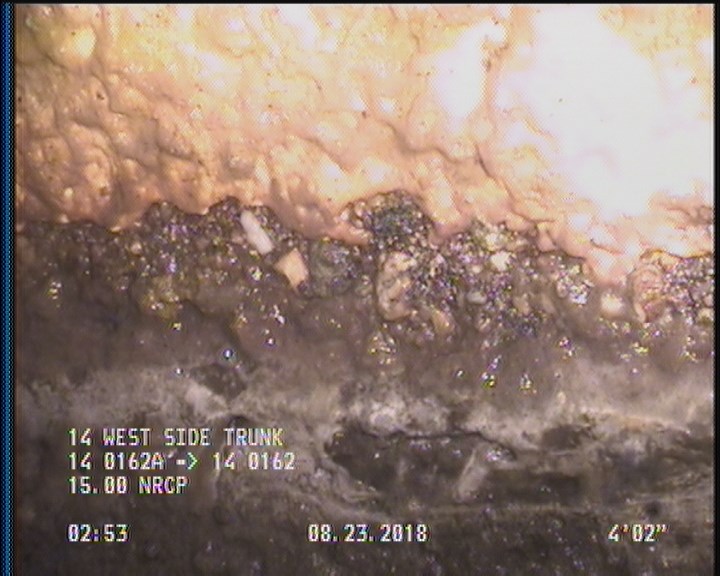

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 24.2 | SAP | — |
| 0 | MWM | — |
| 24.2 | SSS | — |
| 24.5 | AMH | 14 0162 |
| 24.2 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | 14 0162A |
| 2 | DAGS | — |
| 2 | SSS | — |
| 2 | SAP | — |
Properties (4)
- additional_info
- SC364779
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-08-23T02:45:32-07:00
