Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 19, 2018, 08:08 AM

  • 22 0781_22 0780A _12192018_000859.mp4

Date
12/19/2018
W/O
740302
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00824
PipeID
P17142
Time
12:08 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6277
Sewer Name
22 RAMONA AVENUE TRUNK
City
LA VERNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
23
Purpose
Routine Assessment
Project
RFIR_WO_740302_TV02204_DEC2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0781
Downstream MH
22 0780A
Dir. of Survey
Downstream
Length Surveyed
82.3 ft.
Total Length
82.3 ft.
Structural Index
3
Structural Quick
3B00
Structural Rating
48
O&M Index
2
O&M Quick
2B00
O&M Rating
32
Overall Index
3
Overall Quick
—
Overall Rating
80
Pipe schematic from manhole 22 0781 to 22 0780A
MH: 22 0781MH: 22 0780Adownstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 07812 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - MAG COATING THROUGHOUT 50%20.2 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"43.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"78 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 4"81.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish81.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish82.3 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK82.3 ft. AMH - Downstream Manhole, Survey Ends - 22 0780A

Observation photos (3)

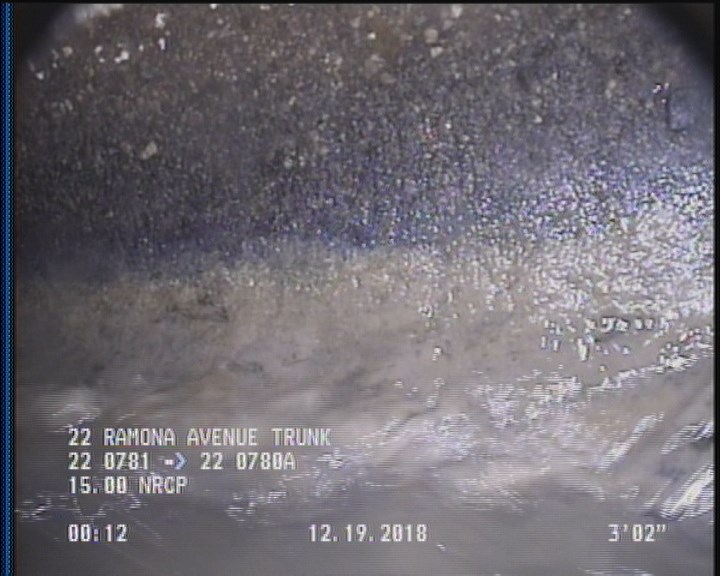

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

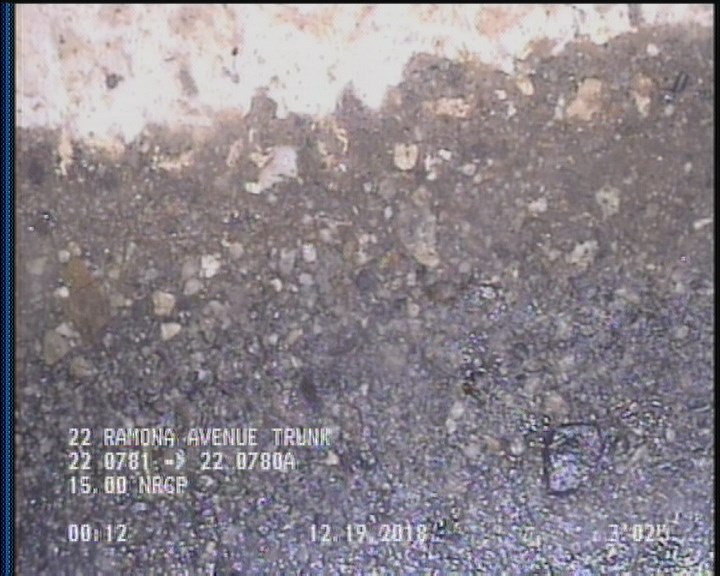

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

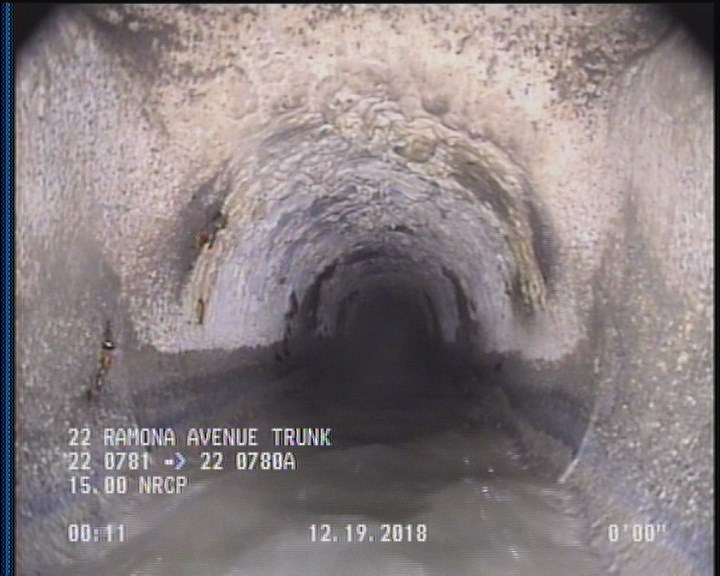

  • General Observation - MAG COATING THROUGHOUT 50%

    2 ft. - General Observation - MAG COATING THROUGHOUT 50%

All inspections of P17142Work order 740302

Observations (13)

DistanceCodeObservation
2DAGS—
0MWM—
2SAP—
78TBA—
0MWL—
82.3MGOACTIVE CONNECTION AT MH 9 O'CLOCK
20.2TFA—
43.6TFC—
0AMH22 0781
2MGOMAG COATING THROUGHOUT 50%
81.2SAP—
82.3AMH22 0780A
81.2DAGS—

Properties (4)

additional_info
SC365393
custom_field_two
2
customer
LACSD
datetime
2018-12-19T00:08:55-08:00
