Wastewater/Activity/PacpInspection/1.0Dec 19, 2018, 07:39 AM
22 0782A_22 0782 _12182018_233952.mp4
- Date
- 12/18/2018
- W/O
- 740302
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00824
- PipeID
- P17145
- Time
- 11:39 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6277
- Sewer Name
- 22 RAMONA AVENUE TRUNK
- City
- LA VERNE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740302_TV02204_DEC2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0782A
- Downstream MH
- 22 0782
- Dir. of Survey
- Downstream
- Length Surveyed
- 35.2 ft.
- Total Length
- 35.2 ft.
- Structural Index
- 3
- Structural Quick
- 3600
- Structural Rating
- 18
- O&M Index
- 2
- O&M Quick
- 2600
- O&M Rating
- 12
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 30
Observation photos (3)

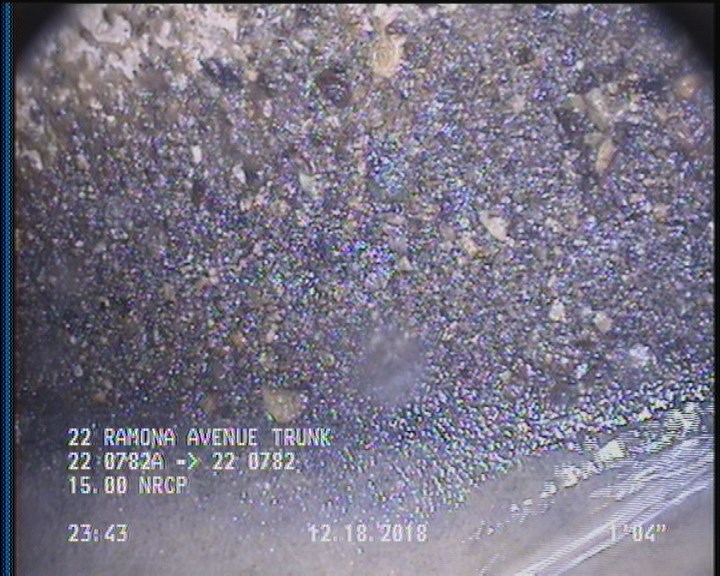

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

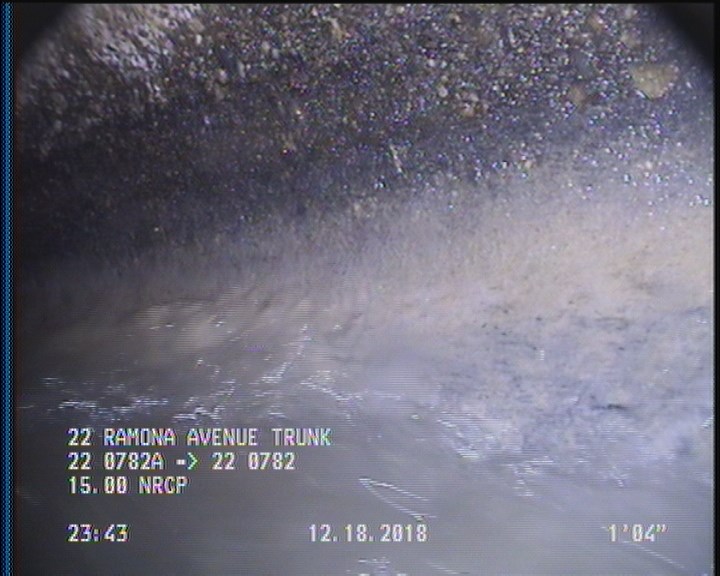

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

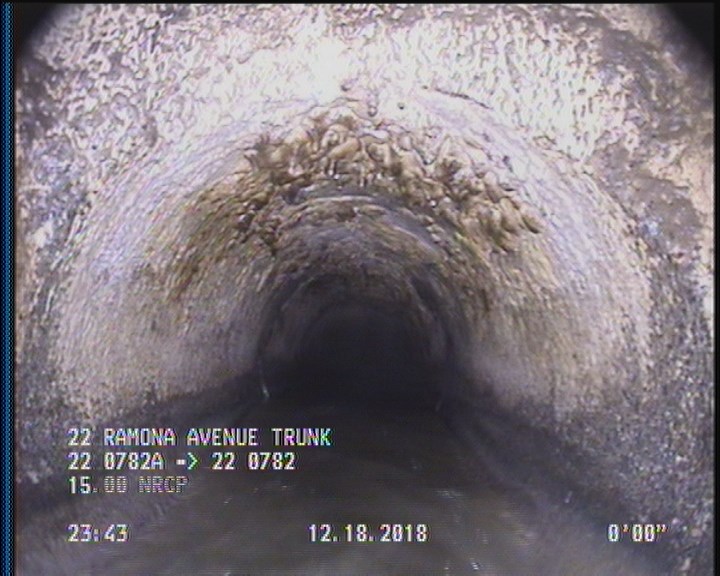

2 ft. - General Observation - MAG COATING THROUGHOUT 50%
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 7 | TFC | — |
| 2 | SAP | — |
| 33.3 | SAP | — |
| 2 | DAGS | — |
| 2 | MGO | MAG COATING THROUGHOUT 50% |
| 0 | MWL | — |
| 35.2 | AMH | 22 0782 |
| 0 | MWM | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 33.3 | DAGS | — |
| 11.1 | TFA | — |
| 0 | AMH | 22 0782A |
Properties (4)
- additional_info
- SC365393
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-12-18T23:39:45-08:00
