Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 31, 2018, 07:19 AM

  • H 0990_21 0215 _07312018_001936.mp4

Date
07/31/2018
W/O
718172
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01005
PipeID
P15404
Time
12:19 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5884
Sewer Name
H JOINT OUTFALL H - UNIT 7C
City
INDUSTRY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
35
Purpose
Routine Assessment
Project
WO_718172_TV21087_AUG2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
H 0990
Downstream MH
21 0215
Dir. of Survey
Downstream
Length Surveyed
18.5 ft.
Total Length
18.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2300
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole H 0990 to 21 0215
MH: H 0990MH: 21 0215downstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - H 09900 ft. MGO - General Observation - MAG COATING THROUGHOUT 85%2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start16.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish16.5 ft. MGO - General Observation - COCKROACHES IN MANHOLE18.5 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK18.5 ft. AMH - Downstream Manhole, Survey Ends - 21 0215

Observation photos (3)

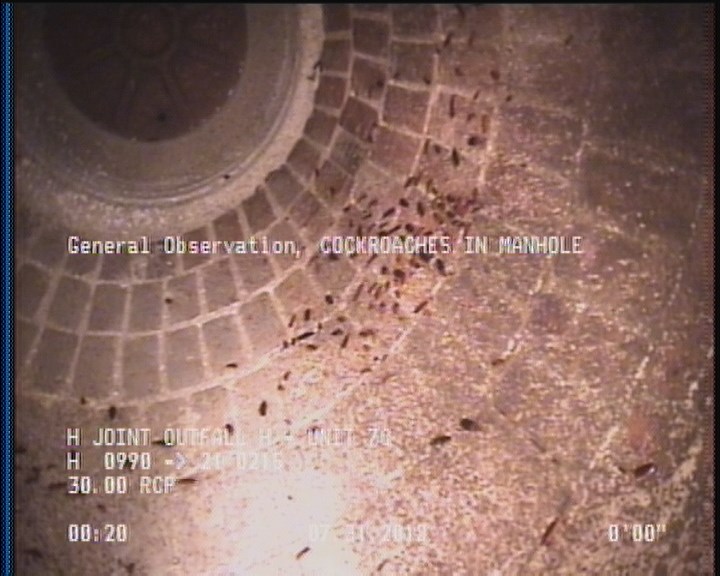

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

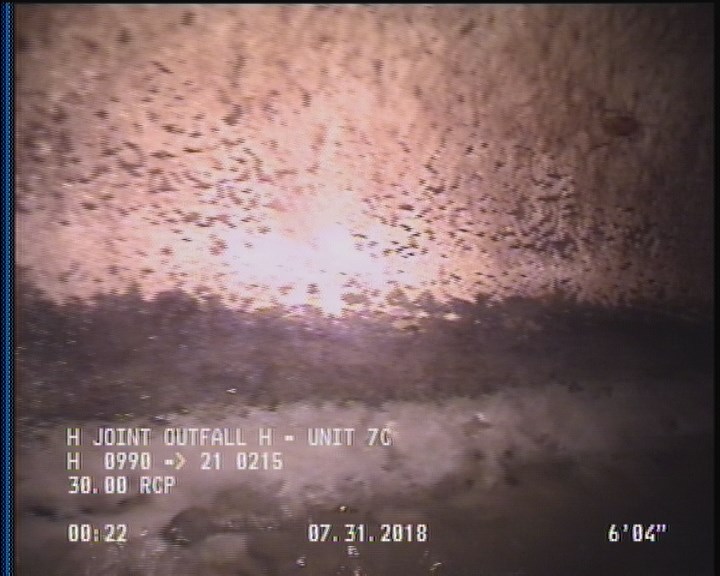

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

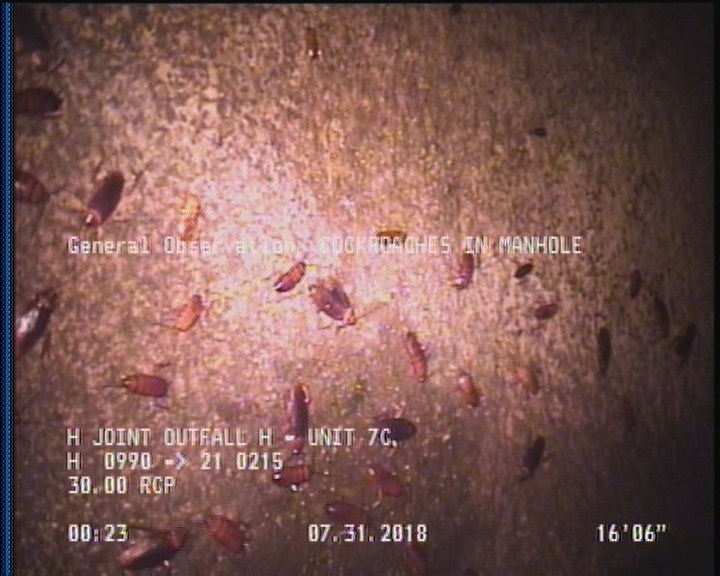

  • General Observation - COCKROACHES IN MANHOLE

    16.5 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P15404Work order 718172

Observations (11)

DistanceCodeObservation
2DAGS—
18.5MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
18.5AMH21 0215
0MWM—
16.5DAGS—
0MWL—
0MGOCOCKROACHES IN MANHOLE
0AMHH 0990
16.5MGOCOCKROACHES IN MANHOLE
0MGOMAG COATING THROUGHOUT 85%

Properties (5)

additional_info
SC364752
customer
LACSD
datetime
2018-07-31T00:19:22-07:00
documentation
PRO PIPE
is_lateral_inspection
false
