Wastewater/Activity/PacpInspection/1.0Aug 8, 2018, 09:06 AM
H 0976_H 0975 _08082018_021658.mp4
- Date
- 08/08/2018
- W/O
- 718172
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01005
- PipeID
- P15389
- Time
- 2:06 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5894
- Sewer Name
- H JOINT OUTFALL H - UNIT 7C
- City
- INDUSTRY
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_718172_TV21087_AUG2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- H 0976
- Downstream MH
- H 0975
- Dir. of Survey
- Downstream
- Length Surveyed
- 380.3 ft.
- Total Length
- 380.3 ft.
- Structural Index
- 3
- Structural Quick
- 3N2N
- Structural Rating
- 375
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 150
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 525
Observation photos (4)

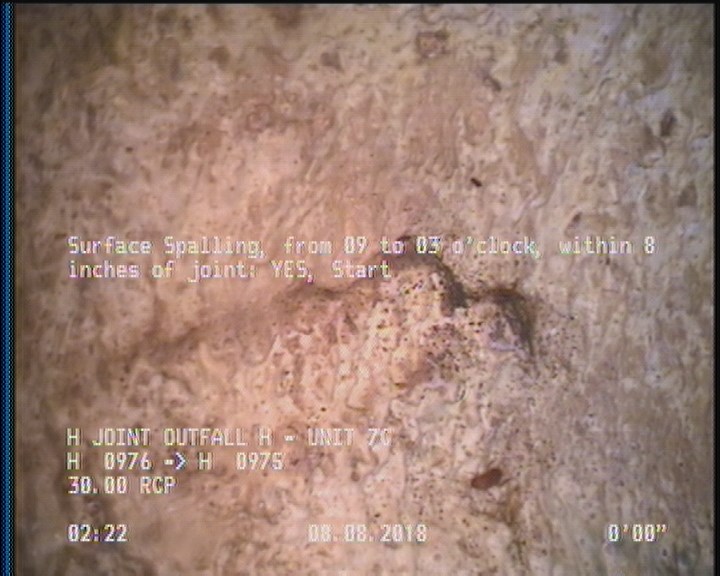

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

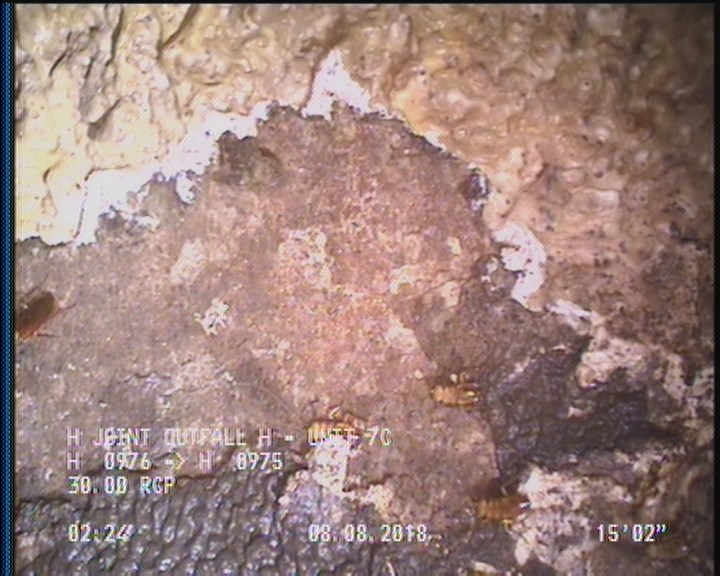

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

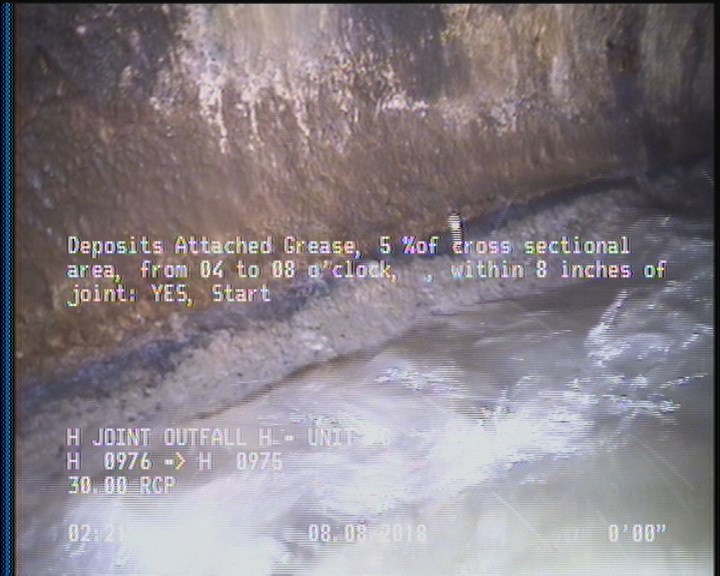

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

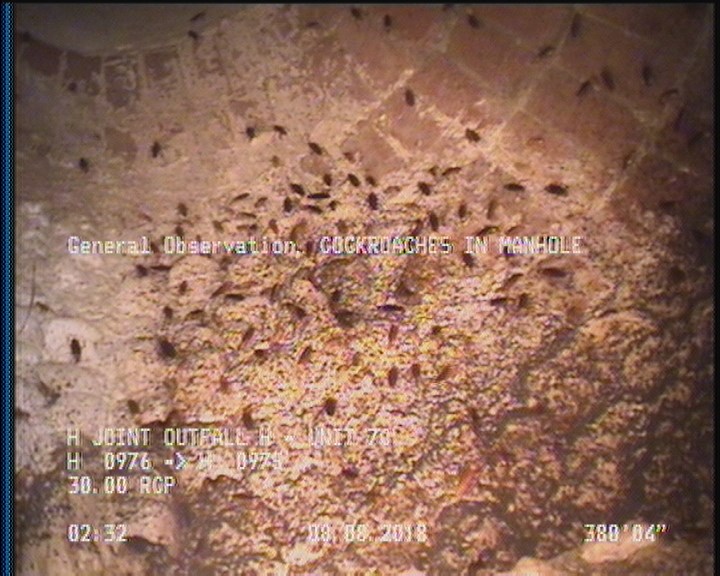

380.3 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 377.4 | SSS | — |
| 377.4 | SAV | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 2 | SSS | — |
| 380.3 | AMH | H 0975 |
| 0 | AMH | H 0976 |
| 2 | SAV | — |
| 2 | DAGS | — |
| 380.3 | MGO | COCKROACHES IN MANHOLE |
| 377.4 | DAGS | — |
Properties (6)
- additional_info
- SC364762
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-08-08T02:06:38-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
