Wastewater/Activity/PacpInspection/1.0Oct 24, 2018, 05:29 AM
H 0945H 0944 District 21_112118095858.mpg
- Date
- 10/23/2018
- W/O
- 718172
- Weather
- Dry
- Operator/Surveyor
- B. FUGATE
- Sewer ID
- Z01005
- PipeID
- P20186
- Time
- 10:29 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6185
- Sewer Name
- H JOINT OUTFALL H - UNIT 7C
- City
- CITY OF INDUSTRY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- WO_718172_TV21087_AUG2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- H 0945
- Downstream MH
- H 0944
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

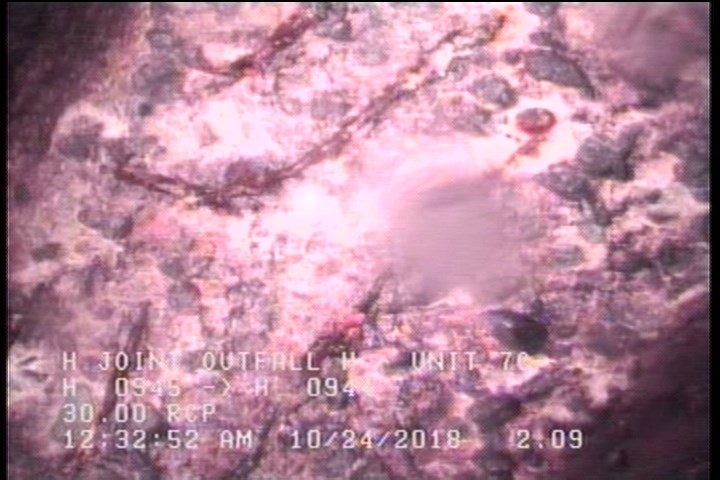

2.1 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

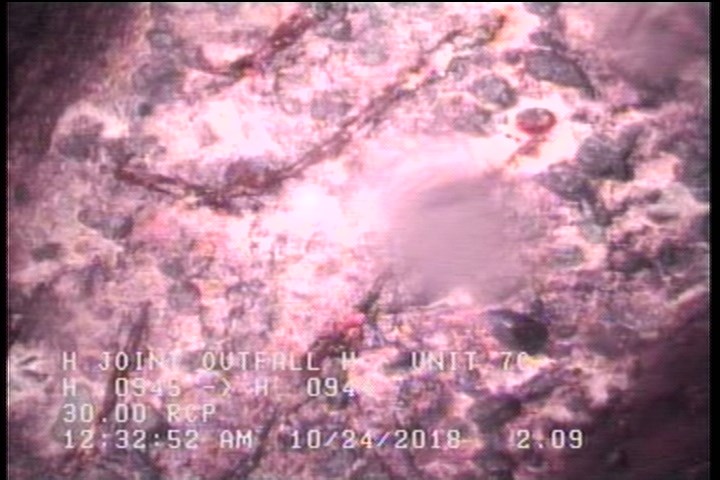

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | MSA | DOWN LEG OF THE U/S SIPHON |
| 2.1 | SRV | — |
| 0 | AMH | H 0945 |
| 2.1 | SAP | — |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC365228
- customer
- LACSD
- datetime
- 2018-10-23T22:29:00-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
