Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 14, 2018, 06:50 AM

  • H 0947_H 0946 _08132018_235110.mp4

Date
08/13/2018
W/O
718172
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01005
PipeID
P15360
Time
11:50 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5900
Sewer Name
H JOINT OUTFALL H - UNIT 7C
City
INDUSTRY
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
33
Purpose
Routine Assessment
Project
WO_718172_TV21087_AUG2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Width
36 in.
Upstream MH
H 0947
Downstream MH
H 0946
Dir. of Survey
Downstream
Length Surveyed
460 ft.
Total Length
460.1 ft.
Structural Index
2
Structural Quick
513O
Structural Rating
419
O&M Index
2
O&M Quick
412Q
O&M Rating
186
Overall Index
2
Overall Quick
—
Overall Rating
605
Pipe schematic from manhole H 0947 to H 0946
MH: H 0947MH: H 0946downstream0 ft. AMH - Upstream Manhole, Survey Begins - H 09470 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 40 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. MGO - General Observation - MAG COATING THROUGHOUT 70%10.2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start65.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start344.6 ft. SRV - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES457.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish457.8 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish457.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish460.1 ft. AMH - Downstream Manhole, Survey Ends - H 0946460.1 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (4)

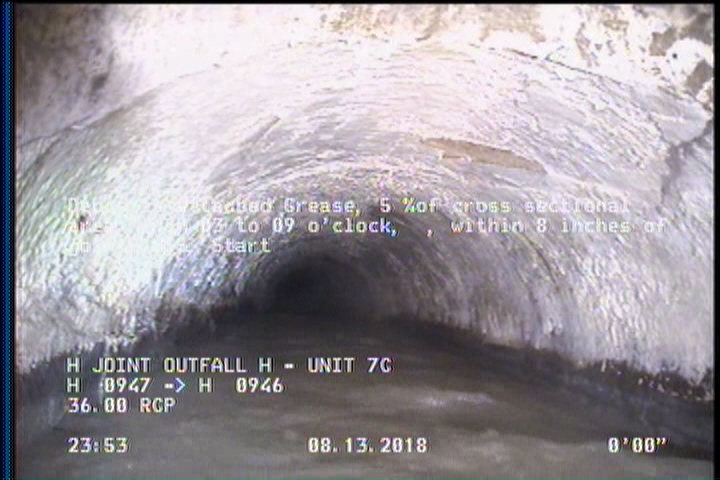

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

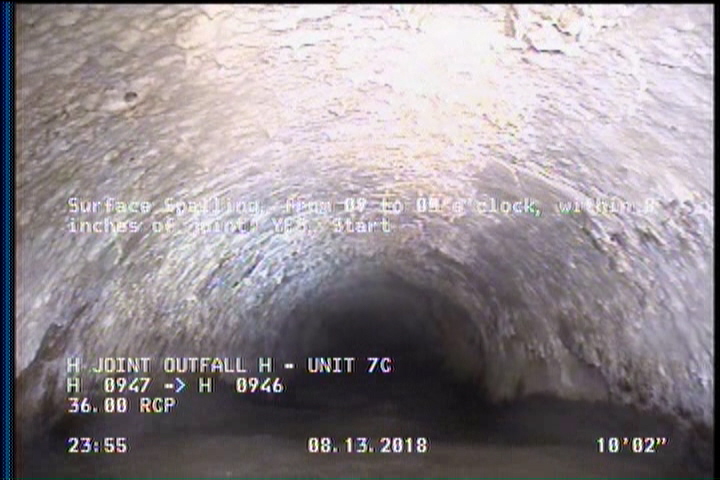

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    10.2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

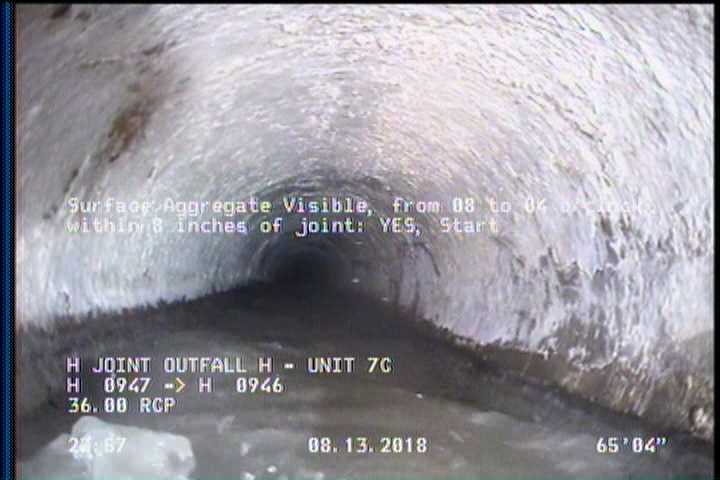

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    65.3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

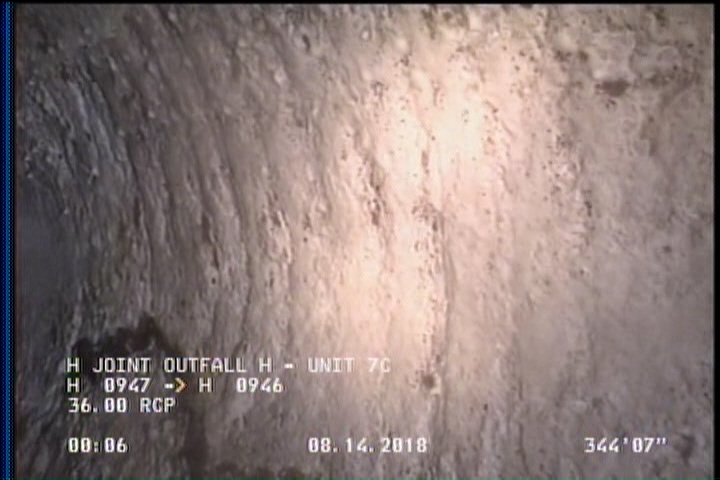

  • Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

    344.6 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P15360Work order 718172

Observations (15)

DistanceCodeObservation
0AMHH 0947
0MGOCOCKROACHES IN MANHOLE
10.2SSS—
460.1AMHH 0946
457.8DAGS—
2DAGS—
344.6SRV—
0MWL—
460.1MGOCOCKROACHES IN MANHOLE
457.8SSS—
65.3SAV—
457.8SAV—
2MGOMAG COATING THROUGHOUT 70%
0MWM—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK

Properties (6)

additional_info
SC364769
custom_field_two
3
customer
LACSD
datetime
2018-08-13T23:50:00-07:00
documentation
PROPIPE
is_lateral_inspection
false
