Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 8, 2018, 06:39 AM

  • H 0980_H 0979 _08072018_233951.mp4

Date
08/07/2018
W/O
718172
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01005
PipeID
P15393
Time
11:39 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5894
Sewer Name
H JOINT OUTFALL H - UNIT 7C
City
INDUSTRY
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
34
Purpose
Routine Assessment
Project
WO_718172_TV21087_AUG2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
H 0980
Downstream MH
H 0979
Dir. of Survey
Downstream
Length Surveyed
408.7 ft.
Total Length
408.7 ft.
Structural Index
3
Structural Quick
3O00
Structural Rating
243
O&M Index
2
O&M Quick
2O00
O&M Rating
162
Overall Index
3
Overall Quick
—
Overall Rating
405
Pipe schematic from manhole H 0980 to H 0979
MH: H 0980MH: H 0979downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - MAG COATING THROUGHOUT 75%0 ft. AMH - Upstream Manhole, Survey Begins - H 09800 ft. MWL - Water Level, 20 %of cross sectional area2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start296.4 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"407.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish407.7 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish408.7 ft. AMH - Downstream Manhole, Survey Ends - H 0979408.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (2)

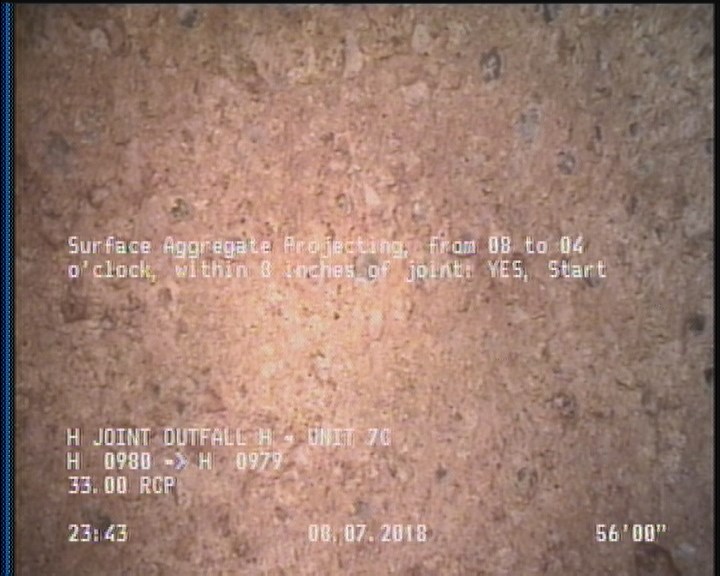

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

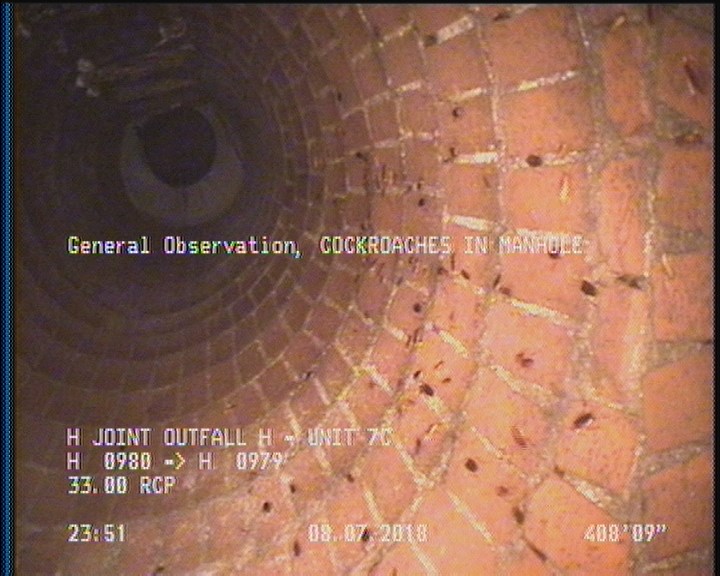

  • General Observation - COCKROACHES IN MANHOLE

    408.7 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P15393Work order 718172

Observations (11)

DistanceCodeObservation
2SAP—
407.7DAGS—
0MWM—
2DAGS—
408.7AMHH 0979
0MGOMAG COATING THROUGHOUT 75%
0AMHH 0980
0MWL—
296.4TBA—
408.7MGOCOCKROACHES IN MANHOLE
407.7SAP—

Properties (6)

additional_info
SC364762
custom_field_two
2
customer
LACSD
datetime
2018-08-07T23:39:21-07:00
documentation
PRO PIPE
is_lateral_inspection
false
