Wastewater/Activity/PacpInspection/1.0Aug 14, 2018, 09:26 AM
H 0969_H 0968 _08142018_022718.mp4
- Date
- 08/14/2018
- W/O
- 718172
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- \
- PipeID
- P15382
- Time
- 2:26 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5900
- Sewer Name
- H JOINT OUTFALL H - UNIT 7C
- City
- INDUSTRY
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- WO_718172_TV21087_AUG2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- H 0969
- Downstream MH
- H 0968
- Dir. of Survey
- Downstream
- Length Surveyed
- 362.5 ft.
- Total Length
- 362.5 ft.
- Structural Index
- 2
- Structural Quick
- 3M2M
- Structural Rating
- 354
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 144
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 498
Observation photos (3)

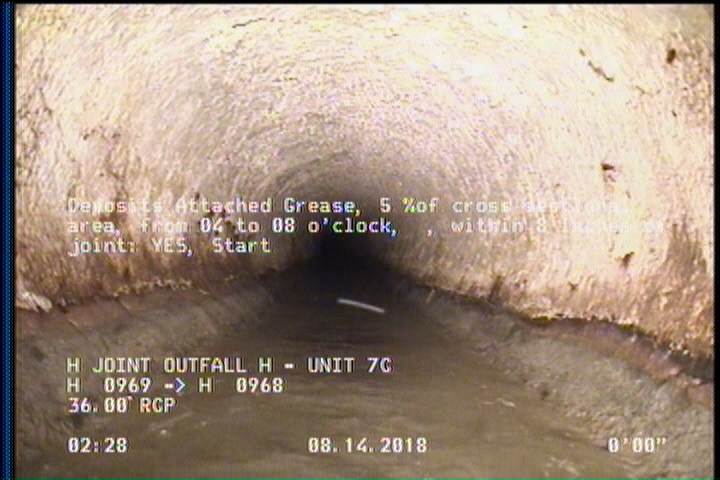

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

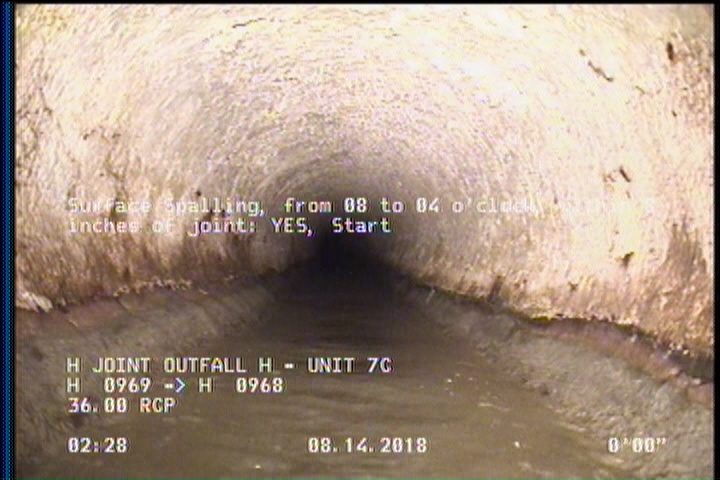

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

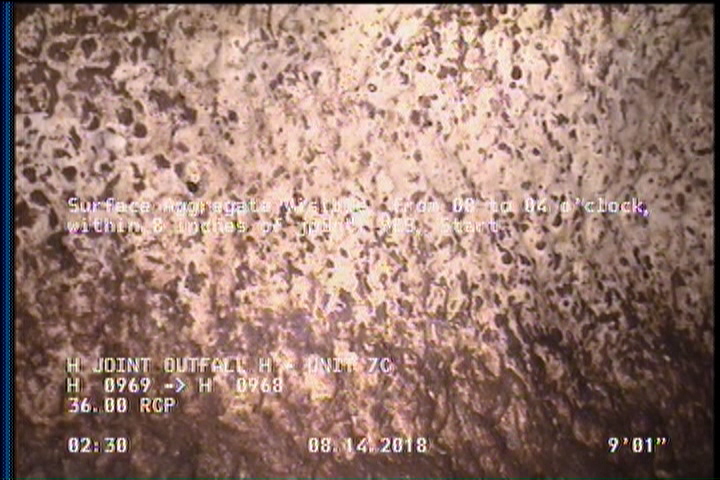

9.8 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 2 | MGO | MAG COATING 75% |
| 2 | DAGS | — |
| 360.1 | SAV | — |
| 360.1 | MGO | COCKROACHES IN MANHOLE |
| 0 | MGO | COCKROACEHS IN MANHOLE |
| 0 | MWL | — |
| 9.8 | SAV | — |
| 360.1 | SSS | — |
| 0 | MWM | — |
| 360.1 | DAGS | — |
| 362.5 | AMH | H 0968 |
| 2 | SSS | — |
| 0 | AMH | H 0969 |
Properties (6)
- additional_info
- SC364769
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-08-14T02:26:00-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
