Wastewater/Activity/PacpInspection/1.0Jul 31, 2018, 09:47 AM
H 0984_H 0983 _07312018_024735.mp4
- Date
- 07/31/2018
- W/O
- 718172
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01005
- PipeID
- P15397
- Time
- 2:47 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5884
- Sewer Name
- H JOINT OUTFALL H - UNIT 7C
- City
- INDUSTRY
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- WO_718172_TV21087_AUG2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- H 0984
- Downstream MH
- H 0983
- Dir. of Survey
- Downstream
- Length Surveyed
- 17.8 ft.
- Total Length
- 17.8 ft.
- Structural Index
- 3
- Structural Quick
- 3300
- Structural Rating
- 9
- O&M Index
- 2
- O&M Quick
- 2300
- O&M Rating
- 6
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (3)

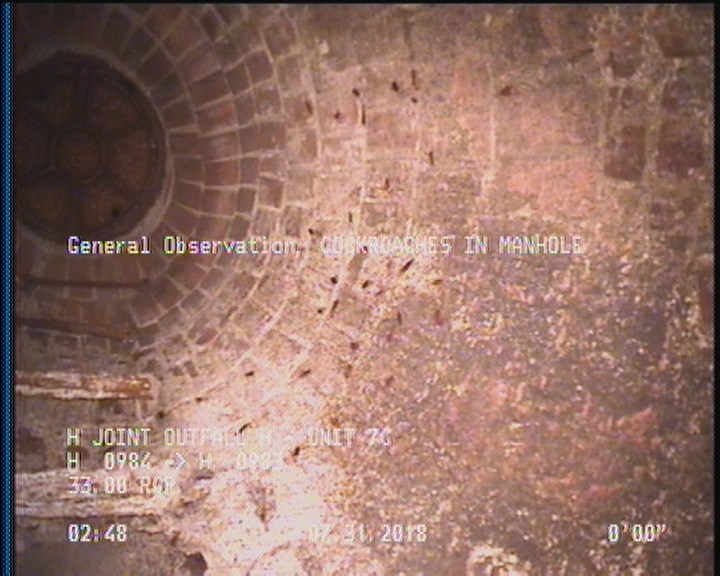

0 ft. - General Observation - COCKROACHES IN MANHOLE

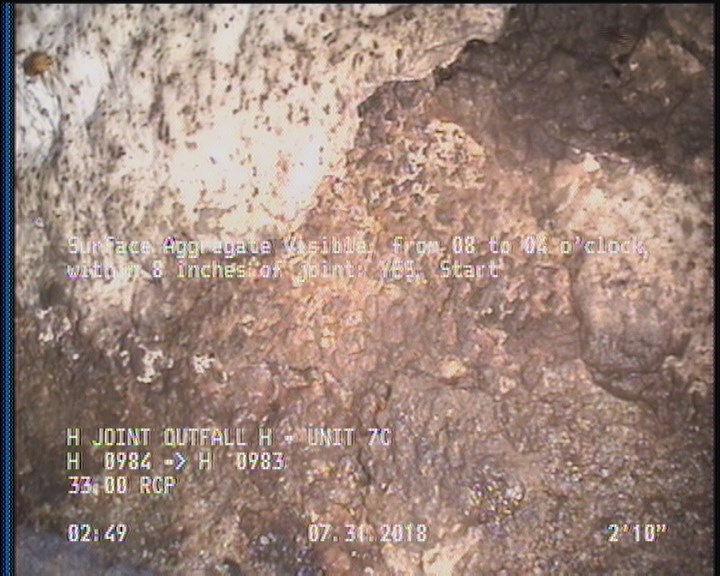

2.8 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

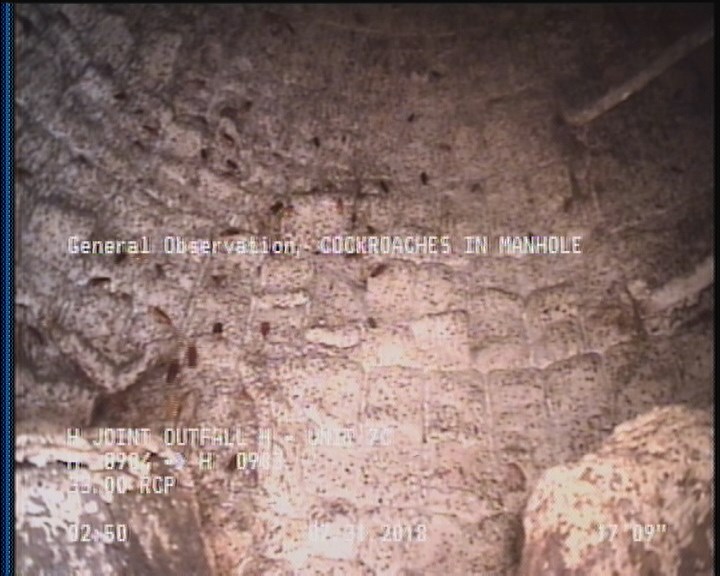

17.8 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 2.8 | SAV | — |
| 0 | MWL | — |
| 17.8 | AMH | H 0983 |
| 17.8 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWM | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 15.6 | SAV | — |
| 2 | DAGS | — |
| 0 | AMH | H 0984 |
| 15.6 | DAGS | — |
| 17.8 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MGO | MAG COATING THROUGHOUT 80% |
Properties (5)
- additional_info
- SC364752
- customer
- LACSD
- datetime
- 2018-07-31T02:47:15-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
