Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 31, 2018, 08:00 PM

  • 18 0315_18 0314_12302018_000120.mp4

Date
12/31/2018
W/O
0744636
Weather
Dry
Operator/Surveyor
Reveles
Sewer ID
Z00683
PipeID
P14148
Time
12:00 PM
Certificate
U-115-06022630
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1089
Sewer Name
18 LA MIRADA TRUNK, SECTS 1&2
City
La Mirada
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
31
Purpose
Routine Assessment
Project
12312018VMR_LA_MIRADA_TRUNK_SECTS_1AND_2
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Upstream MH
18 0315
Downstream MH
18 0314
Dir. of Survey
Downstream
Length Surveyed
57.9 ft.
Total Length
57.9 ft.
Structural Index
4
Structural Quick
5234
Structural Rating
22
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
22
Pipe schematic from manhole 18 0315 to 18 0314
MH: 18 0315MH: 18 0314downstream0 ft. AMH - Upstream Manhole, Survey Begins - 12:00 AM0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area1 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO2 ft. SAVM - Surface Aggregate Visible Mechanical, from 09 to 03 o'clock, within 8 inches of joint: NO, Start - Scatterred Mag Coat2 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start22.6 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Finish34.4 ft. SRV - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: YES - Rebar34.4 ft. SAV - Surface Aggregate Visible, from 09 to 12 o'clock, within 8 inches of joint: YES, Start38.6 ft. SRVC - Surface Reinforcement Visible Chemical, from 11 to 01 o'clock, within 8 inches of joint: NO55.8 ft. SAVM - Surface Aggregate Visible Mechanical, from 09 to 03 o'clock, within 8 inches of joint: NO, Finish57.9 ft. AMH - Upstream Manhole, Survey Ends - 12:31 AM57.9 ft. SAV - Surface Aggregate Visible, from 09 to 12 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

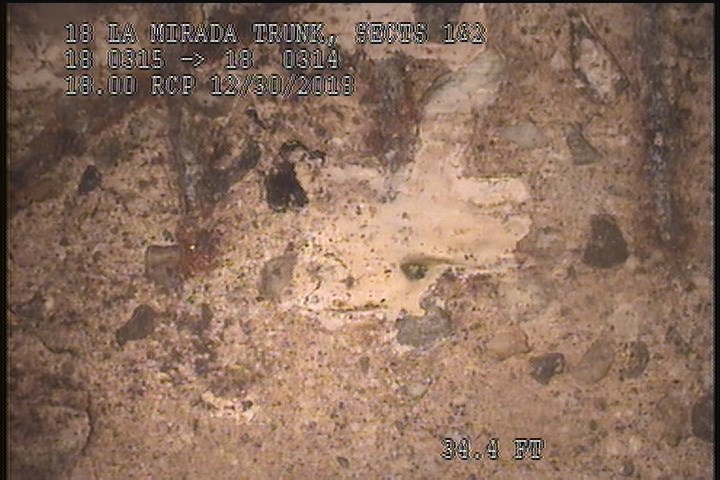

  • Surface Aggregate Visible, from 09 to 12 o'clock, within 8 inches of joint: YES, Start

    34.4 ft. - Surface Aggregate Visible, from 09 to 12 o'clock, within 8 inches of joint: YES, Start

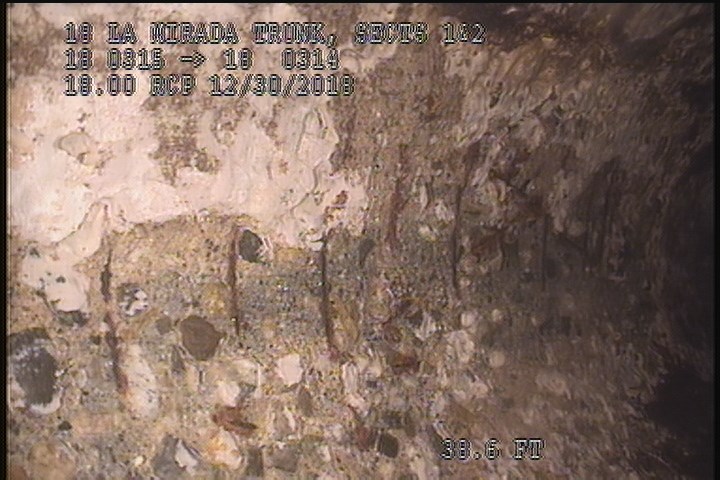

  • Surface Reinforcement Visible Chemical, from 11 to 01 o'clock, within 8 inches of joint: NO

    38.6 ft. - Surface Reinforcement Visible Chemical, from 11 to 01 o'clock, within 8 inches of joint: NO

All inspections of P14148Work order 0744636

Observations (13)

DistanceCodeObservation
0AMH12:00 AM
2SAVMScatterred Mag Coat
57.9AMH12:31 AM
0MWL—
38.6SRVC—
34.4SRVRebar
55.8SAVM—
1SAV—
22.6SAV—
34.4SAV—
57.9SAV—
2SAV—
0MWM—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-12-31T12:00:00-08:00
