Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 3, 2019, 11:23 AM

  • 15 0831_15 0830_132019_044536.mp4

Date
01/03/2019
W/O
PENDING
Weather
Dry
Operator/Surveyor
REVELES
Sewer ID
Z00593
PipeID
P13032
Time
3:23 AM
Certificate
U-115-06022630
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1094
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
SIERRA MADRE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
01
Purpose
Routine Assessment
Project
01032019VMR_ARCADIA_SIERRA_MADRE_TRUNK_SECTS_1_AND_2
Material
NRCP
Shape
Circular
Height
9.289999961853027 in.
Upstream MH
15 0831
Downstream MH
15 0830
Dir. of Survey
Downstream
Length Surveyed
231.5 ft.
Total Length
231.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 15 0831 to 15 0830
MH: 15 0831MH: 15 0830downstream0 ft. AMH - Upstream Manhole, Survey Begins - 04:53 AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 4" - Open0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: NO, Start - Liner Coating7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 2" - Open8.4 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish - Liner Coating75.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 2"82 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 2" - Open95.7 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 2", 2"231.5 ft. AMH - Downstream Manhole, Survey Ends - 05:09 AM

Observation photos (1)

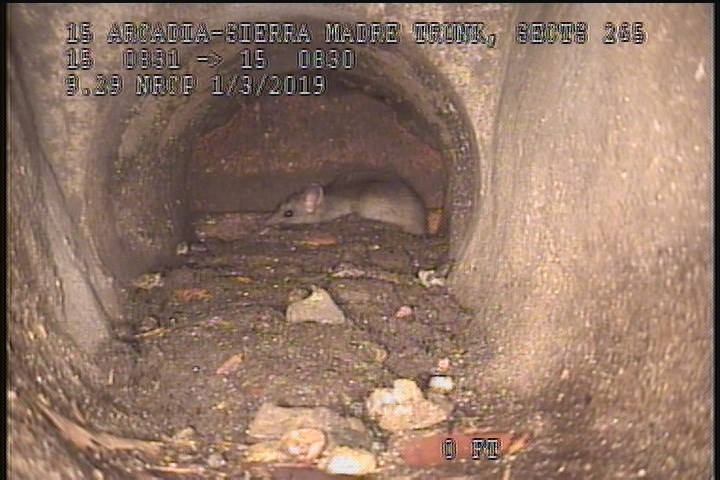

  • Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 4" - Open

    0 ft. - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 4" - Open

All inspections of P13032Work order PENDING

Observations (11)

DistanceCodeObservation
0AMH04:53 AM
231.5AMH05:09 AM
0MWM—
7TFOpen
8.4SZLiner Coating
95.7TFC—
2SZLiner Coating
82TFOpen
0TFCOpen
75.8TFC—
0MWL—

Properties (4)

custom_field_two
4
customer
LACSD
datetime
2019-01-03T03:23:17-08:00
lining
PVCP
