Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 3, 2019, 11:18 AM

  • 15 0833_15 0832_132019_040148.mp4

Date
01/03/2019
W/O
PENDING
Weather
Dry
Operator/Surveyor
REVELES
Sewer ID
Z00593
PipeID
P13034
Time
3:18 AM
Certificate
U-115-06022630
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1094
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
SIERRA MADRE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
01
Purpose
Routine Assessment
Project
01032019VMR_ARCADIA_SIERRA_MADRE_TRUNK_SECTS_1_AND_2
Material
NRCP
Shape
Circular
Height
9.289999961853027 in.
Upstream MH
15 0833
Downstream MH
15 0832
Dir. of Survey
Downstream
Length Surveyed
335.5 ft.
Total Length
335.5 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 15 0833 to 15 0832
MH: 15 0833MH: 15 0832downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: NO, Start - Coat0 ft. AMH - Upstream Manhole, Survey Begins - 04:00 AM0.1 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 2"0.1 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 4"77.3 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 2" - Open93 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: NO, 2" - Open165.5 ft. TBC - Tap Break-In Capped, at 01 o'clock, -, within 8 inches of joint: NO, 2"168.1 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 2" - Open225.5 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 2" - Open261.7 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: NO, 2" - Open265.9 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: NO, 2" - Open281.5 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: NO, 2" - Open299.6 ft. LFB - Lining Failure Blistered, from 02 to 03 o'clock, within 8 inches of joint: NO306 ft. LFB - Lining Failure Blistered, from 02 to 03 o'clock, within 8 inches of joint: NO, Start313.7 ft. LFB - Lining Failure Blistered, from 02 to 03 o'clock, within 8 inches of joint: NO, Finish317.2 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 2" - Open319.9 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: NO, 2" - Open332.2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish - Coat335.3 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 4"335.5 ft. AMH - Downstream Manhole, Survey Ends - 04:38 AM

Observation photos (2)

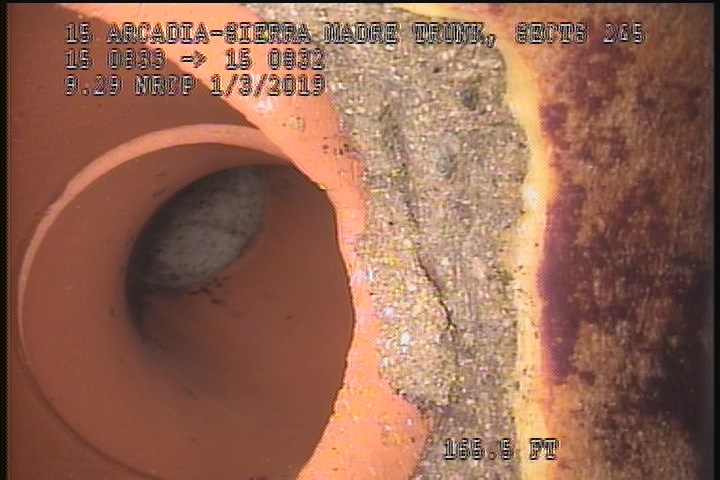

  • Tap Break-In Capped, at 01 o'clock, -, within 8 inches of joint: NO, 2"

    165.5 ft. - Tap Break-In Capped, at 01 o'clock, -, within 8 inches of joint: NO, 2"

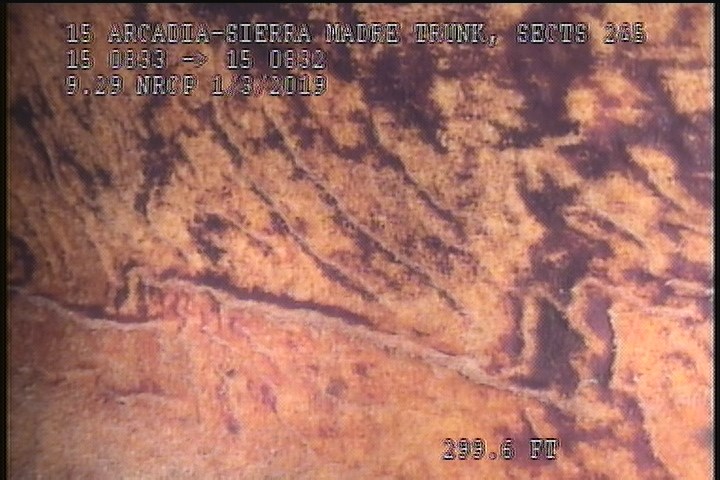

  • Lining Failure Blistered, from 02 to 03 o'clock, within 8 inches of joint: NO

    299.6 ft. - Lining Failure Blistered, from 02 to 03 o'clock, within 8 inches of joint: NO

All inspections of P13034Work order PENDING

Observations (22)

DistanceCodeObservation
165.5TBC—
317.2TBOpen
265.9TBOpen
335.3TFA—
319.9TBOpen
299.6LFB—
335.5AMH04:38 AM
225.5TBOpen
0.1TFC—
306LFB—
0MWL—
168.1TBOpen
0MWM—
0SZCoat
313.7LFB—
93TBOpen
261.7TBOpen
0AMH04:00 AM
77.3TFOpen
281.5TBOpen
0.1TFA—
332.2SZCoat

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-01-03T03:18:15-08:00
lining
CIPP
year_laid
20020918
