Wastewater/Activity/PacpInspection/1.0Aug 30, 2018, 09:16 AM
01 0698_01 0697_20180830_022824.mp4
- Date
- 08/30/2018
- W/O
- 723858
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00199
- PipeID
- P01407
- Time
- 2:16 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5991
- Sewer Name
- 01 CALIFORNIA AVENUE EXTENSION TRUNK
- City
- South Gate
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_723858_TV01117_SEP2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 01 0697
- Downstream MH
- 01 0698
- Dir. of Survey
- Upstream
- Length Surveyed
- 326.6 ft.
- Total Length
- 326.6 ft.
- Structural Index
- 3
- Structural Quick
- 5G3L
- Structural Rating
- 520
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 520
Observation photos (3)

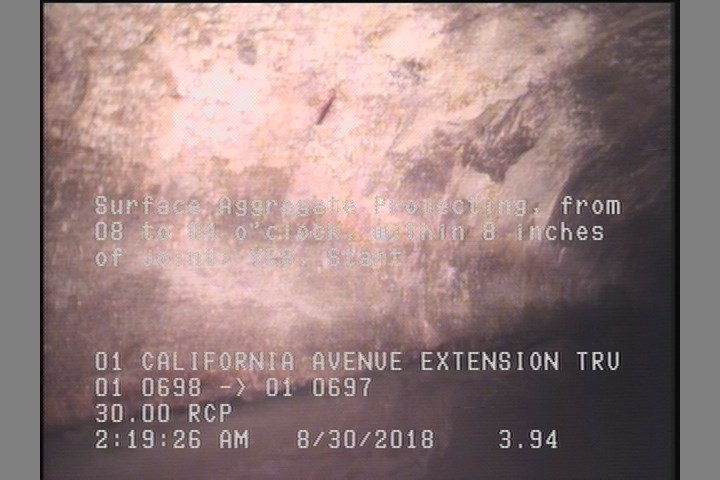

3.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

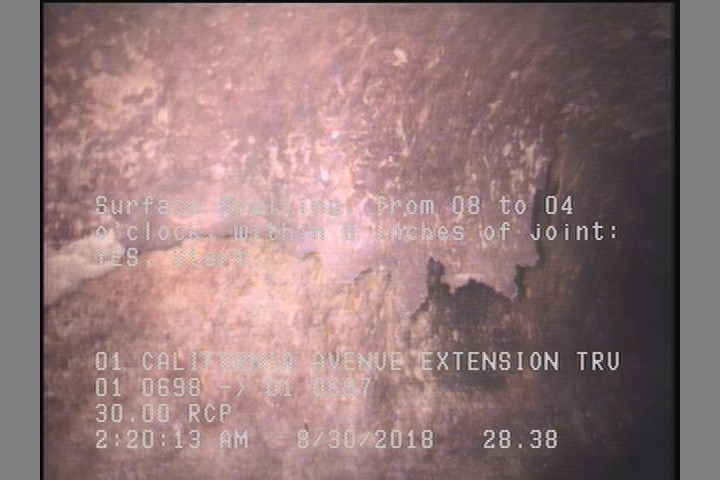

28.4 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

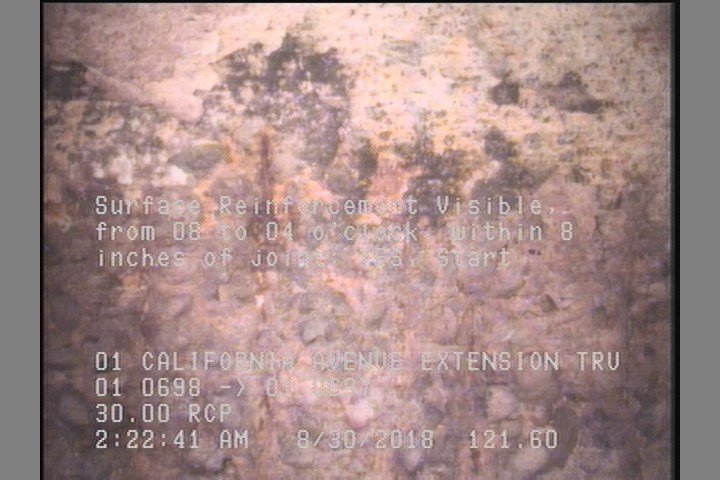

121.6 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 326.6 | SRV | — |
| 121.6 | SRV | — |
| 326.6 | AMH | 01 0698 |
| 326.6 | SAP | — |
| 28.4 | SSS | — |
| 0 | MWM | — |
| 0 | AMH | 01 0697 |
| 2.1 | MGO | MAG COAT |
| 0 | MWL | — |
| 3.9 | SAP | — |
| 326.6 | SSS | — |
Properties (6)
- additional_info
- SC364805
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-08-30T02:16:08-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
