Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 4, 2018, 08:54 AM

  • 01 0668_01 1327_20180904_015901.mp4

Date
09/04/2018
W/O
723858
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00199
PipeID
P02170
Time
1:54 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5993
Sewer Name
01 CALIFORNIA AVENUE EXTENSION TRUNK
City
LYNWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
13
Purpose
Routine Assessment
Project
WO_723858_TV01117_SEP2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Width
48 in.
Upstream MH
01 0668
Downstream MH
01 1327
Dir. of Survey
Downstream
Length Surveyed
6.9 ft.
Total Length
6.9 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 01 0668 to 01 1327
MH: 01 0668MH: 01 1327downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 01 06680 ft. MWM - Water Mark, 30 %of cross sectional area2.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.1 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start6.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish6.9 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish6.9 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK6.9 ft. AMH - Downstream Manhole, Survey Ends - 01 1327

Observation photos (2)

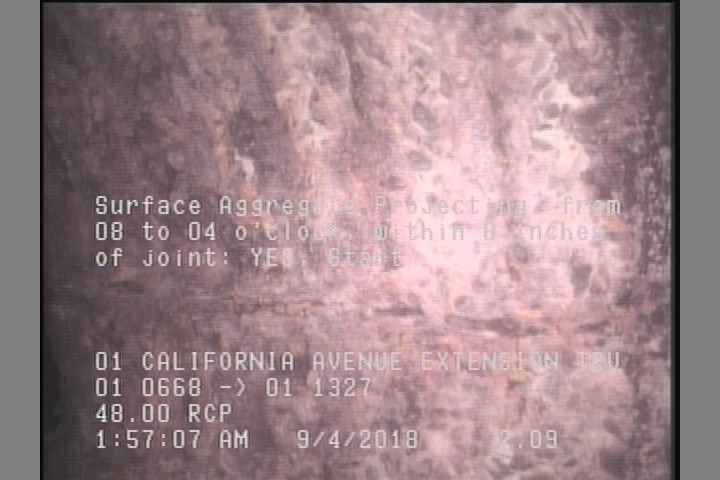

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P02170Work order 723858

Observations (10)

DistanceCodeObservation
6.9SAP—
0MWL—
0MGOCONNECTION AT MH 3 O'CLOCK
0AMH01 0668
6.9SRV—
6.9MGOCONNECTION AT MH 3 O'CLOCK
6.9AMH01 1327
2.1SAP—
0MWM—
2.1SRV—

Properties (6)

additional_info
SC364807
custom_field_two
2
customer
LACSD
datetime
2018-09-04T01:54:28-07:00
documentation
PRO PIPE
is_lateral_inspection
false
