Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 30, 2018, 08:41 AM

  • 01 0675_01 0674B_20180830_014658.mp4

Date
08/30/2018
W/O
723858
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00199
PipeID
P01384
Time
1:41 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5991
Sewer Name
01 CALIFORNIA AVENUE EXTENSION TRUNK
City
South Gate
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
14
Purpose
Routine Assessment
Project
WO_723858_TV01117_SEP2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
01 0675
Downstream MH
01 0674B
Dir. of Survey
Downstream
Length Surveyed
46.2 ft.
Total Length
46.2 ft.
Structural Index
4
Structural Quick
5939
Structural Rating
72
O&M Index
3
O&M Quick
3900
O&M Rating
27
Overall Index
4
Overall Quick
—
Overall Rating
99
Pipe schematic from manhole 01 0675 to 01 0674B
MH: 01 0675MH: 01 0674Bdownstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 01 06750 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK3.1 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.1 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Start46.2 ft. AMH - Downstream Manhole, Survey Ends - 01 0674B46.2 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: NO, Finish46.2 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish46.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

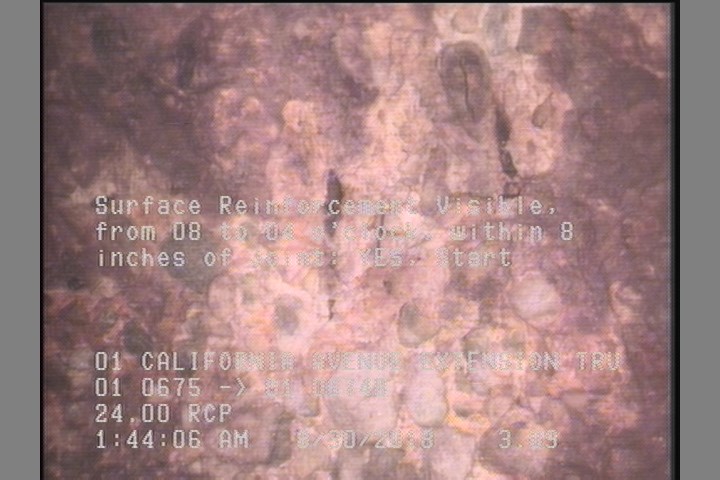

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.1 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

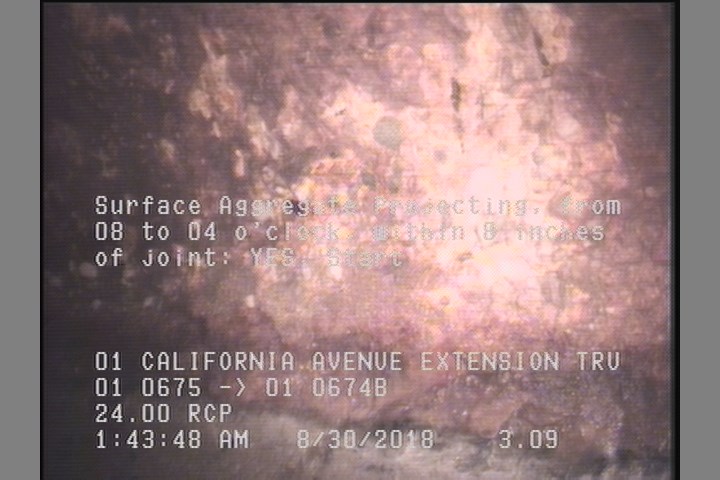

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P01384Work order 723858

Observations (12)

DistanceCodeObservation
3.1SRV—
0MWM—
3.1SAP—
0MGOCONNECTION AT MH 9 O'CLOCK
46.2AMH01 0674B
0AMH01 0675
3.1DSZ—
46.2DSZ—
46.2SRV—
46.2SAP—
0MWL—
0MGOCONNECTION AT MH 3 O'CLOCK

Properties (6)

additional_info
SC364805
custom_field_two
2
customer
LACSD
datetime
2018-08-30T01:41:12-07:00
documentation
PRO PIPE
is_lateral_inspection
false
