Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 4, 2018, 10:42 AM

  • H 0107_01 0715_20180904_034739.mp4

Date
09/04/2018
W/O
723858
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00199
PipeID
P02173
Time
3:42 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5993
Sewer Name
01 CALIFORNIA AVENUE EXTENSION TRUNK
City
South Gate
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Routine Assessment
Project
WO_723858_TV01117_SEP2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Width
36 in.
Upstream MH
H 0107
Downstream MH
01 0715
Dir. of Survey
Downstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
4
Structural Quick
5131
Structural Rating
8
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
4
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole H 0107 to 01 0715
MH: H 0107MH: 01 0715downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 01070 ft. MWL - Water Level, 10 %of cross sectional area2.1 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES2.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO2.1 ft. AMH - Downstream Manhole, Survey Ends - 01 0715 ZOOMED IN2.1 ft. DSZ - Deposits Settled Other, 20 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - HEAVY SLUDGE

Observation photos (2)

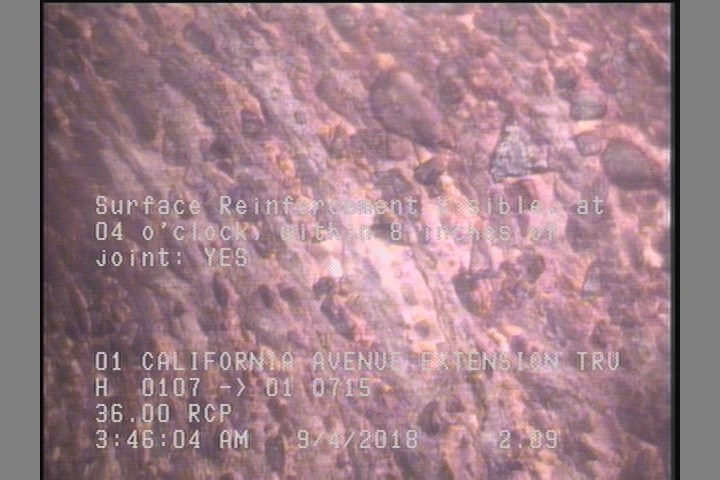

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

    2.1 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

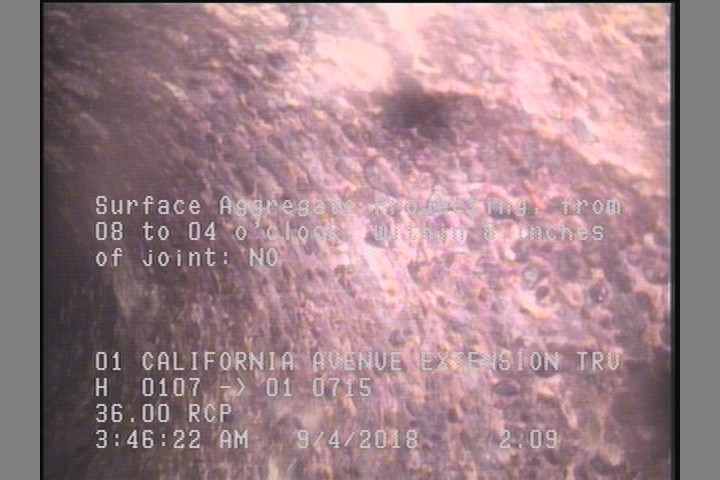

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO

    2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO

All inspections of P02173Work order 723858

Observations (7)

DistanceCodeObservation
0MWM—
0AMHH 0107
2.1SRV—
0MWL—
2.1SAP—
2.1AMH01 0715 ZOOMED IN
2.1DSZHEAVY SLUDGE

Properties (6)

additional_info
SC364807
custom_field_two
2
customer
LACSD
datetime
2018-09-04T03:42:40-07:00
documentation
PRO PIPE
is_lateral_inspection
false
