Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 30, 2018, 08:02 AM

  • 01 0677_01 0676_20180830_011746.mp4

Date
08/30/2018
W/O
723858
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00199
PipeID
P01386
Time
1:02 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5991
Sewer Name
01 CALIFORNIA AVENUE EXTENSION TRUNK
City
South Gate
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
14
Purpose
Routine Assessment
Project
WO_723858_TV01117_SEP2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
01 0677
Downstream MH
01 0676
Dir. of Survey
Downstream
Length Surveyed
469.2 ft.
Total Length
469.2 ft.
Structural Index
4
Structural Quick
5Q3R
Structural Rating
729
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
729
Pipe schematic from manhole 01 0677 to 01 0676
MH: 01 0677MH: 01 0676downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 06773.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.1 ft. MGO - General Observation - MAG COAT20.5 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start469.2 ft. AMH - Downstream Manhole, Survey Ends - 01 0676469.2 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish469.2 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK469.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish469.2 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK

Observation photos (2)

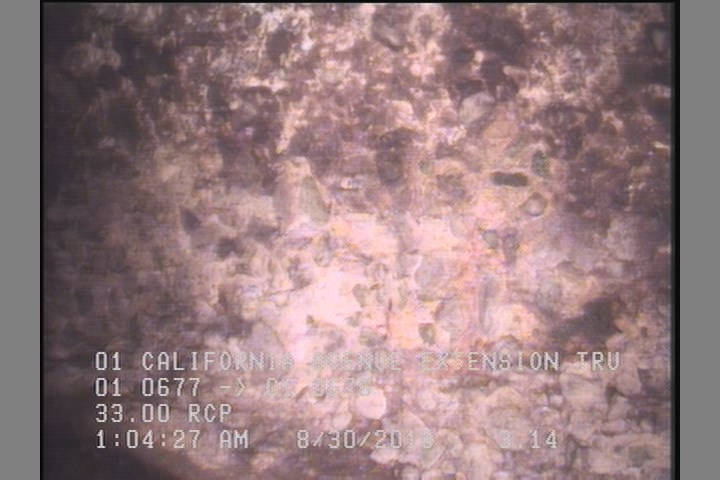

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

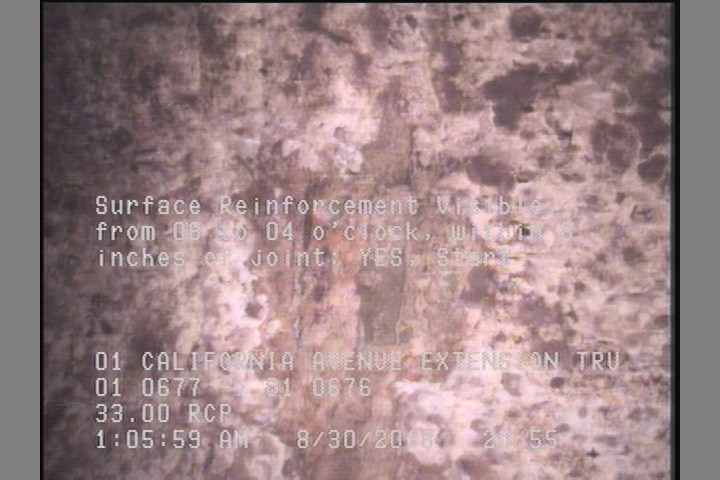

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    20.5 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P01386Work order 723858

Observations (11)

DistanceCodeObservation
3.1SAP—
0MWL—
469.2AMH01 0676
0MWM—
469.2SRV—
469.2MGOCONNECTION AT MH 9 O'CLOCK
469.2SAP—
3.1MGOMAG COAT
0AMH01 0677
20.5SRV—
469.2MGOCONNECTION AT MH 3 O'CLOCK

Properties (6)

additional_info
SC364805
custom_field_two
2
customer
LACSD
datetime
2018-08-30T01:02:09-07:00
documentation
PRO PIPE
is_lateral_inspection
false
