Wastewater/Activity/PacpInspection/1.0Aug 24, 2018, 09:47 AM
01 0689_01 0688_20180824_025704.mp4
- Date
- 08/24/2018
- W/O
- 723858
- Weather
- Dry
- Operator/Surveyor
- N.ZAHREDDINE
- Sewer ID
- Z00199
- PipeID
- P01398
- Time
- 2:47 AM
- Certificate
- U-109-7948
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6060
- Sewer Name
- 01 CALIFORNIA AVENUE EXTENSION TRUNK
- City
- South Gate
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_723858_TV01117_SEP2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- 01 0689
- Downstream MH
- 01 0688
- Dir. of Survey
- Downstream
- Length Surveyed
- 281.1 ft.
- Total Length
- 281.1 ft.
- Structural Index
- 4
- Structural Quick
- 5132
- Structural Rating
- 11
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (3)

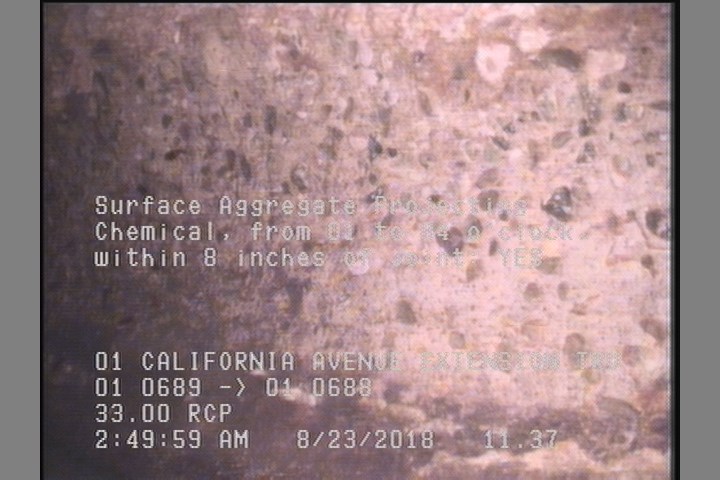

11.4 ft. - Surface Aggregate Projecting, from 01 to 04 o'clock, within 8 inches of joint: NO

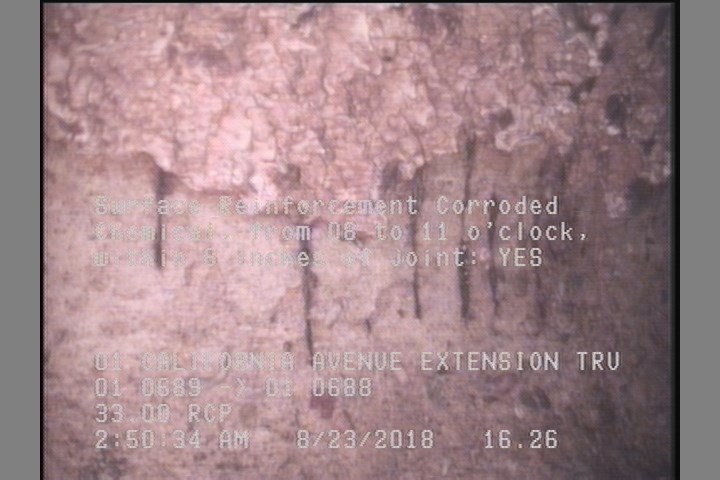

16.3 ft. - Surface Reinforcement Corroded, from 08 to 11 o'clock, within 8 inches of joint: NO

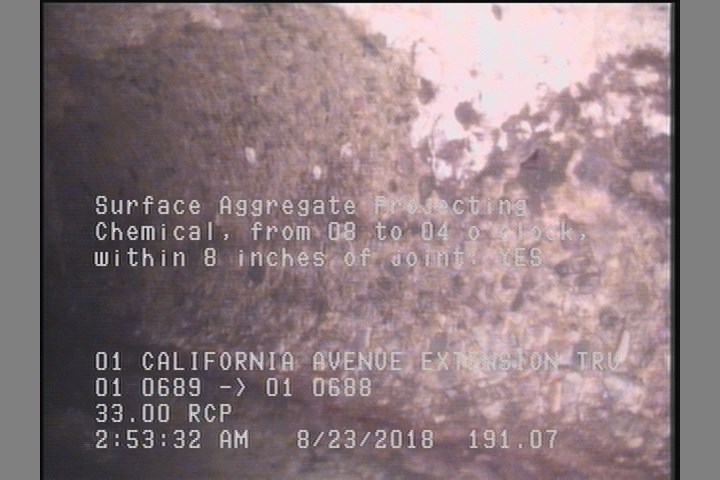

191.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: NO
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 281.1 | AMH | 01 0688 |
| 0 | AMH | 01 0689 |
| 191.1 | SAP | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 16.3 | SRC | — |
| 11.4 | SAP | — |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-08-24T02:47:11-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
