Wastewater/Activity/PacpInspection/1.0Sep 4, 2018, 09:28 AM
G 0196_01 0668_20180904_023635.mp4
- Date
- 09/04/2018
- W/O
- 723858
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00199
- PipeID
- P19970
- Time
- 2:28 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5993
- Sewer Name
- 01 CALIFORNIA AVENUE EXTENSION TRUNK
- City
- LYNWOOD
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_723858_TV01117_SEP2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- G 0196
- Downstream MH
- 01 0668
- Dir. of Survey
- Downstream
- Length Surveyed
- 8.7 ft.
- Total Length
- 8.7 ft.
- Structural Index
- 3
- Structural Quick
- 4121
- Structural Rating
- 6
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

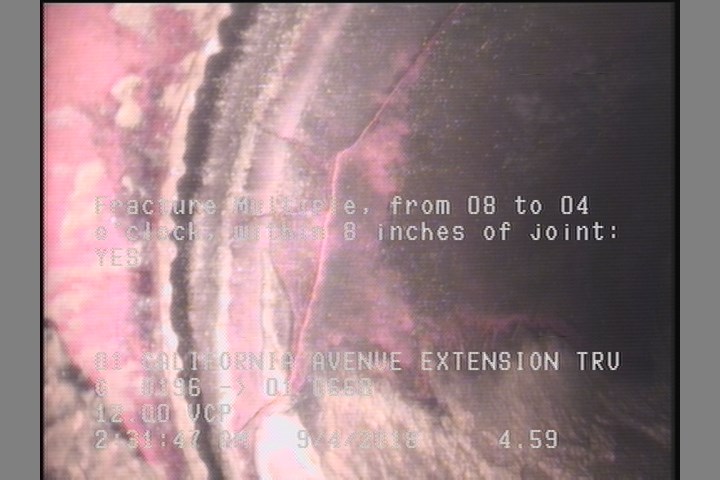

4.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

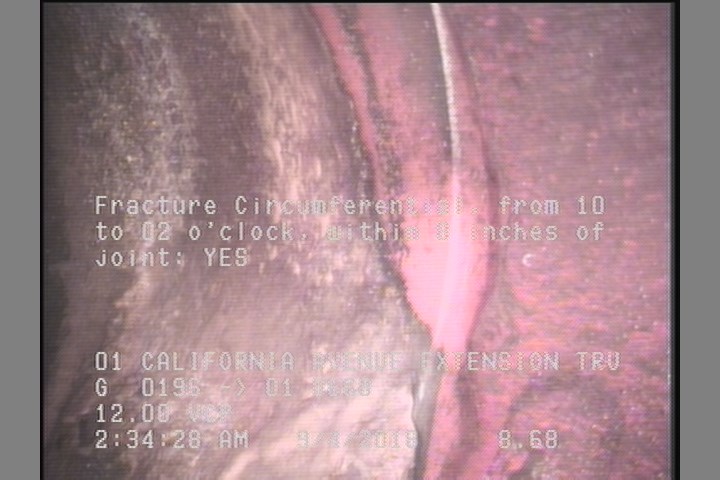

8.7 ft. - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES

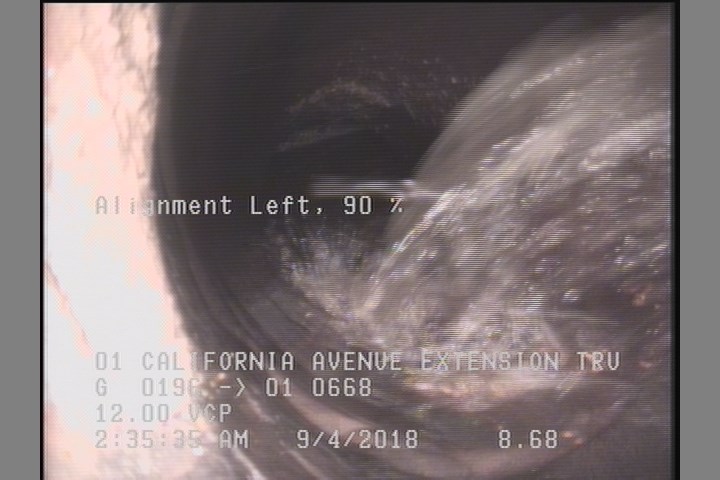

8.7 ft. - Alignment Left, 90 %
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 4.6 | FM | — |
| 8.7 | FC | — |
| 8.7 | LL | — |
| 0 | AMH | G 0196 |
| 8.7 | AMH | 01 0668 ZOOMED IN |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC364807
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-09-04T02:28:43-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
