Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 30, 2018, 07:46 AM

  • 01 0678_01 0677_20180830_010120.mp4

Date
08/30/2018
W/O
723858
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00199
PipeID
P01387
Time
12:46 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5991
Sewer Name
01 CALIFORNIA AVENUE EXTENSION TRUNK
City
South Gate
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
14
Purpose
Routine Assessment
Project
WO_723858_TV01117_SEP2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
33 in.
Width
33 in.
Upstream MH
01 0678
Downstream MH
01 0677
Dir. of Survey
Downstream
Length Surveyed
369.6 ft.
Total Length
369.6 ft.
Structural Index
4
Structural Quick
5H3N
Structural Rating
439
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
439
Pipe schematic from manhole 01 0678 to 01 0677
MH: 01 0678MH: 01 0677downstream0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 06780 ft. MWL - Water Level, 20 %of cross sectional area3.4 ft. MGO - General Observation - MAG COAT4.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start147.1 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start369.6 ft. AMH - Downstream Manhole, Survey Ends - 01 0677369.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish369.6 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

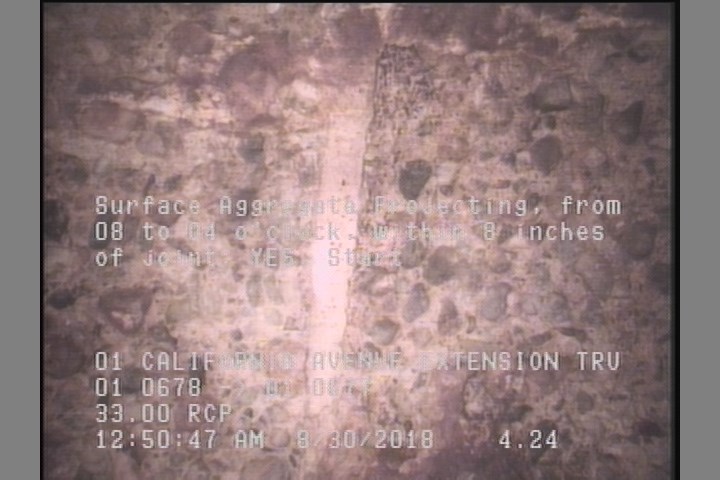

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

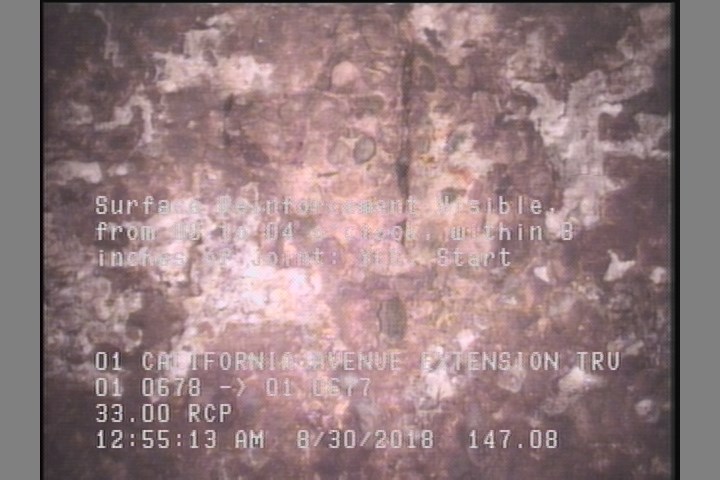

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    147.1 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P01387Work order 723858

Observations (9)

DistanceCodeObservation
0MWM—
0AMH01 0678
147.1SRV—
369.6AMH01 0677
3.4MGOMAG COAT
369.6SAP—
369.6SRV—
0MWL—
4.2SAP—

Properties (6)

additional_info
SC364805
custom_field_two
2
customer
LACSD
datetime
2018-08-30T00:46:39-07:00
documentation
PRO PIPE
is_lateral_inspection
false
