Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 9, 2018, 08:44 AM

  • 04 0049A_04 0049 _09102018_014558.mp4

Date
10/09/2018
W/O
729373
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00412
PipeID
P11779
Time
1:44 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6159
Sewer Name
04 LA CIENEGA BOULEVARD TRUNK
City
WEST HOLLYWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
03
Purpose
Routine Assessment
Project
RFIR_WO_729373_TV04019_OCT2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
04 0049A
Downstream MH
04 0049
Dir. of Survey
Downstream
Length Surveyed
154.5 ft.
Total Length
154.5 ft.
Structural Index
3
Structural Quick
5241
Structural Rating
101
O&M Index
2
O&M Quick
412E
O&M Rating
64
Overall Index
3
Overall Quick
—
Overall Rating
165
Pipe schematic from manhole 04 0049A to 04 0049
MH: 04 0049AMH: 04 0049downstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 04 00490 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start6.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"43.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"46.3 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"46.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"86.2 ft. HVV - Hole Void Visible, from 09 to 12 o'clock, within 8 inches of joint: YES87.4 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"90.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"91.1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES128.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"137.8 ft. HSV - Hole Soil Visible, at 11 o'clock, within 8 inches of joint: YES139.7 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"141.4 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"153.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish153.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish154.5 ft. AMH - Downstream Manhole, Survey Ends - 04 0049154.5 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (7)

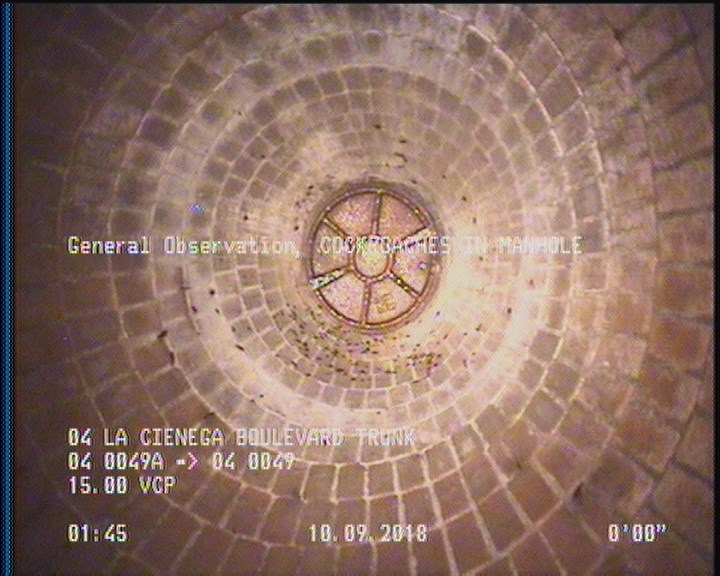

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

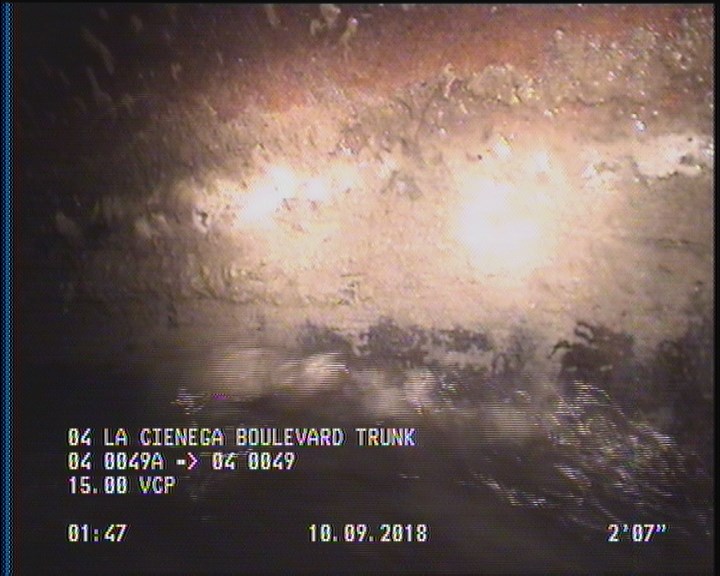

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

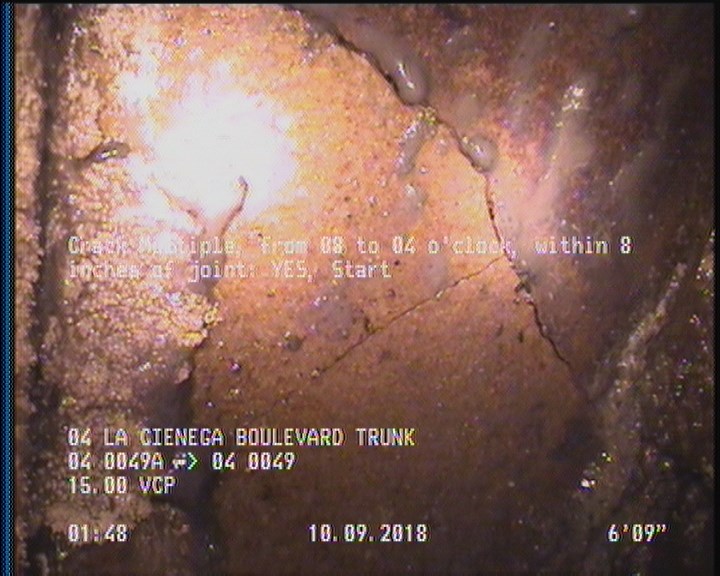

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

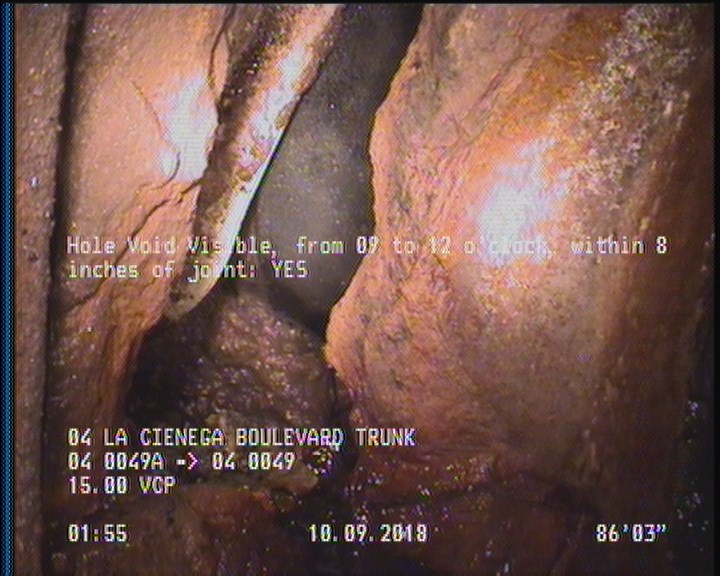

  • Hole Void Visible, from 09 to 12 o'clock, within 8 inches of joint: YES

    86.2 ft. - Hole Void Visible, from 09 to 12 o'clock, within 8 inches of joint: YES

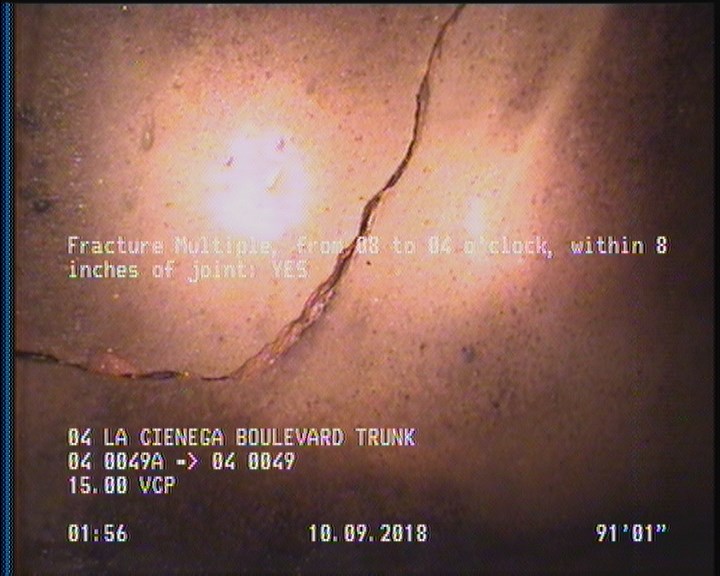

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    91.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

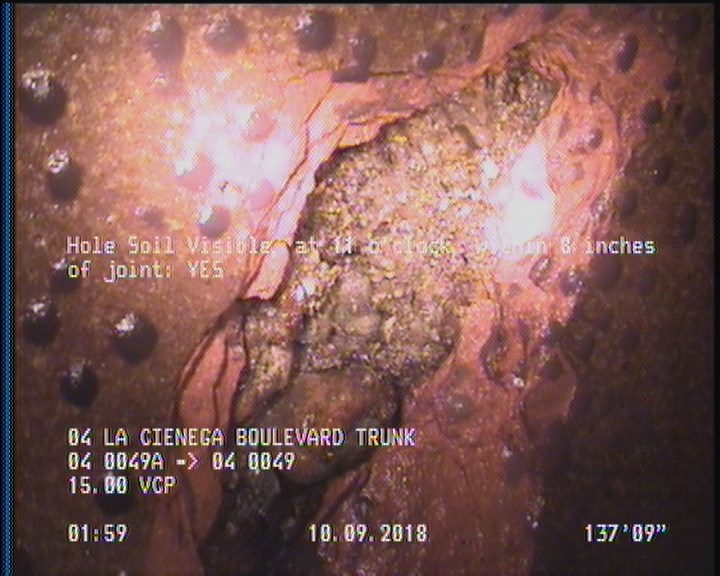

  • Hole Soil Visible, at 11 o'clock, within 8 inches of joint: YES

    137.8 ft. - Hole Soil Visible, at 11 o'clock, within 8 inches of joint: YES

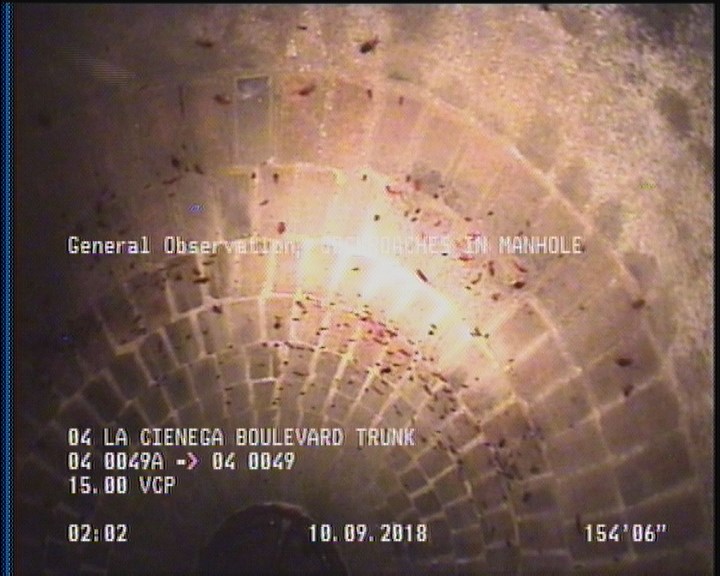

  • General Observation - COCKROACHES IN MANHOLE

    154.5 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P11779Work order 729373

Observations (23)

DistanceCodeObservation
46.5TFA—
137.8HSV—
0MGOCOCKROACHES IN MANHOLE
139.7TBA—
2DAGS—
46.3TBA—
86.2HVV—
91.1FM—
141.4TFA—
6.8CM—
9TFA—
0MWL—
0AMH04 0049
153.8CM—
43.9TFC—
90.3TFA—
154.5AMH04 0049
87.4TFA—
128.8TFC—
154.5MGOCOCKROACHES IN MANHOLE
0MWM—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
153.8DAGS—

Properties (4)

additional_info
SC365127
custom_field_two
2
customer
LACSD
datetime
2018-10-09T01:44:51-07:00
