Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 9, 2018, 05:42 AM

  • 04 0069_04 0068_08102018_224305.mp4

Date
10/08/2018
W/O
729372
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00415
PipeID
P11804
Time
10:42 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6156
Sewer Name
04 SHERMAN TRUNK
City
WEST HOLLYWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 04
Page No.
03
Purpose
Routine Assessment
Project
RFIR_WO_729372_TV04022_OCT2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
04 0069
Downstream MH
04 0068
Dir. of Survey
Downstream
Length Surveyed
283.6 ft.
Total Length
283.6 ft.
Structural Index
4
Structural Quick
5233
Structural Rating
19
O&M Index
2
O&M Quick
2J00
O&M Rating
112
Overall Index
2
Overall Quick
—
Overall Rating
131
Pipe schematic from manhole 04 0069 to 04 0068
MH: 04 0069MH: 04 0068downstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 6 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 04 00690 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES26.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"31.6 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"64.7 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: NO, 6"85.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"103.4 ft. CM - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES106.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"145.8 ft. HSV - Hole Soil Visible, at 12 o'clock, within 8 inches of joint: YES145.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"184.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"190.3 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"205 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"221 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES224.1 ft. HSV - Hole Soil Visible, at 12 o'clock, within 8 inches of joint: YES226.2 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"226.8 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 6"281.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish283.6 ft. MGO - General Observation - COCKROACHES IN MANHOLE283.6 ft. AMH - Downstream Manhole, Survey Ends - 04 0068283.6 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK

Observation photos (6)

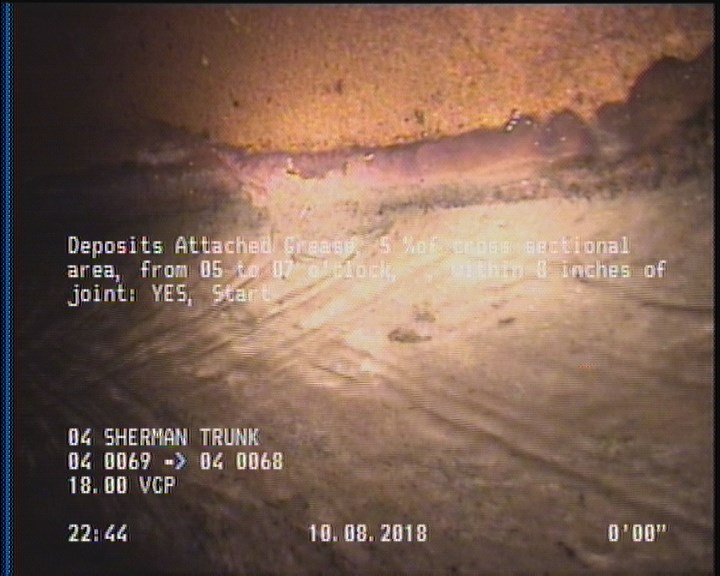

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

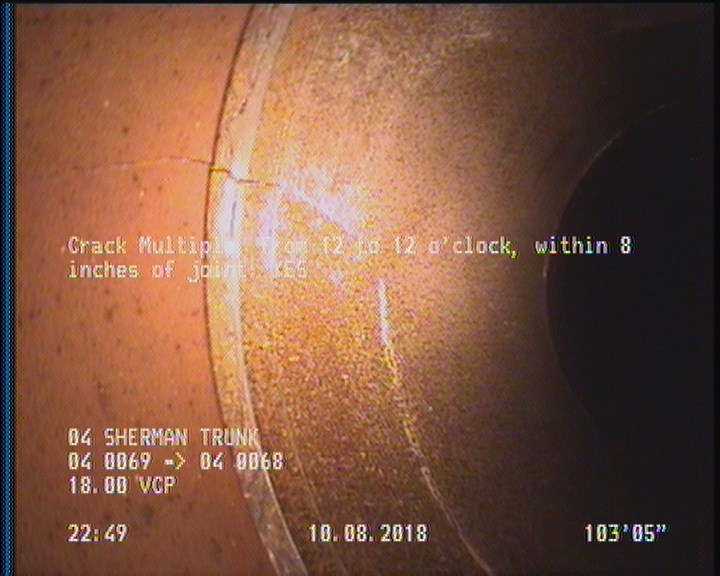

  • Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

    103.4 ft. - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

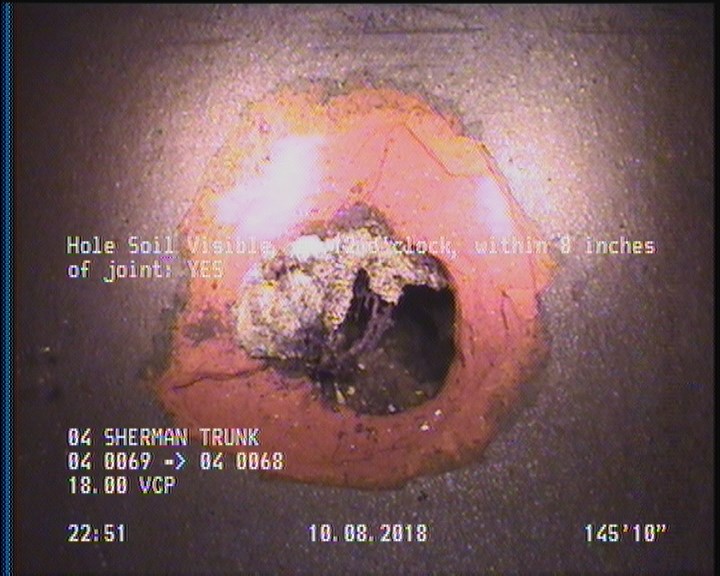

  • Hole Soil Visible, at 12 o'clock, within 8 inches of joint: YES

    145.8 ft. - Hole Soil Visible, at 12 o'clock, within 8 inches of joint: YES

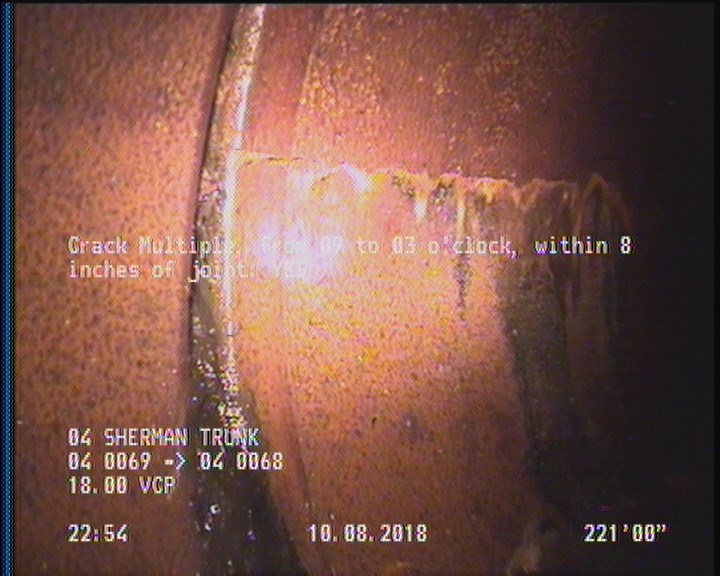

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    221 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

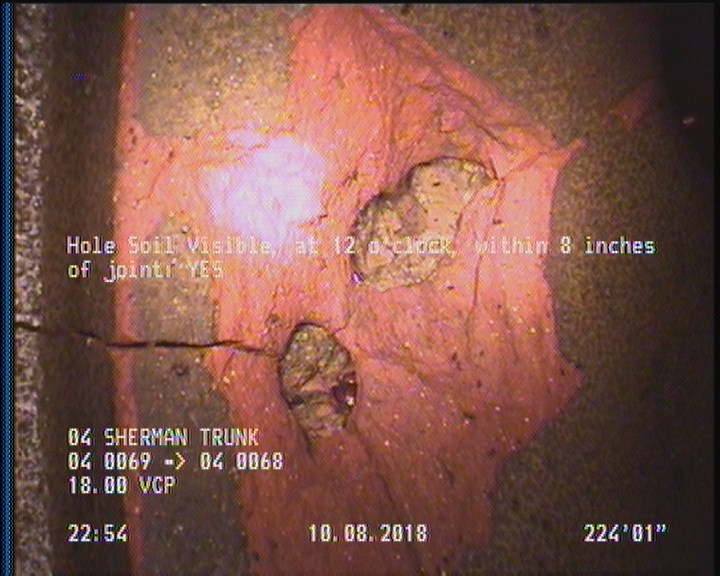

  • Hole Soil Visible, at 12 o'clock, within 8 inches of joint: YES

    224.1 ft. - Hole Soil Visible, at 12 o'clock, within 8 inches of joint: YES

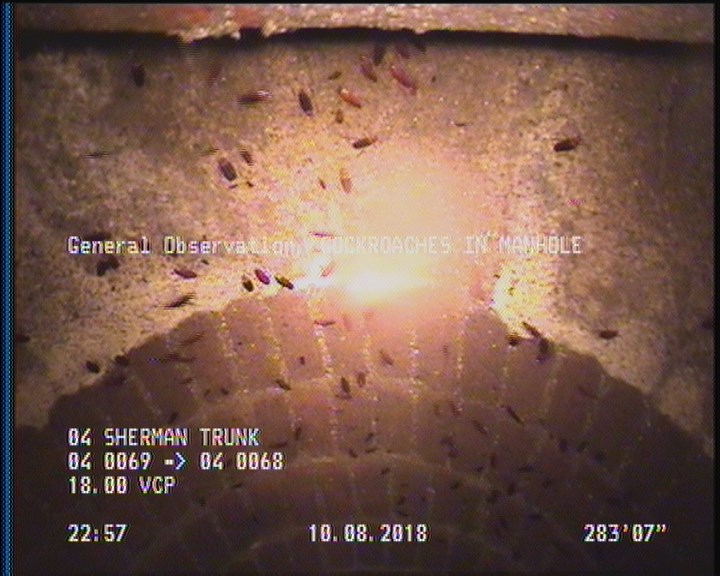

  • General Observation - COCKROACHES IN MANHOLE

    283.6 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P11804Work order 729372

Observations (25)

DistanceCodeObservation
0MGOACTIVE CONNECTION AT MH 6 O'CLOCK
106.1TFC—
205TFC—
281.9DAGS—
145.8HSV—
85.3TFC—
283.6MGOCOCKROACHES IN MANHOLE
26.3TF—
221CM—
3CM—
64.7TF—
2DAGS—
184.9TFC—
224.1HSV—
103.4CM—
0AMH04 0069
31.6TBA—
190.3TBA—
145.8TF—
226.2TFC—
226.8TBA—
0MWM—
283.6AMH04 0068
0MWL—
283.6MGOACTIVE CONNECTION AT MH 9 O'CLOCK

Properties (4)

additional_info
SC365124
custom_field_two
3
customer
LACSD
datetime
2018-10-08T22:42:24-07:00
