Wastewater/Activity/PacpInspection/1.0Sep 21, 2018, 08:10 AM
E 0022_E 0021_09212018_011033.mp4
- Date
- 09/21/2018
- W/O
- 724206
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00027
- PipeID
- P07603
- Time
- 1:10 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6038
- Sewer Name
- E JOINT OUTFALL E - UNIT 1
- City
- COMPTON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_724206_TV30070_SEP2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Width
- 42 in.
- Upstream MH
- E 0022
- Downstream MH
- E 0021
- Dir. of Survey
- Downstream
- Length Surveyed
- 412.7 ft.
- Total Length
- 412.7 ft.
- Structural Index
- 3
- Structural Quick
- 3O00
- Structural Rating
- 246
- O&M Index
- 2
- O&M Quick
- 2\00
- O&M Rating
- 288
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 534
Observation photos (3)

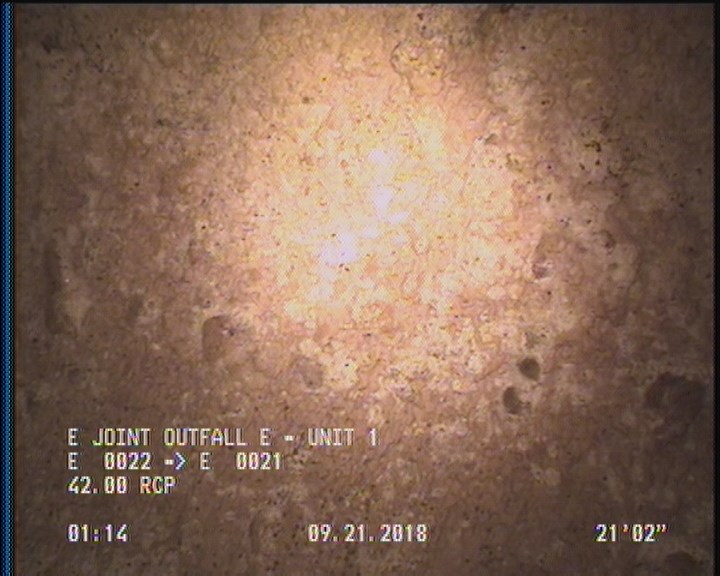

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

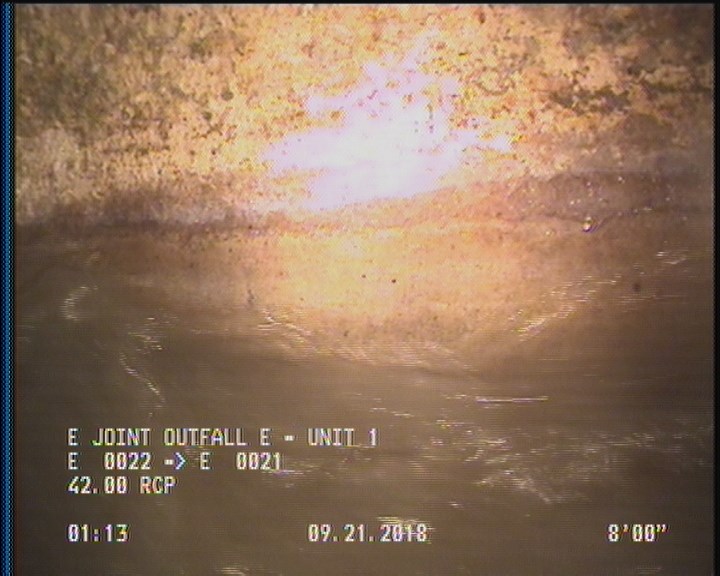

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

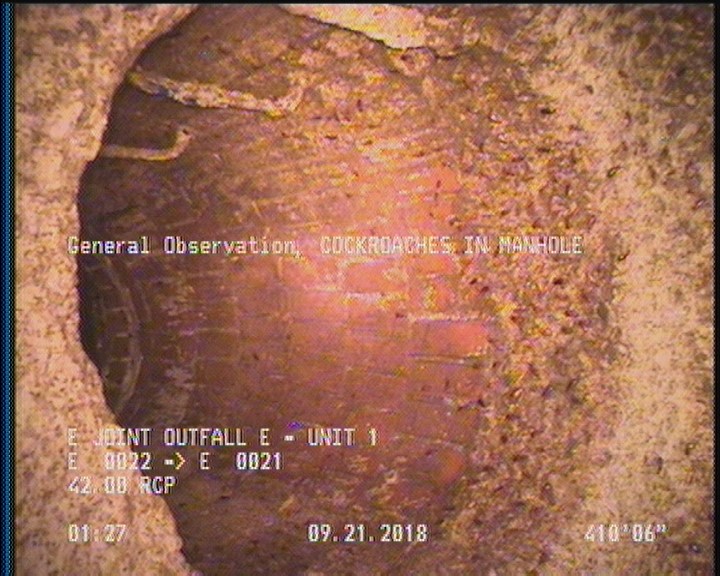

410.5 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 412.7 | AMH | E 0021 |
| 0 | MWL | — |
| 410.5 | MGO | COCKROACHES IN MANHOLE |
| 410.5 | DSZ | — |
| 410.5 | DAGS | — |
| 99.6 | DSZ | DEBRIS |
| 0 | AMH | E 0022 |
| 0 | MWM | — |
| 2 | SAP | — |
| 2 | DAGS | — |
| 410.5 | SAP | — |
| 221.2 | TBA | — |
Properties (4)
- additional_info
- SC364836
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-21T01:10:24-07:00
