Wastewater/Activity/PacpInspection/1.0Sep 21, 2018, 07:55 AM
E 0023_E 0022_09212018_005508.mp4
- Date
- 09/21/2018
- W/O
- 724206
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00027
- PipeID
- P07604
- Time
- 12:55 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6038
- Sewer Name
- E JOINT OUTFALL E - UNIT 1
- City
- COMPTON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- WO_724206_TV30070_SEP2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 42 in.
- Width
- 42 in.
- Upstream MH
- E 0023
- Downstream MH
- E 0022
- Dir. of Survey
- Downstream
- Length Surveyed
- 396.3 ft.
- Total Length
- 396.3 ft.
- Structural Index
- 3
- Structural Quick
- 3O2O
- Structural Rating
- 390
- O&M Index
- 2
- O&M Quick
- 2O00
- O&M Rating
- 158
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 548
Observation photos (3)

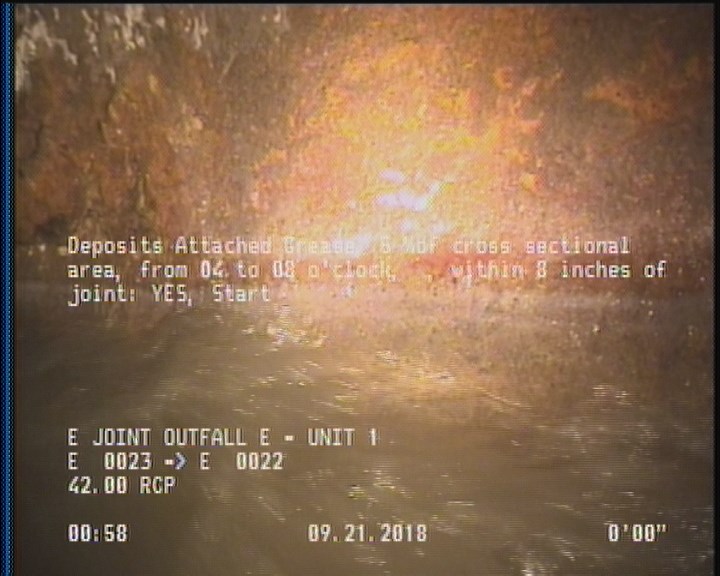

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

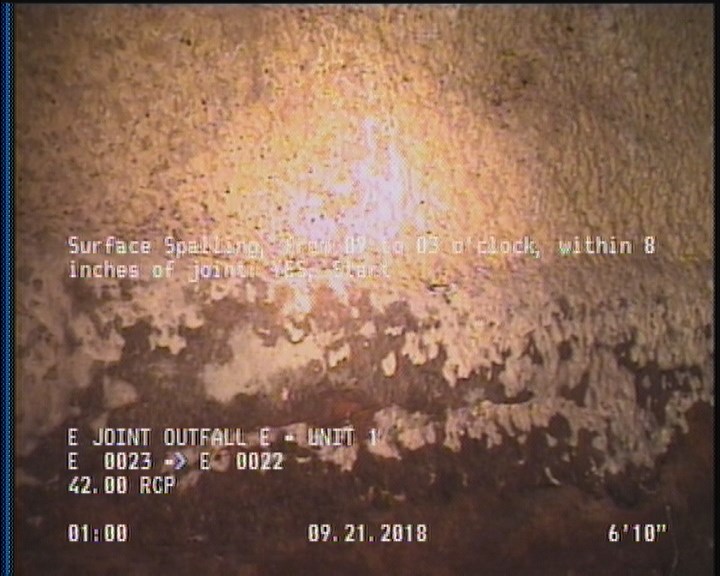

6.9 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

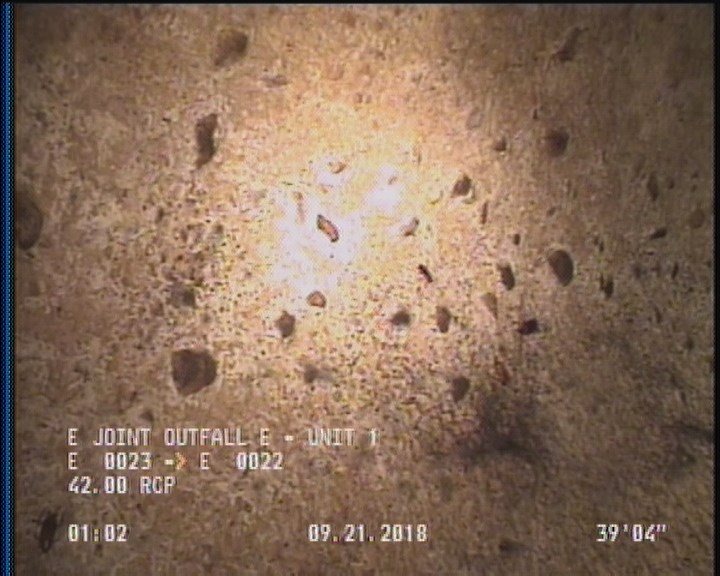

6.9 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 6.9 | SSS | — |
| 0 | MWL | — |
| 0 | AMH | E 0023 |
| 394.6 | SAP | — |
| 394.6 | SSS | — |
| 394.6 | DAGS | — |
| 396.3 | AMH | E 0022 |
| 0 | MWM | — |
| 6.9 | SAP | — |
| 2 | DAGS | — |
Properties (4)
- additional_info
- SC364836
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-09-21T00:55:02-07:00
