Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 20, 2018, 07:16 AM

  • 30 0156_30 0155 _19112018_231657.mp4

Date
11/19/2018
W/O
735497
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00878
PipeID
P17861
Time
11:16 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6225
Sewer Name
30 SOUTH BAY CITIES MAIN TRUNK
City
REDONDO BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
07
Purpose
Routine Assessment
Project
RFIR_WO_735497_TV30073_NOV2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
30 0155
Downstream MH
30 0156
Dir. of Survey
Upstream
Length Surveyed
359.8 ft.
Total Length
359.8 ft.
Structural Index
3
Structural Quick
3M00
Structural Rating
210
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
211
Pipe schematic from manhole 30 0155 to 30 0156
MH: 30 0155MH: 30 0156upstream0 ft. AMH - Upstream Manhole, Survey Ends - 30 01564.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish31.1 ft. RFJ - Roots Fine Joint, from 01 to 05 o'clock, within 8 inches of joint: YES54.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"118.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"177.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"237.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"297.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"355.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start359.8 ft. MWM - Water Mark, 20 %of cross sectional area359.8 ft. AMH - Downstream Manhole, Survey Begins - 30 0155359.8 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK359.8 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (2)

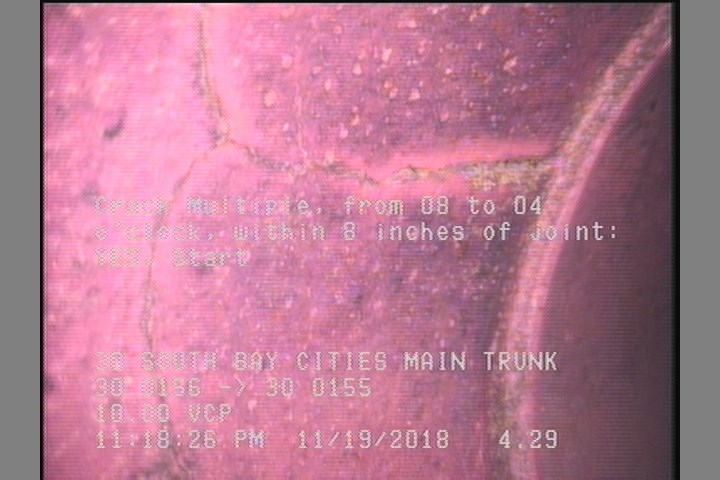

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

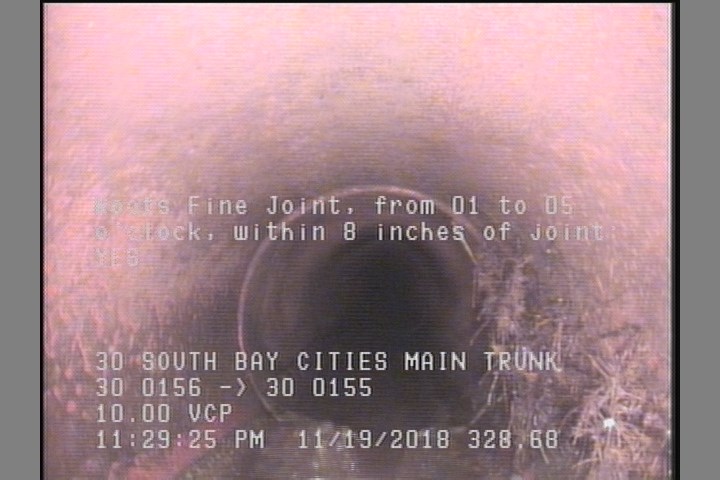

  • Roots Fine Joint, from 01 to 05 o'clock, within 8 inches of joint: YES

    328.7 ft. - Roots Fine Joint, from 01 to 05 o'clock, within 8 inches of joint: YES

All inspections of P17861Work order 735497

Observations (13)

DistanceCodeObservation
0MWM—
328.7RFJ—
355.7CM—
241.4TF—
305.5TF—
62.7TF—
0AMH30 0155
359.8AMH30 0156
182.2TF—
0MGOCONNECTION AT MH 9 O'CLOCK
122.7TF—
4.3CM—
0MWL—

Properties (4)

additional_info
SC365453
custom_field_two
3
customer
LACSD
datetime
2018-11-19T23:16:30-08:00
