Wastewater/Activity/PacpInspection/1.0Oct 2, 2018, 07:43 AM
16 0160_16 0159_10022018_004441.mp4
- Date
- 10/02/2018
- W/O
- 729322
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00648
- PipeID
- P13192
- Time
- 12:43 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6054
- Sewer Name
- 16 ARROYO SECO TRUNK, SECTION 5
- City
- SAN MARINO
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729322_TV16111_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 16 0160
- Downstream MH
- 16 0159
- Dir. of Survey
- Downstream
- Length Surveyed
- 271.3 ft.
- Total Length
- 271.3 ft.
- Structural Index
- 3
- Structural Quick
- 473H
- Structural Rating
- 169
- O&M Index
- 2
- O&M Quick
- 2J00
- O&M Rating
- 108
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 277
Observation photos (5)

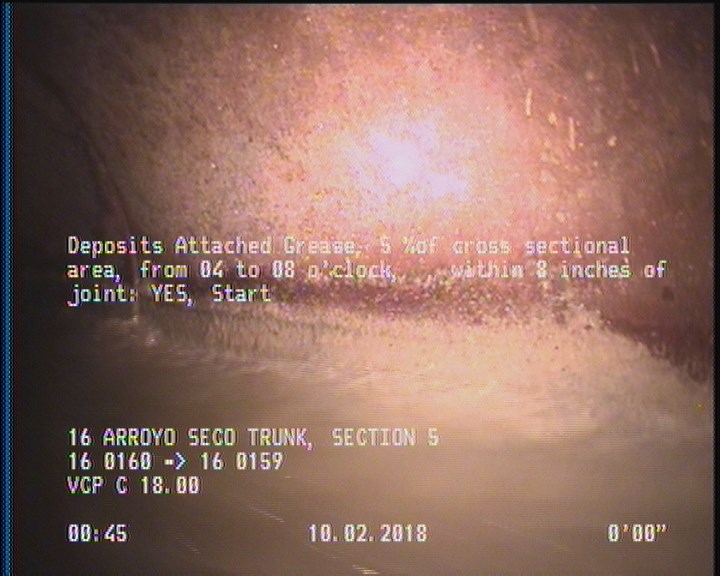

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

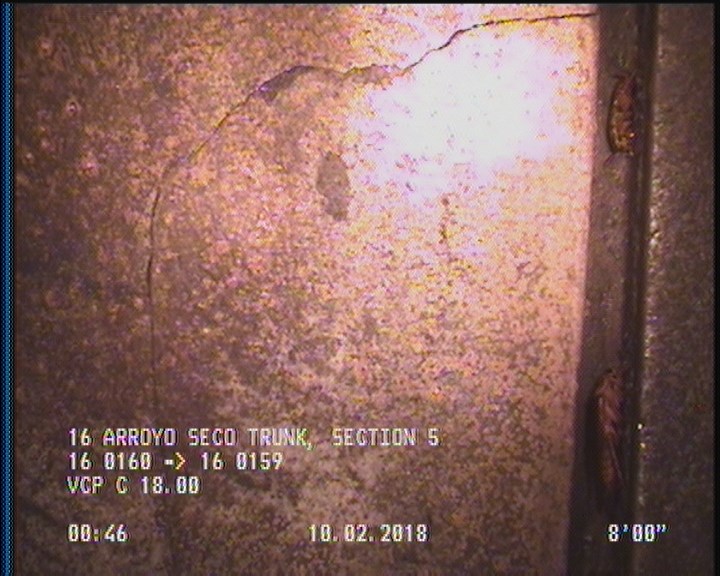

6.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
241.8 ft. - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Start

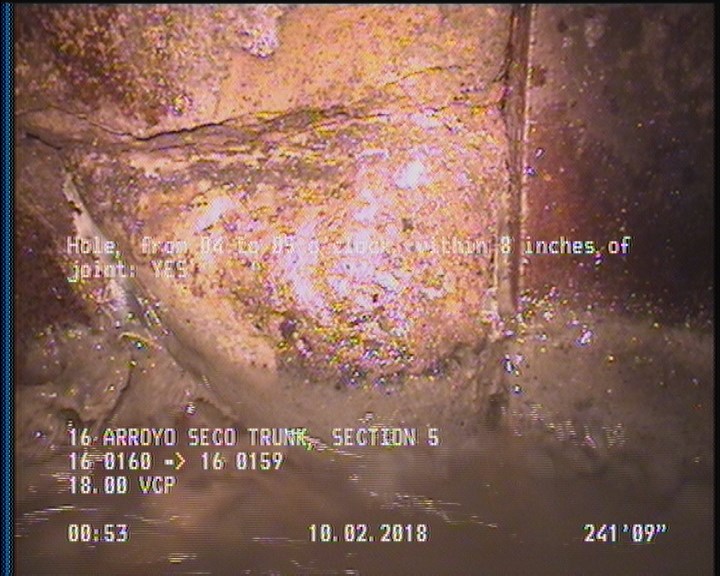

241.8 ft. - Hole, from 04 to 05 o'clock, within 8 inches of joint: YES

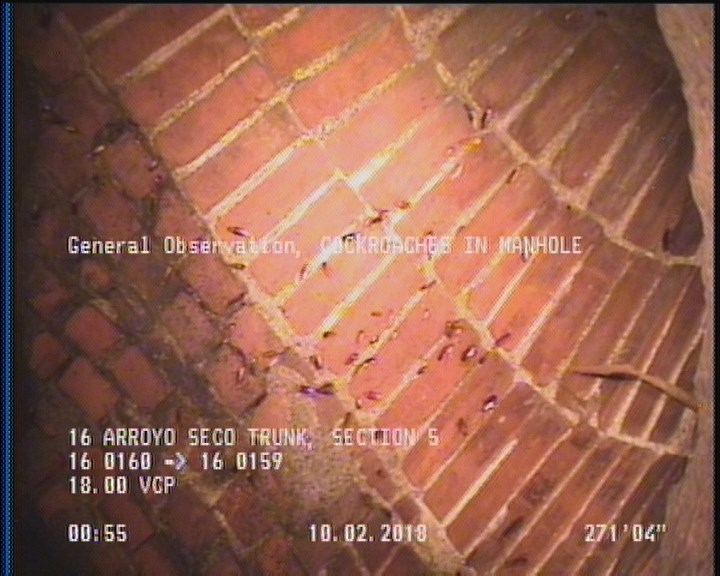

271.3 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 241.8 | FM | — |
| 0 | MWM | — |
| 271.3 | AMH | 16 0159 |
| 271.3 | DAGS | — |
| 2 | DAGS | — |
| 271.3 | MGO | COCKROACHES IN MANHOLE |
| 241.8 | H | — |
| 6.7 | CM | — |
| 271.3 | FM | — |
| 241.8 | CM | — |
| 0 | AMH | 16 0160 |
Properties (4)
- additional_info
- SC365117
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-10-02T00:43:54-07:00
