Wastewater/Activity/PacpInspection/1.0Oct 3, 2018, 08:39 AM
16 0171_16 0170_10032018_013940.mp4
- Date
- 10/03/2018
- W/O
- 729322
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00648
- PipeID
- P13203
- Time
- 1:39 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6055
- Sewer Name
- 16 ARROYO SECO TRUNK, SECTION 5
- City
- SOUTH PASADENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- RFIR_WO_729322_TV16111_OCT2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 16 in.
- Width
- 16 in.
- Upstream MH
- 16 0171
- Downstream MH
- 16 0170
- Dir. of Survey
- Downstream
- Length Surveyed
- 57.9 ft.
- Total Length
- 57.9 ft.
- Structural Index
- 3
- Structural Quick
- 3600
- Structural Rating
- 18
- O&M Index
- 2
- O&M Quick
- 2A00
- O&M Rating
- 22
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 40
Observation photos (5)

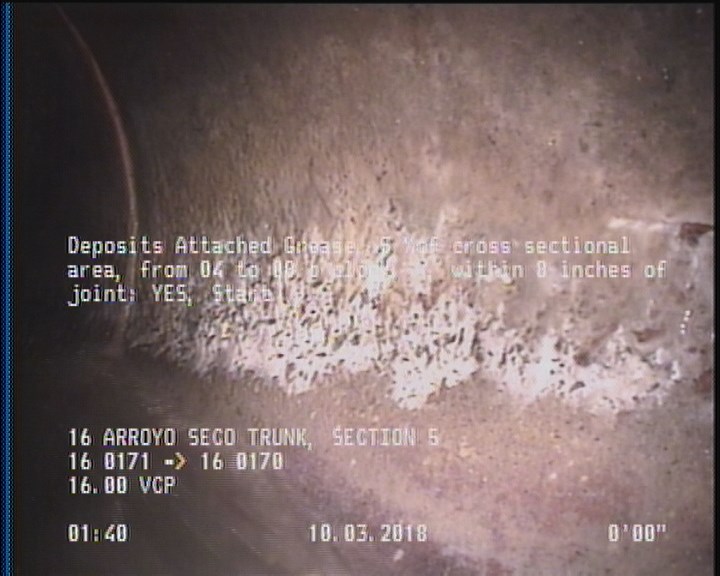

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

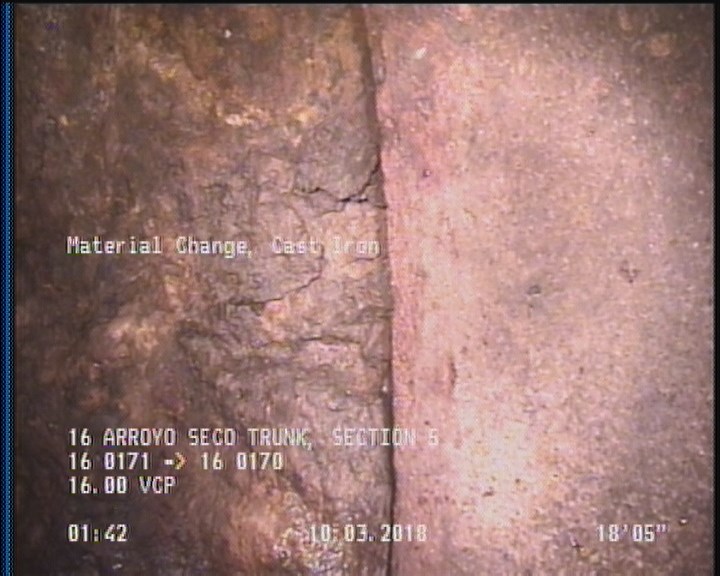

18.4 ft. - Material Change, Cast Iron

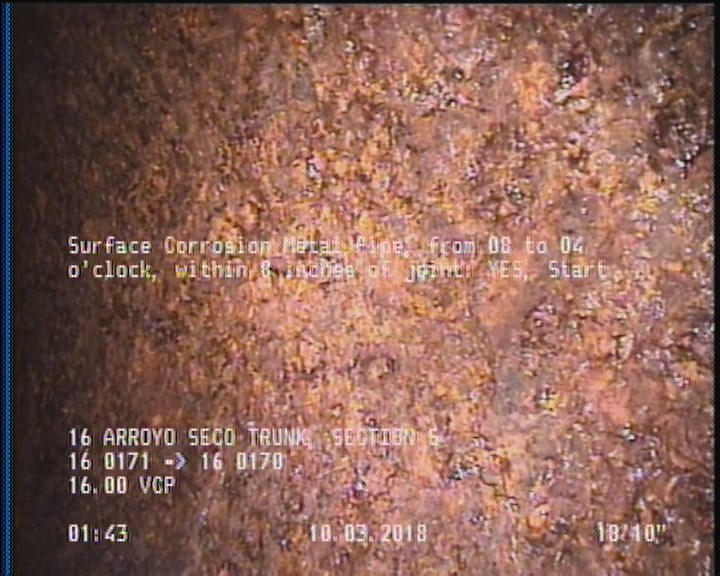

18.4 ft. - Surface Corrosion Metal Pipe, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

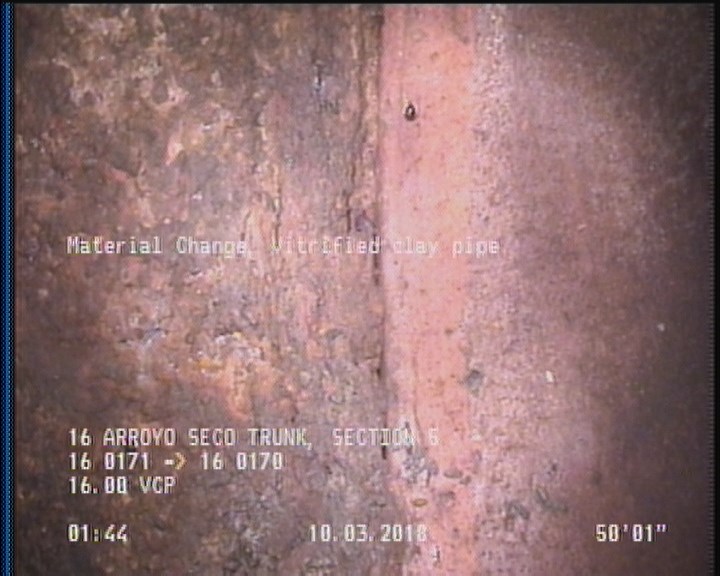

50.1 ft. - Material Change, Vitrified clay pipe

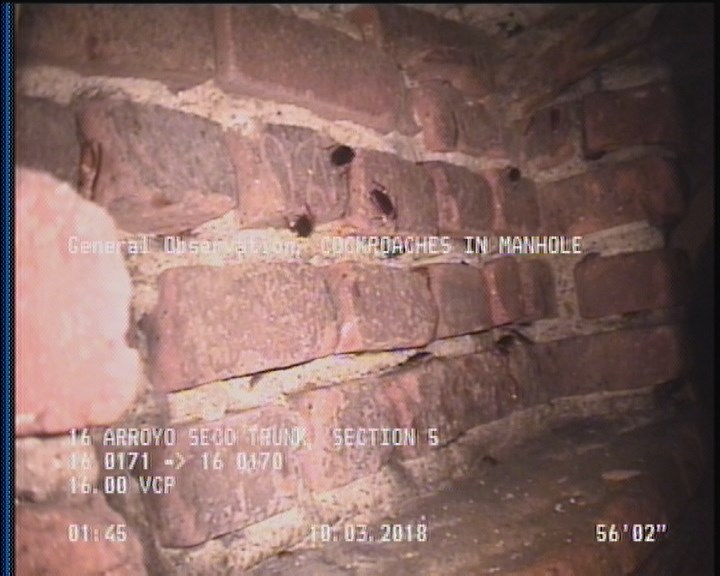

56.2 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 50.1 | SCP | — |
| 56.2 | DAGS | — |
| 57.9 | AMH | 16 0170 |
| 50.1 | MMC | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWL | — |
| 18.4 | MMC | — |
| 0 | AMH | 16 0171 |
| 56.2 | MGO | COCKROACHES IN MANHOLE |
| 0 | MWM | — |
| 18.4 | SCP | — |
Properties (4)
- additional_info
- SC365118
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-10-03T01:39:04-07:00
