Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Oct 2, 2018, 08:19 AM

  • 16 0158_16 0157_10022018_011957.mp4

Date
10/02/2018
W/O
729322
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00648
PipeID
P13190
Time
1:19 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6054
Sewer Name
16 ARROYO SECO TRUNK, SECTION 5
City
SOUTH PASADENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
20
Purpose
Routine Assessment
Project
RFIR_WO_729322_TV16111_OCT2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
16 0158
Downstream MH
16 0157
Dir. of Survey
Downstream
Length Surveyed
197.2 ft.
Total Length
197.2 ft.
Structural Index
3
Structural Quick
3G00
Structural Rating
114
O&M Index
2
O&M Quick
2G00
O&M Rating
78
Overall Index
2
Overall Quick
—
Overall Rating
192
Pipe schematic from manhole 16 0158 to 16 0157
MH: 16 0158MH: 16 0157downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 8 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 16 01582 ft. MGO - General Observation - COCKROACHES IN MANHOLE2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start4.2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start13.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"17.3 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"17.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"48.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"91.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"102.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"141.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"180.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"195.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish195.2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish197.2 ft. AMH - Downstream Manhole, Survey Ends - 16 0157

Observation photos (3)

  • General Observation - COCKROACHES IN MANHOLE

    2 ft. - General Observation - COCKROACHES IN MANHOLE

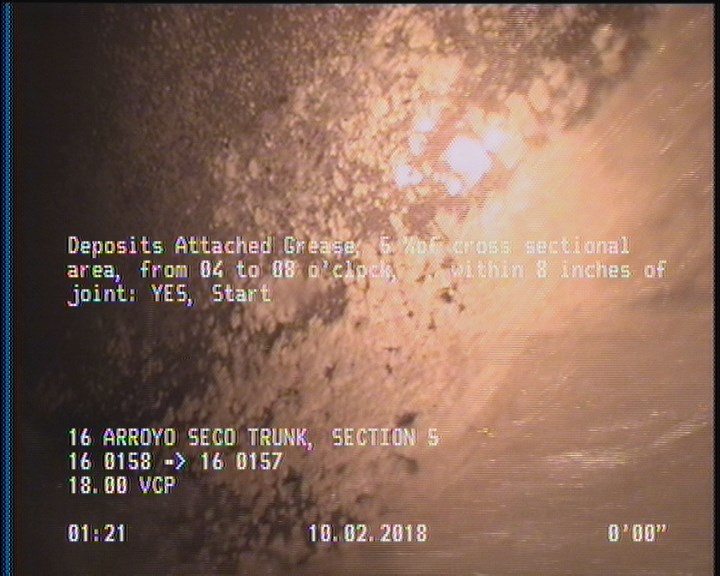

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

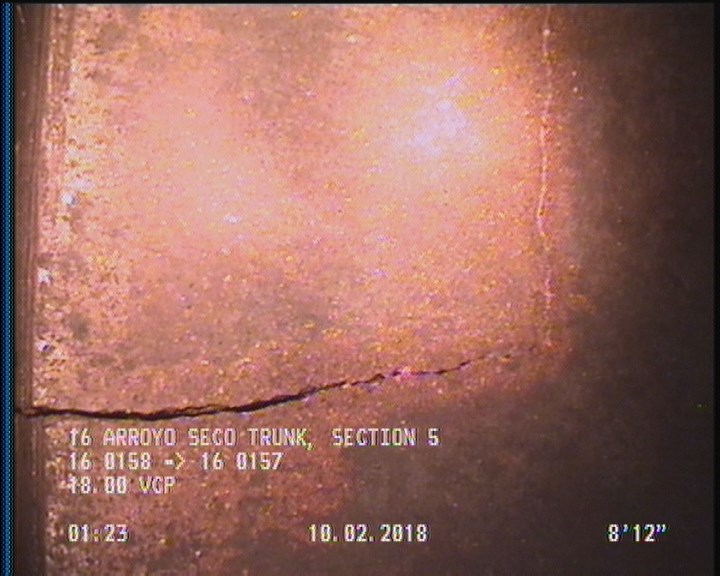

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    4.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P13190Work order 729322

Observations (18)

DistanceCodeObservation
0MWM—
195.2DAGS—
102.4TFC—
17.7TFC—
0MWL—
197.2AMH16 0157
4.2CM—
0MGOACTIVE CONNECTION AT MH 8 O'CLOCK
91.2TFC—
0AMH16 0158
17.3TBA—
180.4TFC—
48.7TFC—
2MGOCOCKROACHES IN MANHOLE
141.7TFC—
13.7TFA—
2DAGS—
195.2CM—

Properties (4)

additional_info
SC365117
custom_field_two
3
customer
LACSD
datetime
2018-10-02T01:19:30-07:00
