Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 21, 2018, 08:18 AM

  • 08 0679_08 0078_12212018_004258.mp4

Date
12/21/2018
W/O
O743258
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00016
PipeID
P00107
Time
12:18 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1087
Sewer Name
08 MAIN STREET TRUNK
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
02
Purpose
Capital Improvement Program Assesment
Project
20181221MDM_MAIN_STREET_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
08 0679
Downstream MH
08 0078
Dir. of Survey
Downstream
Length Surveyed
35.7 ft.
Total Length
35.7 ft.
Structural Index
3
Structural Quick
5231
Structural Rating
21
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
21
Pipe schematic from manhole 08 0679 to 08 0078
MH: 08 0679MH: 08 0078downstream0 ft. MWL - Water Level, 0 %of cross sectional area - NO FLOW0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:35AM0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active OUTGOING8.3 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SLIGHT8.3 ft. FC - Fracture Circumferential, from 05 to 07 o'clock, within 8 inches of joint: YES - HAIRLINE8.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, - HAIRLINE9.6 ft. BSV - Broken Soil Visible, at 12 o'clock, within 8 inches of joint: NO - 1" X 1" HOLE9.6 ft. BSV - Broken Soil Visible, at 12 o'clock, within 8 inches of joint: NO - 1" 1" HOLE23.7 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H29.9 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H35.2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active35.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN35.7 ft. AMH - Downstream Manhole, Survey Ends - 12:50AM

Observation photos (2)

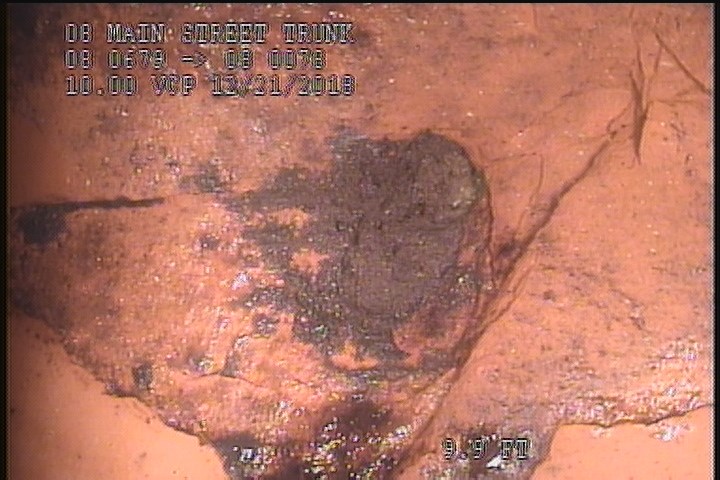

  • Broken Soil Visible, at 12 o'clock, within 8 inches of joint: NO - 1" 1" HOLE

    9.6 ft. - Broken Soil Visible, at 12 o'clock, within 8 inches of joint: NO - 1" 1" HOLE

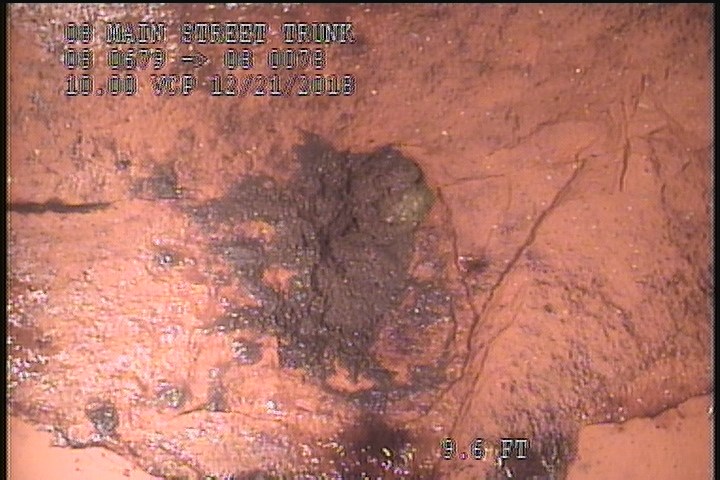

  • Downstream Manhole, Survey Ends - 12:50AM

    35.7 ft. - Downstream Manhole, Survey Ends - 12:50AM

All inspections of P00107Work order O743258

Observations (14)

DistanceCodeObservation
29.9FCH
0MWLNO FLOW
35.2MGOConn. @ Mh, 9 O' Clock. Active
0MWM—
35.7AMH12:50AM
8.7FLHAIRLINE
8.3FCSLIGHT
0AMH12:35AM
8.3FCHAIRLINE
35.2MGOConn. @ Mh, 3 O' Clock. OPEN
9.6BSV1" X 1" HOLE
0MGOConn. @ Mh, 3 O' Clock. Active OUTGOING
23.7FCH
9.6BSV1" 1" HOLE

Properties (4)

custom_field_three
1" X 1" HOLE SOIL VISIBLE AT 12:00
custom_field_two
2
customer
LACSD
datetime
2018-12-21T00:18:08-08:00
