Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 14, 2018, 11:17 AM

  • 02 1624_02 1623_14112018_031753.mp4

Date
11/14/2018
W/O
735169
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00235
PipeID
P04644
Time
3:17 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6222
Sewer Name
02 ATLANTIC AVENUE TRUNK
City
EAST LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Routine Assessment
Project
RFIR_WO_735169_TV02356_NOV2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1624
Downstream MH
02 1623
Dir. of Survey
Downstream
Length Surveyed
317.1 ft.
Total Length
317.1 ft.
Structural Index
3
Structural Quick
4D3G
Structural Rating
212
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
212
Pipe schematic from manhole 02 1624 to 02 1623
MH: 02 1624MH: 02 1623downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 16246.1 ft. FM - Fracture Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES7.2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start65.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start65.8 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish89.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"113.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"128.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish128.7 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start159.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"186.1 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish193.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start237.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"288.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"304.7 ft. FC - Fracture Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES317.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish317.1 ft. AMH - Downstream Manhole, Survey Ends - 02 1623

Observation photos (6)

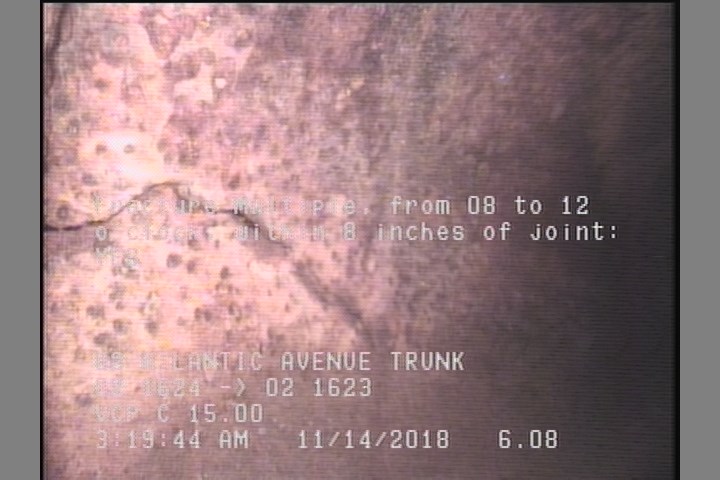

  • Fracture Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

    6.1 ft. - Fracture Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES

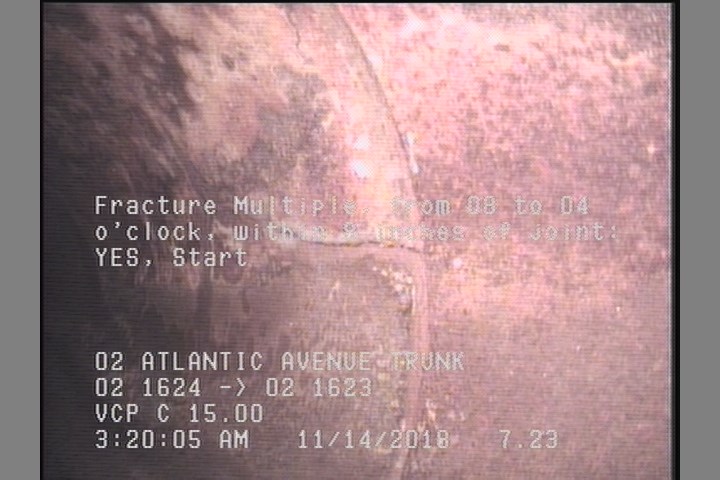

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    7.2 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

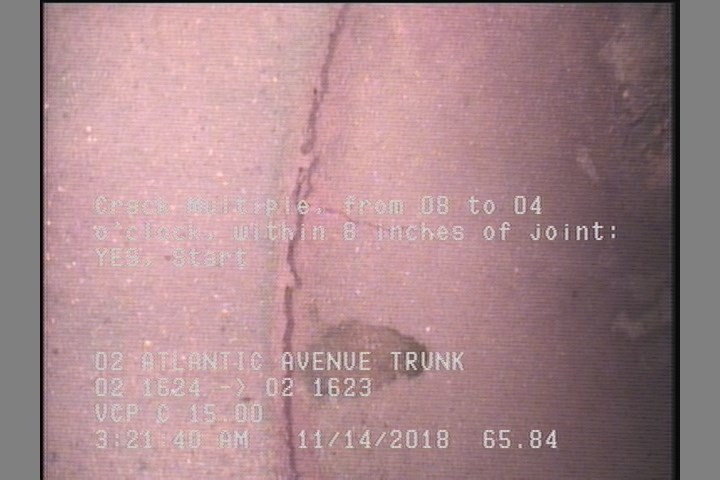

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    65.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

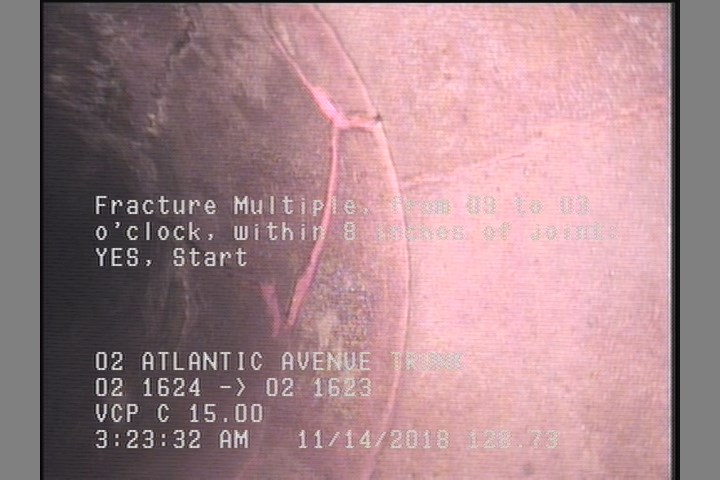

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    128.7 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

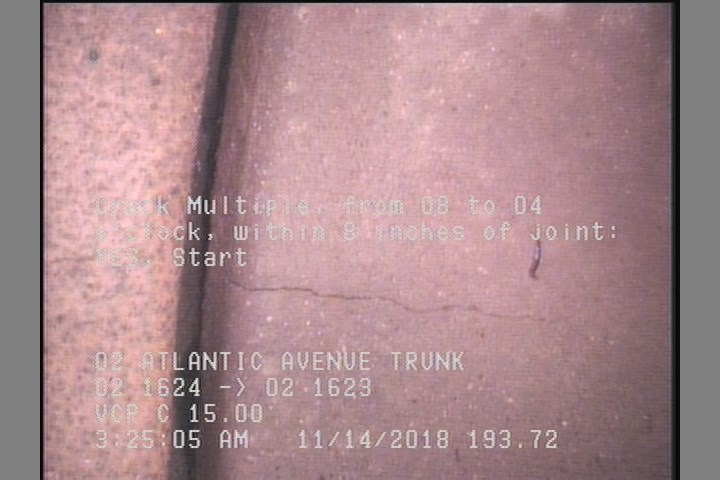

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    193.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

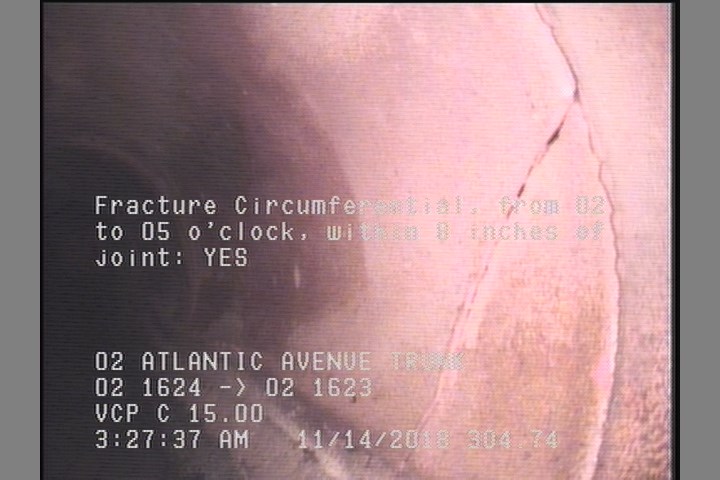

  • Fracture Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES

    304.7 ft. - Fracture Circumferential, from 02 to 05 o'clock, within 8 inches of joint: YES

All inspections of P04644Work order 735169

Observations (19)

DistanceCodeObservation
0MWL—
304.7FC—
128.7CM—
193.7CM—
65.8CM—
128.7FM—
186.1FM—
65.8FM—
317.1CM—
113.5TF—
0MWM—
6.1FM—
7.2FM—
288.9TF—
317.1AMH02 1623
237.5TF—
89.8TF—
159.1TF—
0AMH02 1624

Properties (4)

additional_info
SC365250
custom_field_two
2
customer
LACSD
datetime
2018-11-14T03:17:45-08:00
