Wastewater/Activity/PacpInspection/1.0Nov 29, 2018, 07:05 AM
J 0032A_J 0032 _28112018_230614.mp4
- Date
- 11/28/2018
- W/O
- 735035
- Weather
- Light Rain
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00061
- PipeID
- P11609
- Time
- 11:05 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6236
- Sewer Name
- J JOINT OUTFALL J - UNIT 2B
- City
- LOMITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- RFIR_WO_735035_TV05231_NOV2018
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 51 in.
- Width
- 51 in.
- Upstream MH
- J 0032A
- Downstream MH
- J 0032
- Dir. of Survey
- Downstream
- Length Surveyed
- 11.6 ft.
- Total Length
- 11.6 ft.
- Structural Index
- 4
- Structural Quick
- 5232
- Structural Rating
- 16
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 16
Observation photos (3)

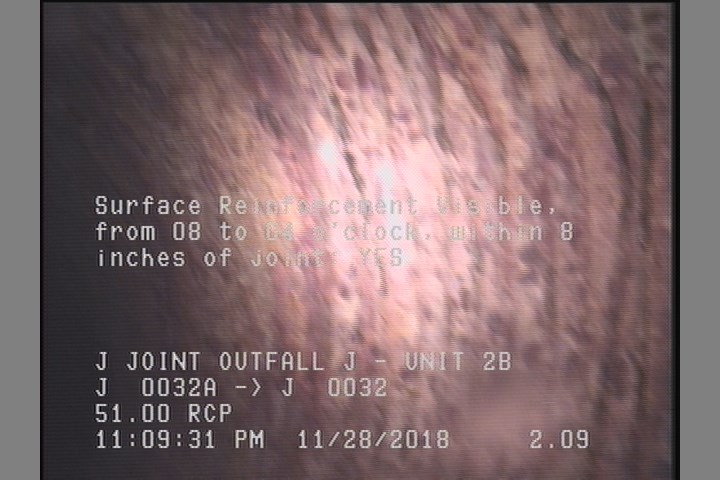

2.1 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

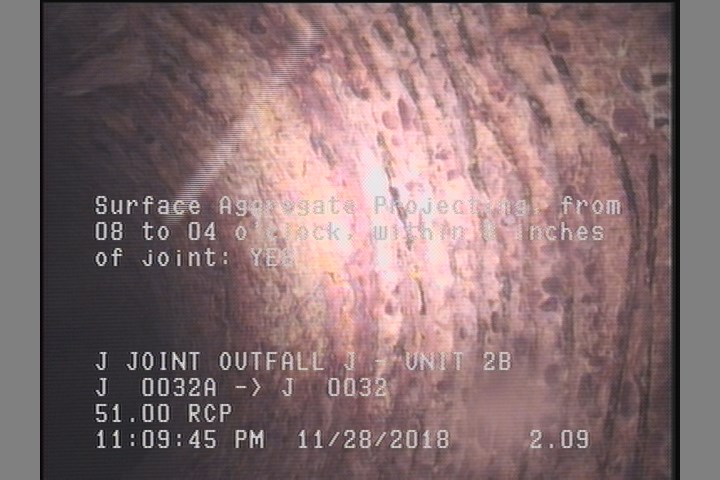

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

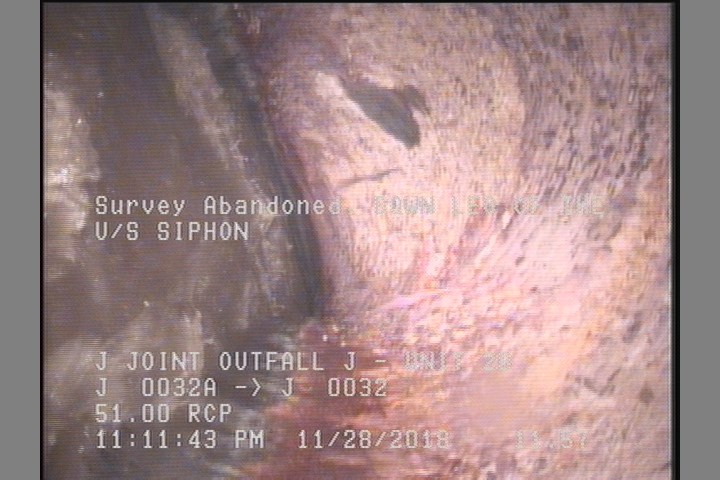

11.6 ft. - Survey Abandoned - DOWN LEG OF THE U/S SIPHON
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 11.6 | MSA | DOWN LEG OF THE U/S SIPHON |
| 11.6 | SRV | — |
| 2.1 | SRV | — |
| 2.1 | SAP | — |
| 11.6 | SAP | — |
| 0 | MWL | — |
| 0 | AMH | J 0032A |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC365464
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-11-28T23:05:45-08:00
- year_laid
- 36539
