Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 8, 2018, 09:49 AM

  • 05 1336_05 1335 _08112018_014958.mp4

Date
11/08/2018
W/O
735012
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00444
PipeID
P06552
Time
1:49 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6214
Sewer Name
05 GARDENA PUMP TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Routine Assessment
Project
RFIR_WO_735012_TV05295_NOV2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
05 1336
Downstream MH
05 1335
Dir. of Survey
Downstream
Length Surveyed
333.6 ft.
Total Length
333.6 ft.
Structural Index
3
Structural Quick
3L21
Structural Rating
200
O&M Index
2
O&M Quick
2G00
O&M Rating
84
Overall Index
3
Overall Quick
—
Overall Rating
284
Pipe schematic from manhole 05 1336 to 05 1335
MH: 05 1336MH: 05 1335downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 13363.4 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start3.4 ft. MGO - General Observation - MAG COAT123 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start157.3 ft. FC - Fracture Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES333.6 ft. MGO - General Observation - CONNECTION AT MH 12 O'CLOCK333.6 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish333.6 ft. AMH - Downstream Manhole, Survey Ends - 05 1335333.6 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish

Observation photos (3)

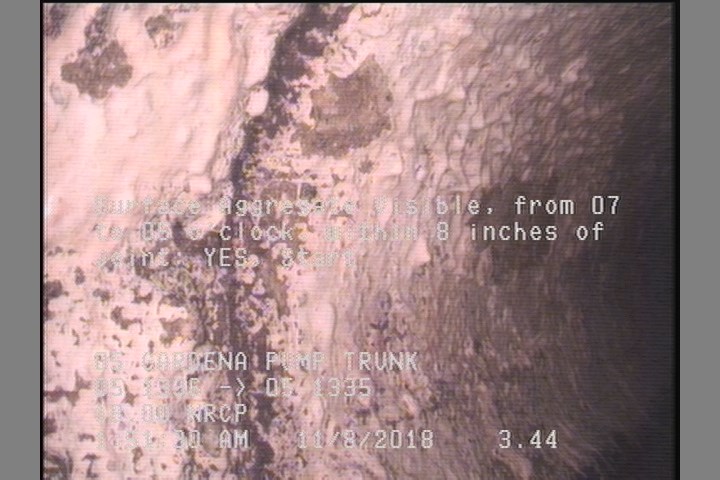

  • Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    3.4 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

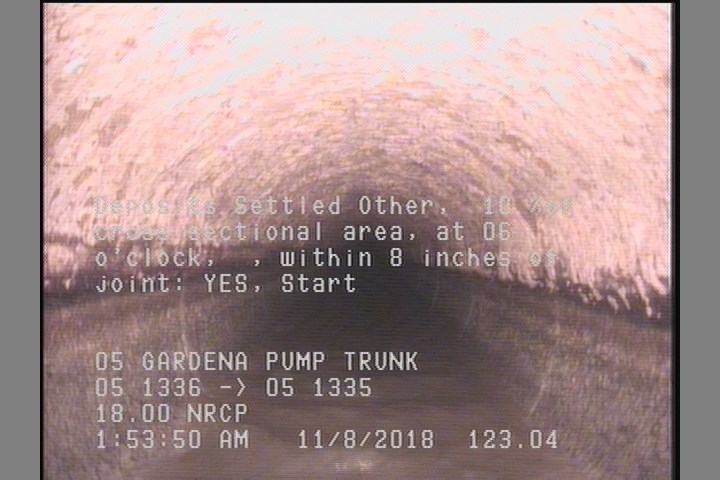

  • Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

    123 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

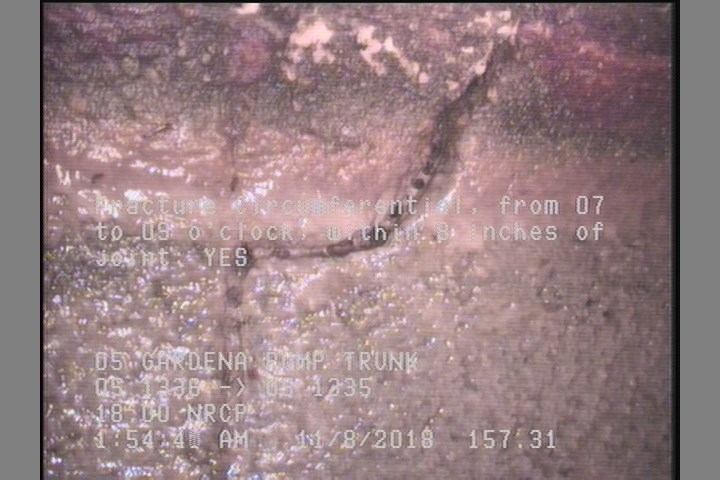

  • Fracture Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES

    157.3 ft. - Fracture Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES

All inspections of P06552Work order 735012

Observations (11)

DistanceCodeObservation
3.4SAV—
333.6MGOCONNECTION AT MH 12 O'CLOCK
0MWL—
333.6DSZ—
0MWM—
0AMH05 1336
333.6AMH05 1335
333.6SAV—
157.3FC—
123DSZ—
3.4MGOMAG COAT

Properties (4)

additional_info
SC365242
custom_field_two
3
customer
LACSD
datetime
2018-11-08T01:49:51-08:00
