Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 8, 2018, 08:24 AM

  • 05 1343_05 1342_08112018_002534.mp4

Date
11/08/2018
W/O
735012
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00444
PipeID
P06560
Time
12:24 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6214
Sewer Name
05 GARDENA PUMP TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Routine Assessment
Project
RFIR_WO_735012_TV05295_NOV2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 1342
Downstream MH
05 1343
Dir. of Survey
Upstream
Length Surveyed
127.8 ft.
Total Length
127.8 ft.
Structural Index
3
Structural Quick
3D21
Structural Rating
77
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
77
Pipe schematic from manhole 05 1342 to 05 1343
MH: 05 1342MH: 05 1343upstream0 ft. AMH - Upstream Manhole, Survey Ends - 05 13430.1 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish0.1 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK30.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES46.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"69.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"83.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"95.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"118.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"125.7 ft. MGO - General Observation - MAG COAT125.7 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start127.8 ft. MWM - Water Mark, 15 %of cross sectional area127.8 ft. AMH - Downstream Manhole, Survey Begins - 05 1342127.8 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (2)

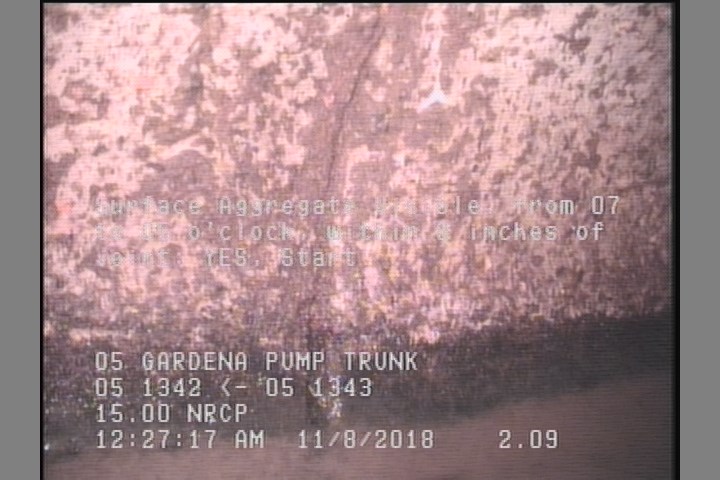

  • Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

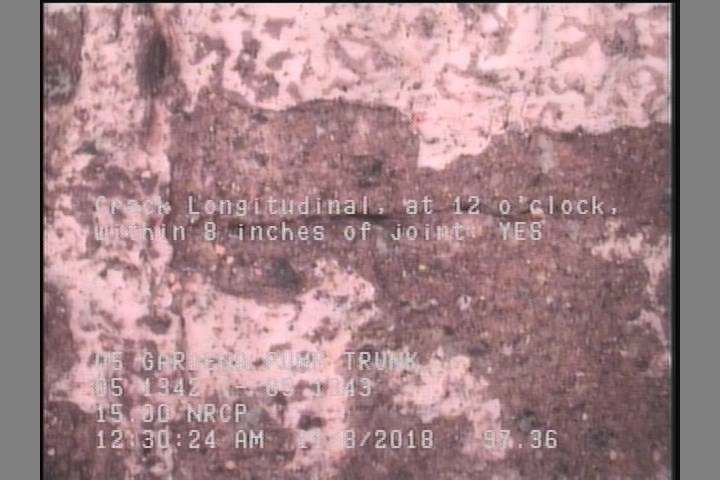

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    97.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

All inspections of P06560Work order 735012

Observations (14)

DistanceCodeObservation
127.8AMH05 1343
81.4TFC—
2.1MGOMAG COAT
97.4CL—
0MWM—
0AMH05 1342
9.4TFC—
127.7SAV—
44.2TF—
58.1TFC—
32.1TFC—
127.7MGOCONNECTION AT MH 3 O'CLOCK
0MWL—
2.1SAV—

Properties (4)

additional_info
SC365242
custom_field_two
3
customer
LACSD
datetime
2018-11-08T00:24:39-08:00
