Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 6, 2018, 11:46 AM

  • 05 1359_05 1410 _06112018_034656.mp4

Date
11/06/2018
W/O
735012
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00444
PipeID
P06576
Time
3:46 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6210
Sewer Name
05 GARDENA PUMP TRUNK
City
GARDENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Routine Assessment
Project
RFIR_WO_735012_TV05295_NOV2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 1359
Downstream MH
05 1410
Dir. of Survey
Downstream
Length Surveyed
437.8 ft.
Total Length
437.8 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2D12
O&M Rating
52
Overall Index
2
Overall Quick
—
Overall Rating
55
Pipe schematic from manhole 05 1359 to 05 1410
MH: 05 1359MH: 05 1410downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 05 13592.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start4.6 ft. MGO - General Observation - MAG COAT4.6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"101.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"154.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"205.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"253.3 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES253.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"304.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"307.1 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"310.3 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start355.5 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"390.2 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES410 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"433 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish437.8 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK437.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish437.8 ft. AMH - Downstream Manhole, Survey Ends - 05 1410

Observation photos (4)

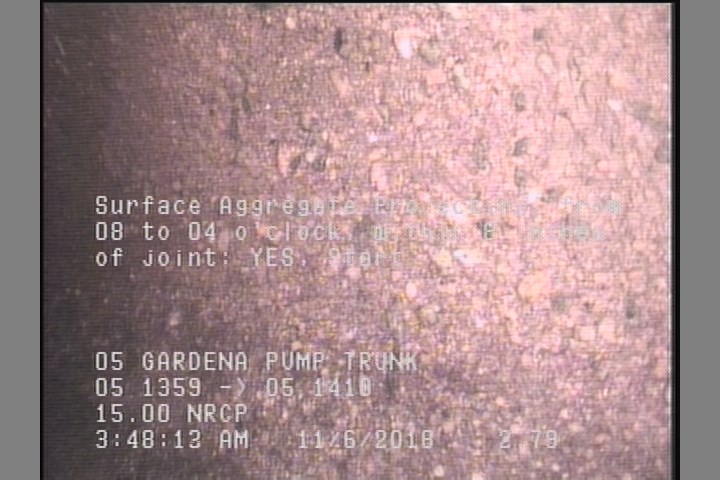

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.8 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

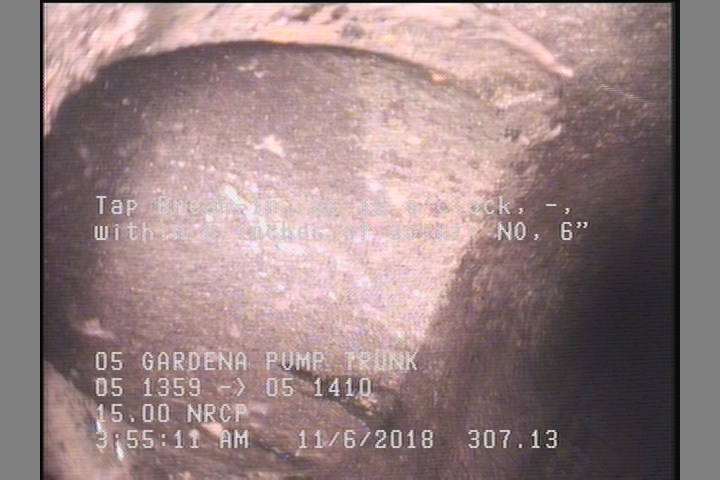

  • Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"

    307.1 ft. - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: NO, 6"

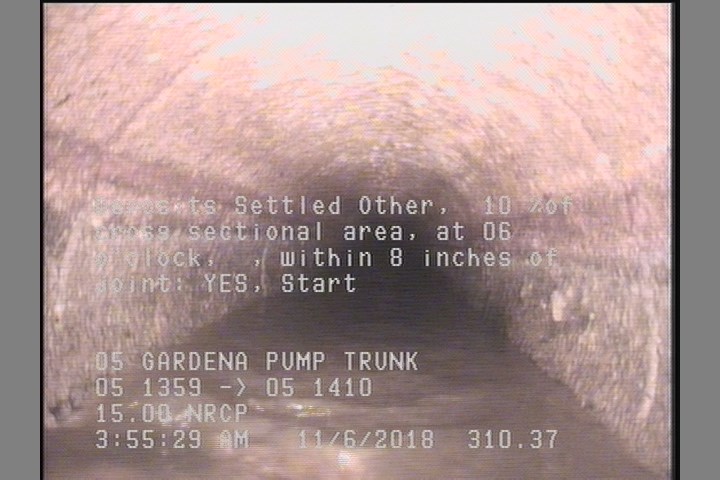

  • Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

    310.3 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

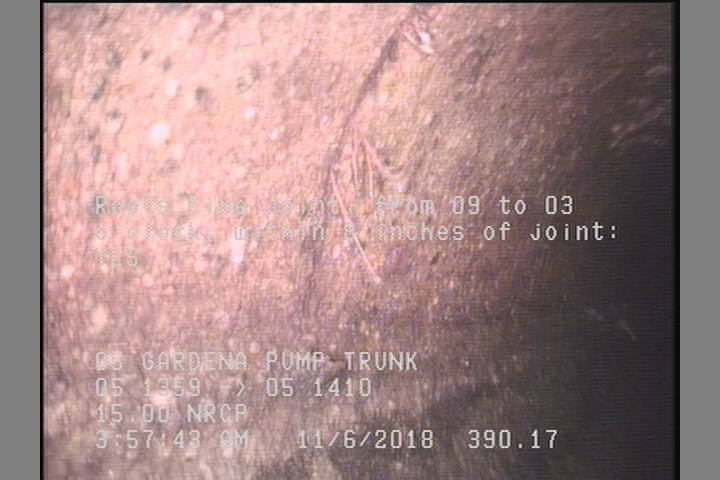

  • Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES

    390.2 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P06576Work order 735012

Observations (22)

DistanceCodeObservation
437.8MGOCONNECTION AT MH 9 O'CLOCK
437.8SAP—
0MWL—
355.5TFA—
0MWM—
253.3RFJ—
0MGOCONNECTION AT MH 9 O'CLOCK
205.3TF—
154.4TF—
410TF—
433DSZ—
304.1TF—
253.4TF—
310.3DSZ—
4.6MGOMAG COAT
4.6TF—
101.7TF—
0AMH05 1359
437.8AMH05 1410
390.2RFJ—
307.1TB—
2.8SAP—

Properties (4)

additional_info
SC365238
custom_field_two
2
customer
LACSD
datetime
2018-11-06T03:46:54-08:00
