Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 8, 2018, 09:03 AM

  • 05 1341_05 1340_08112018_010335.mp4

Date
11/08/2018
W/O
735012
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00444
PipeID
P06558
Time
1:03 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6214
Sewer Name
05 GARDENA PUMP TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Routine Assessment
Project
RFIR_WO_735012_TV05295_NOV2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 1341
Downstream MH
05 1340
Dir. of Survey
Downstream
Length Surveyed
368.5 ft.
Total Length
368.5 ft.
Structural Index
3
Structural Quick
3N00
Structural Rating
219
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
219
Pipe schematic from manhole 05 1341 to 05 1340
MH: 05 1341MH: 05 1340downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 13413.6 ft. MGO - General Observation - MAG COAT3.6 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start5.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"54.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"103.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"135.1 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES151.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"200.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"249 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"300.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"351.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"363.2 ft. MMC - Material Change, Polyvinyl Chloride (PVC)363.2 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish368.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"368.5 ft. AOC - Drop Connection, Survey Ends - 05 1340

Observation photos (3)

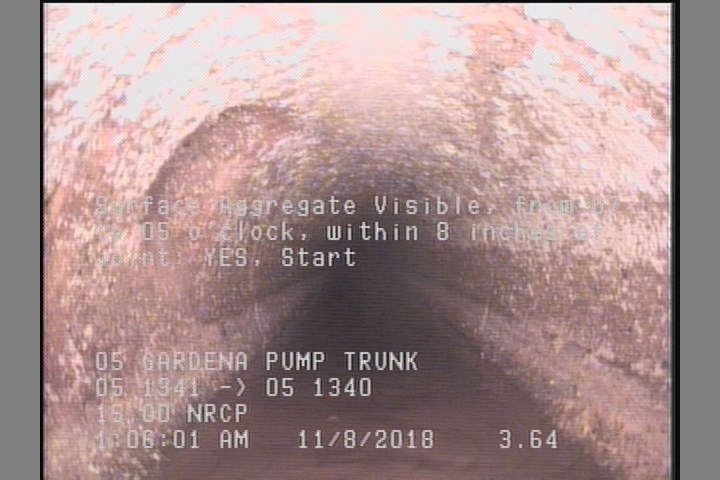

  • Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    3.6 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

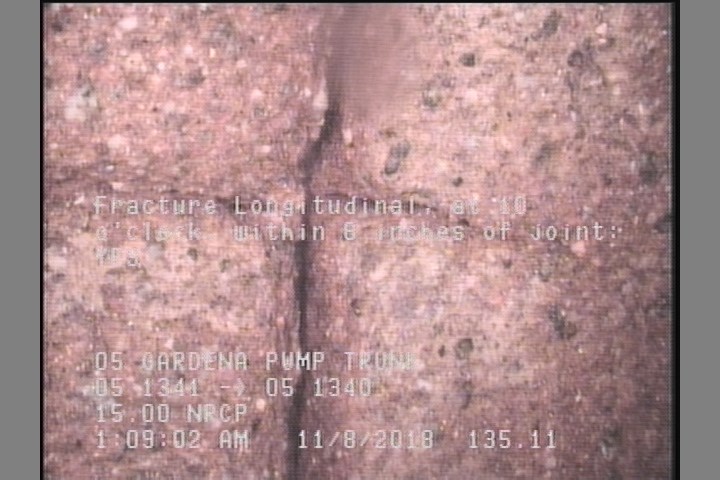

  • Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    135.1 ft. - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES

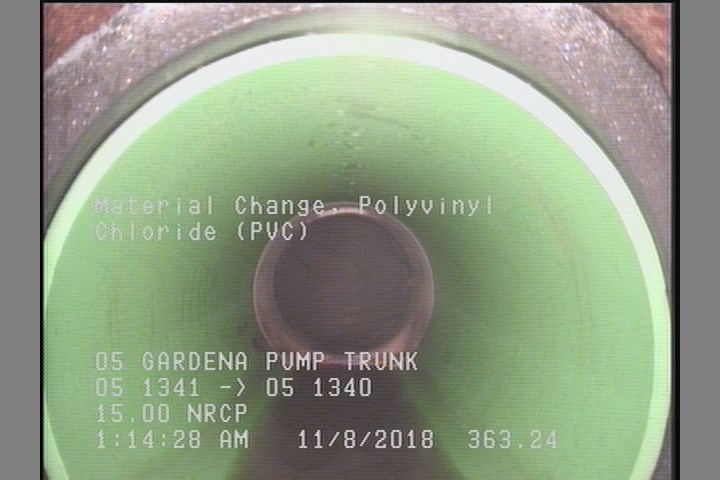

  • Material Change, Polyvinyl Chloride (PVC)

    363.2 ft. - Material Change, Polyvinyl Chloride (PVC)

All inspections of P06558Work order 735012

Observations (18)

DistanceCodeObservation
135.1FL—
103.3TFC—
368.5AOC05 1340
0MWL—
0MWM—
249TFC—
363.2MMC—
3.6MGOMAG COAT
351.8TFC—
300.6TFC—
200.7TFC—
151.8TFC—
0AMH05 1341
363.2SAV—
5.5TF—
3.6SAV—
54.4TF—
368.4TF—

Properties (4)

additional_info
SC365242
custom_field_two
3
customer
LACSD
datetime
2018-11-08T01:03:28-08:00
