Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 8, 2018, 11:06 AM

  • 05 1332_05 1331 _08112018_030641.mp4

Date
11/08/2018
W/O
735012
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00444
PipeID
P06548
Time
3:06 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6214
Sewer Name
05 GARDENA PUMP TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Routine Assessment
Project
RFIR_WO_735012_TV05295_NOV2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
05 1332
Downstream MH
05 1331
Dir. of Survey
Downstream
Length Surveyed
331.3 ft.
Total Length
331.3 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
195
O&M Index
3
O&M Quick
3R21
O&M Rating
293
Overall Index
3
Overall Quick
—
Overall Rating
488
Pipe schematic from manhole 05 1332 to 05 1331
MH: 05 1332MH: 05 1331downstream0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 13320 ft. MWL - Water Level, 20 %of cross sectional area3.7 ft. MGO - General Observation - MAG COAT3.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start13.1 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: NO, 6"13.6 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start138.8 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 11 to 12 o'clock, , within 8 inches of joint: YES156 ft. ID - Infiltration Dripper, at 12 o'clock, within 8 inches of joint: NO162.1 ft. ID - Infiltration Dripper, from 08 to 04 o'clock, within 8 inches of joint: YES, Start329.6 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish329.6 ft. ID - Infiltration Dripper, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish329.6 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish331.3 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK331.3 ft. AMH - Downstream Manhole, Survey Ends - 05 1331

Observation photos (5)

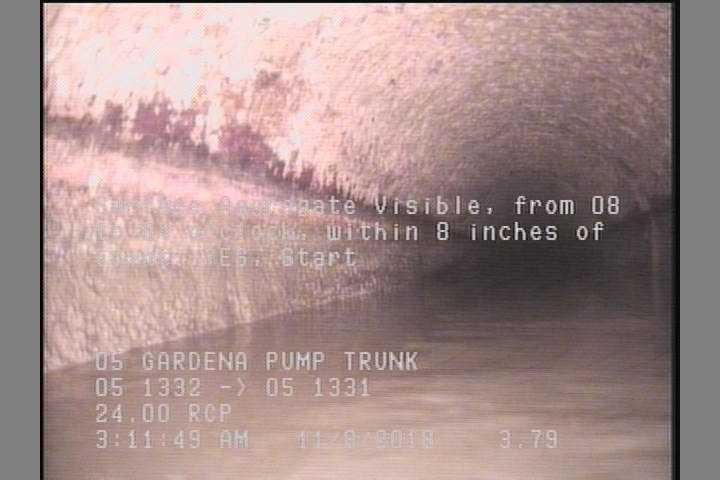

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.8 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

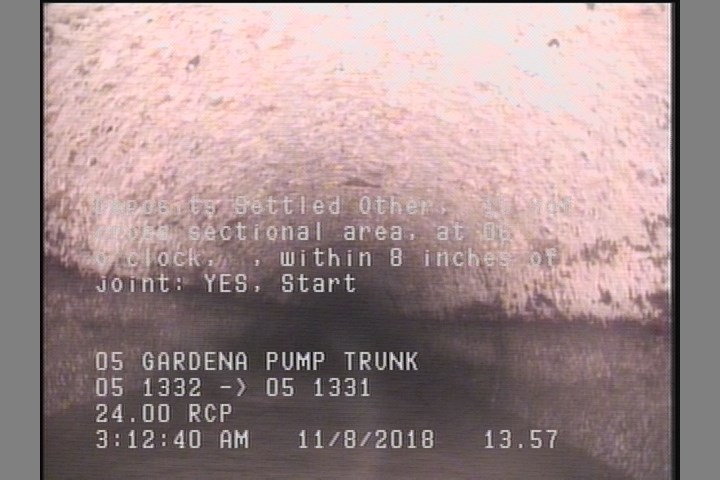

  • Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

    13.6 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

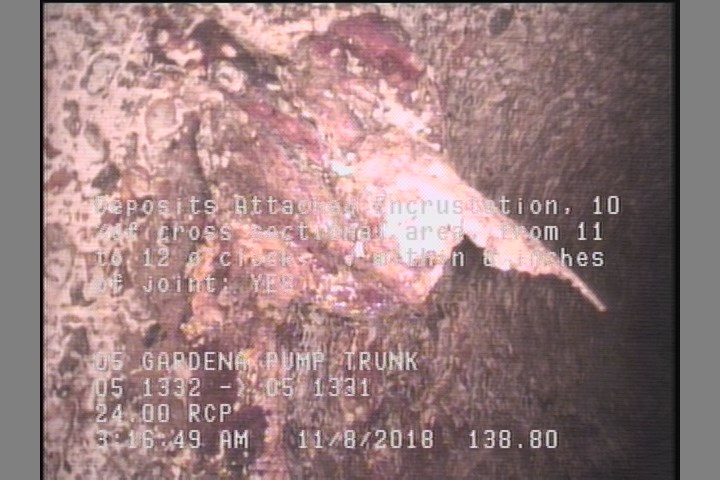

  • Deposits Attached Encrustation, 10 %of cross sectional area, from 11 to 12 o'clock, , within 8 inches of joint: YES

    138.8 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 11 to 12 o'clock, , within 8 inches of joint: YES

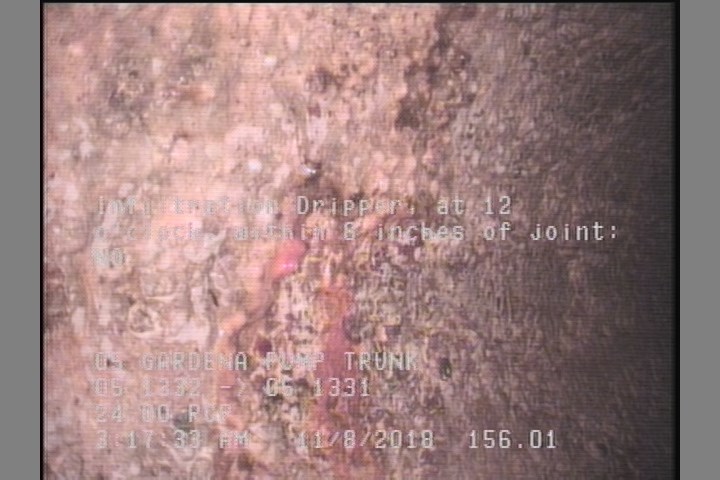

  • Infiltration Dripper, at 12 o'clock, within 8 inches of joint: NO

    156 ft. - Infiltration Dripper, at 12 o'clock, within 8 inches of joint: NO

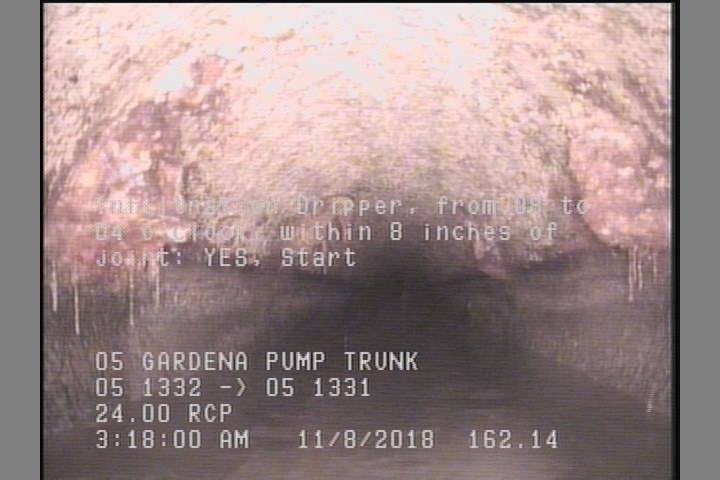

  • Infiltration Dripper, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    162.1 ft. - Infiltration Dripper, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P06548Work order 735012

Observations (15)

DistanceCodeObservation
0MWM—
162.1ID—
329.6DSZ—
3.7MGOMAG COAT
138.8DAE—
13.6DSZ—
3.8SAV—
0AMH05 1332
331.3MGOCONNECTION AT MH 3 O'CLOCK
329.6ID—
13.1TF—
0MWL—
329.6SAV—
156ID—
331.3AMH05 1331

Properties (4)

additional_info
SC365242
custom_field_two
3
customer
LACSD
datetime
2018-11-08T03:06:34-08:00
