Wastewater/Activity/PacpInspection/1.0Nov 8, 2018, 10:58 AM
05 1332A_05 1332_08112018_025849.mp4
- Date
- 11/08/2018
- W/O
- 735012
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00444
- PipeID
- P06549
- Time
- 2:58 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6214
- Sewer Name
- 05 GARDENA PUMP TRUNK
- City
- GARDENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 21
- Purpose
- Routine Assessment
- Project
- RFIR_WO_735012_TV05295_NOV2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 05 1332A
- Downstream MH
- 05 1332
- Dir. of Survey
- Downstream
- Length Surveyed
- 160.3 ft.
- Total Length
- 160.3 ft.
- Structural Index
- 3
- Structural Quick
- 3E00
- Structural Rating
- 93
- O&M Index
- 3
- O&M Quick
- 3B00
- O&M Rating
- 39
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 132
Observation photos (3)

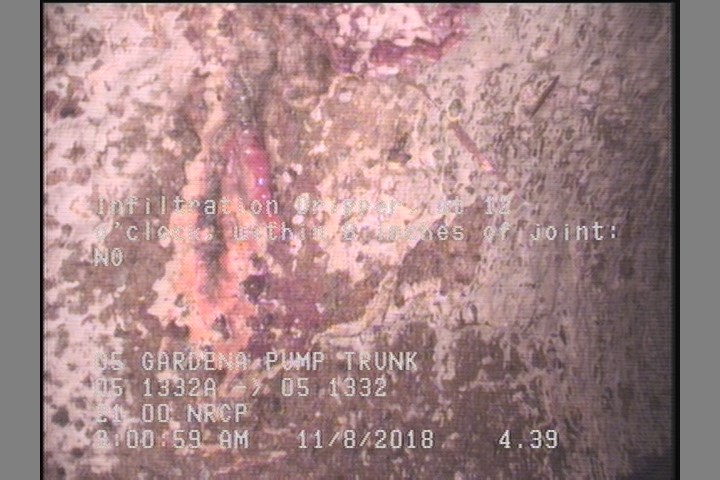

4.4 ft. - Infiltration Dripper, at 12 o'clock, within 8 inches of joint: NO

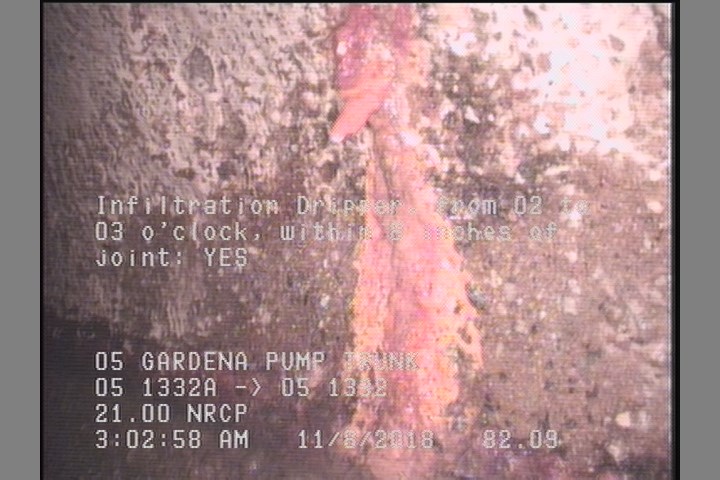

82.1 ft. - Infiltration Dripper, from 02 to 03 o'clock, within 8 inches of joint: YES

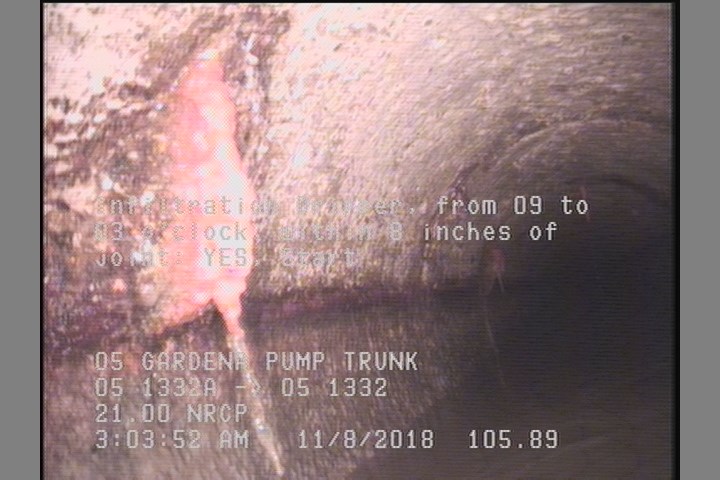

105.9 ft. - Infiltration Dripper, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 160.2 | ID | — |
| 160.3 | AMH | 05 1332 |
| 101.1 | TF | — |
| 160.2 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 105.9 | ID | — |
| 3.4 | MGO | MAG COAT |
| 3.5 | SAV | — |
| 82.1 | ID | — |
| 0 | MWL | — |
| 160.3 | MGO | CAPPED LATERAL 9 O'CLOCK @ MH |
| 0 | MWM | — |
| 0 | AMH | 05 1332A |
| 160.2 | SAV | — |
| 4.4 | ID | — |
Properties (4)
- additional_info
- SC365242
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-11-08T02:58:45-08:00
