Wastewater/Activity/PacpInspection/1.0Nov 27, 2018, 11:04 AM
02 0164_02 0163 _27112018_030447.mp4
- Date
- 11/27/2018
- W/O
- 735002
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00251
- PipeID
- P02467
- Time
- 3:04 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6231
- Sewer Name
- 02 DOWNEY-BELLFLOWER TRUNK
- City
- BELLFLOWER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- RFIR_WO_735002_TV02327_NOV2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 02 0164
- Downstream MH
- 02 0163
- Dir. of Survey
- Downstream
- Length Surveyed
- 330.5 ft.
- Total Length
- 330.5 ft.
- Structural Index
- 3
- Structural Quick
- 3K21
- Structural Rating
- 188
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 128
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 316
Observation photos (3)

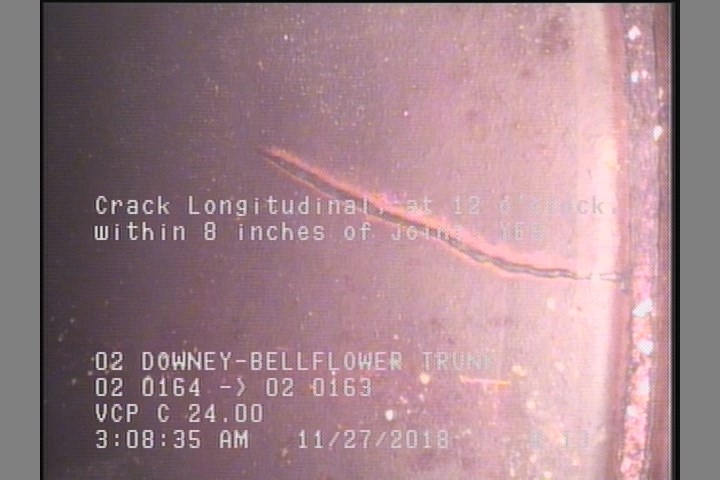

8.1 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

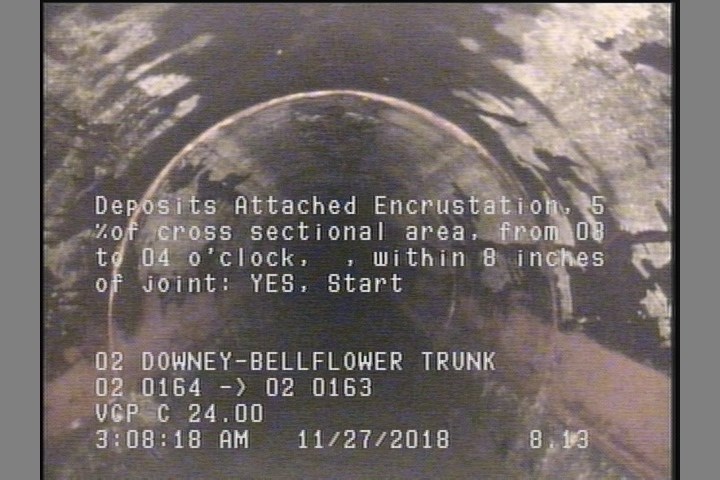

8.1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

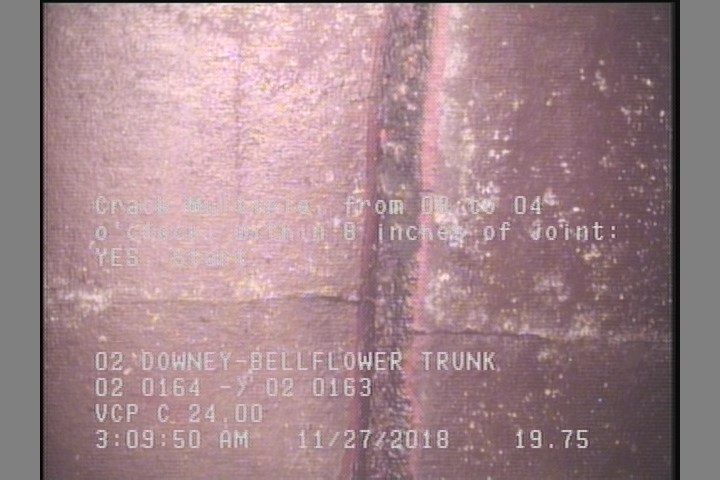

19.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (20)
| Distance | Code | Observation |
|---|---|---|
| 330.5 | MGO | CAPPED LATERAL 3 O'CLOCK @ MH |
| 330.5 | DAE | — |
| 161.2 | TFC | — |
| 330.5 | MGO | CAPPED LATERAL 9 O'CLOCK @ MH |
| 106.4 | TF | — |
| 0 | MWM | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 160.4 | TFC | — |
| 330.5 | AMH | 02 0163 |
| 330.5 | CM | — |
| 8.1 | CL | — |
| 0 | AMH | 02 0164 |
| 178.6 | TFC | — |
| 0 | MWL | — |
| 8.1 | DAE | — |
| 103.7 | TF | — |
| 220.1 | TF | — |
| 216.1 | TF | — |
| 19.7 | CM | — |
| 246 | TFC | — |
Properties (4)
- additional_info
- SC365459
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-11-27T03:04:22-08:00
