Wastewater/Activity/PacpInspection/1.0Nov 29, 2018, 08:39 AM
03 0413_03 0412 _29112018_003910.mp4
- Date
- 11/29/2018
- W/O
- 735097
- Weather
- Light Rain
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00373
- PipeID
- P05175
- Time
- 12:39 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6237
- Sewer Name
- 03 MARINA TRUNK, SECTION 4
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- RFIR_WO_735097_TV03163_NOV2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 03 0413
- Downstream MH
- 03 0412
- Dir. of Survey
- Downstream
- Length Surveyed
- 297.3 ft.
- Total Length
- 297.3 ft.
- Structural Index
- 3
- Structural Quick
- 4B3H
- Structural Rating
- 197
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 197
Observation photos (4)

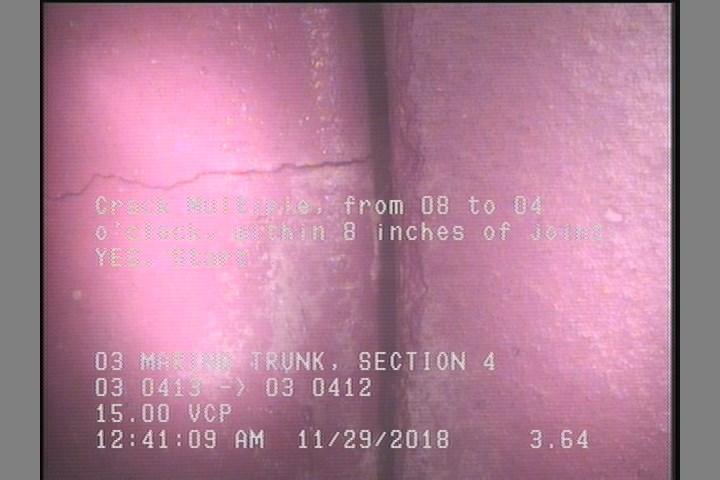

3.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

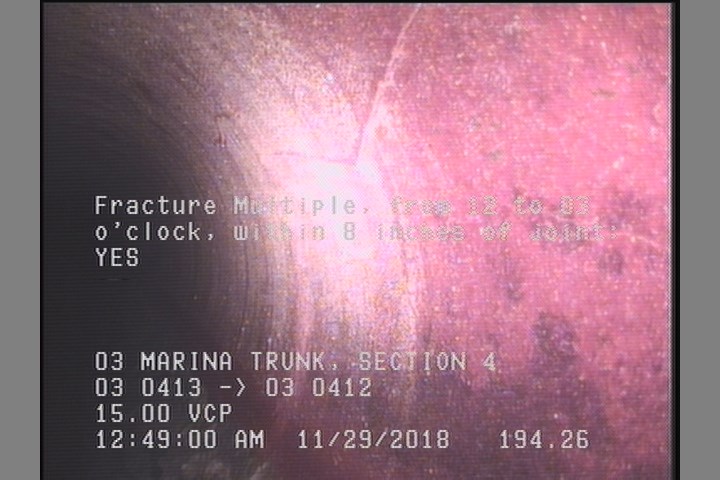

194.3 ft. - Fracture Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES

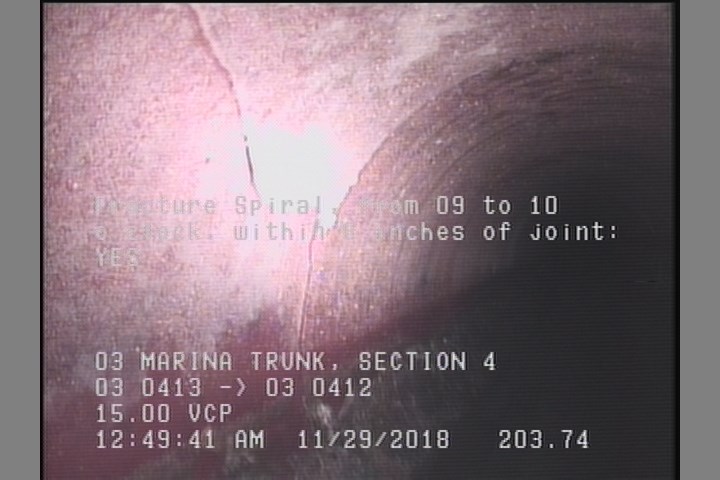

203.7 ft. - Fracture Spiral, from 09 to 10 o'clock, within 8 inches of joint: YES

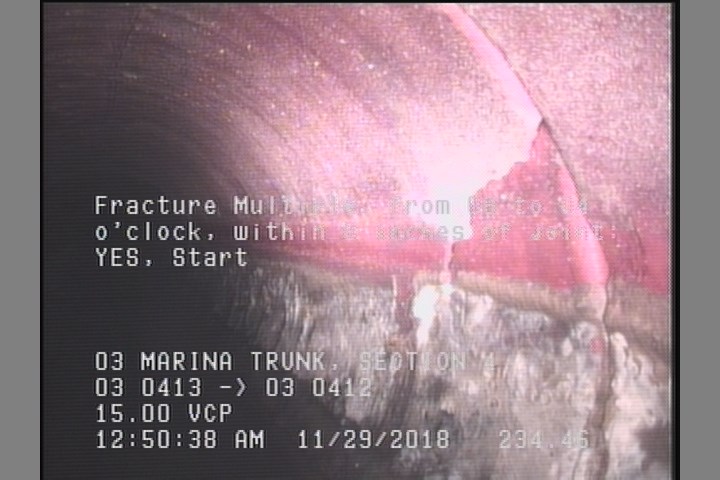

234.5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 297.3 | MGO | CAPPED LATERAL 9 O'CLOCK @ MH |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 194.3 | FM | — |
| 0 | MWM | — |
| 203.7 | FS | — |
| 234.5 | CM | — |
| 297.3 | FM | — |
| 3.6 | CM | — |
| 0 | MWL | — |
| 149.8 | TF | — |
| 145.6 | TFC | — |
| 0 | AMH | 03 0413 |
| 234.5 | FM | — |
| 297.3 | AMH | 03 0412 |
Properties (4)
- additional_info
- SC365465
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-11-29T00:39:06-08:00
